Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Larger Vertical Internal Broaching Machine

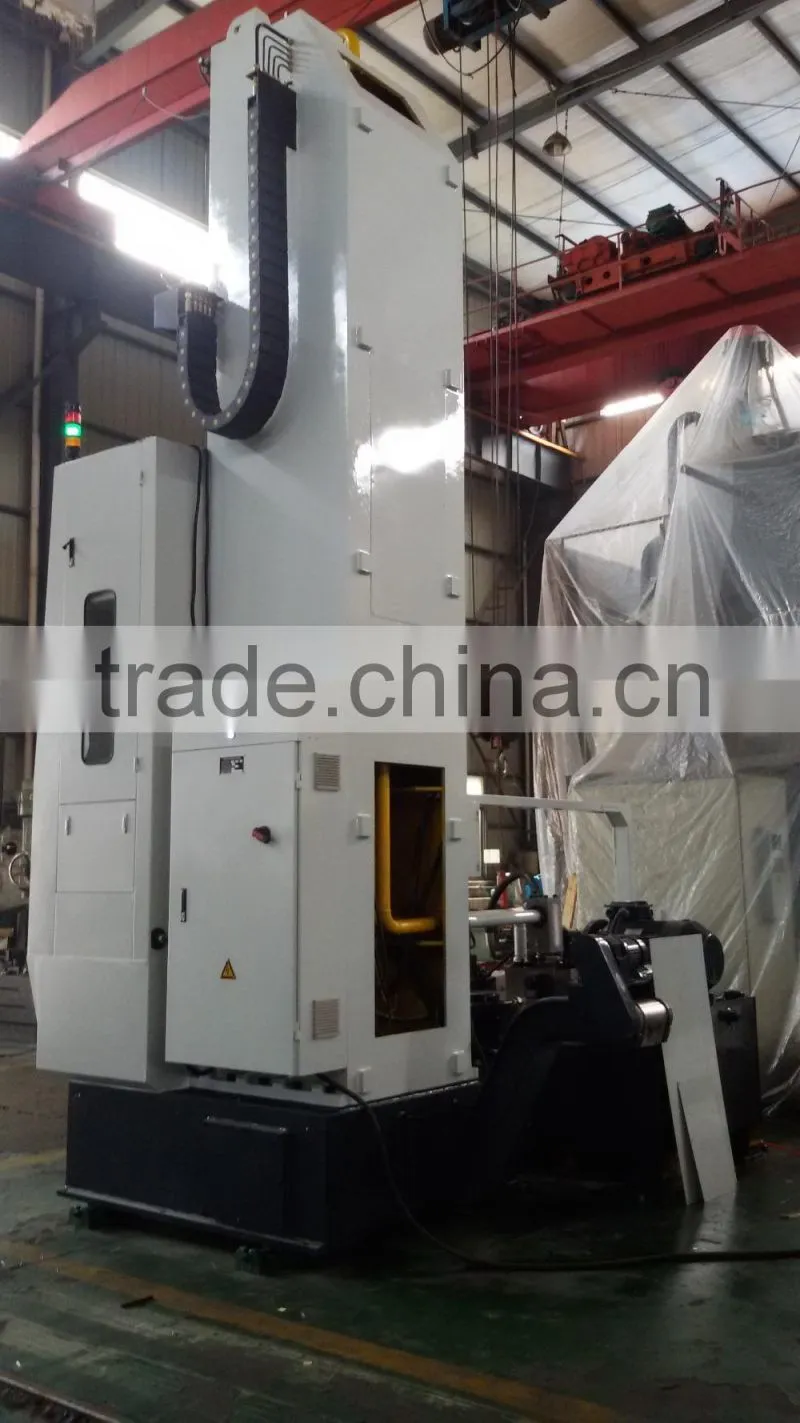

Larger Vertical Internal Broaching Machine

Larger Vertical Internal Broaching Machine photo-1

Larger Vertical Internal Broaching Machine photo-2

US$ 126,229 - 194,758 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Liaoning, China

Brand Name:

LFM

Model Number:

L5720, L5140F

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Liaoning, China

Brand Name LFM

Model Number L5720, L5140F

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Hydraulic Vertical Internal Broacher

Specifications	Unit	L5720	L5140F
Rated pulling capacity	kN	200	400
Nominal working stroke	mm	1600	2000
Working stroke speed(stepless)	m/min	2~10	2~7.5
Return stroke main sliding plate speed of main sliding plate (stepless)	m/min	2~20	3~18
Speed of tools(to main sliding board)	m/min	1~5	1~5
Pushing speed of pushing tool (to main sliding board)	m/min	1~5	1~5
Worktable size(lengthxwidth)	mm	430×380	690×480
Max. size of workpiece(ODxWidth)	mm	Φ280×90	Φ520×150
Hole diameter of worktable	mm	φ200	φ250
The aperture of the faceplate	mm	Φ100 H7	Φ150H7
Max. length of tool	mm	1700	2200
Min. length of tool	mm	600	800
Distance from tool to surface of main slidingboard	mm	210	264
Distance from tools to sub-sliding board	mm	111	129.5
Operation height	mm	≤1100	≤900
Distance from end face of toolshank to worktable surface	mm	200	330
Axial piston pump for main drive		A145-F-R-04	A3H180-FR14K
Displacement	ml/r	145	180
Max. working pressure	MPa	16	16
Rotated working pressure	MPa	11	11
Main motor		Y200L-4-B35	Y225M-4-B35
The main motor power	kW	30	45
Main motor rotational speed	r/min	1470	1480
Motor pump package for sub system		SVPF-40-70(4P-3HP)	SVPF-40-70(4P-3HP)
Max. working pressure	MPa	6	6
Rotated working pressure	MPa	4	4
Power of sub-motor	kW	2.2	2.2
Speed of sub-motor	r/min	1420	1420
coolant pump		QLY6-45×5 -A	QLY6-45×5 -A
Lift of coolant pump	m	45	45
Cooling pump flow	m3/h	6	6
Cooling pump power	kW	2.2	2.2
Rotational speed cooling pump	r/min	2840	2840
Power of lub pump	W	100	100
Flow amount of lub pump	ml/min	150	150
volume of lub pump	L	3	3
ZLYC1 7U Magneto chi p conveyor ZLYC1 7U power	W	200	200
Total capacity of main motor	kW	36	55
Overall dimension(LxWxH)	mm	3000×3700×5000	3900×3143×6700
Net weight machine	kg	13000	21000
