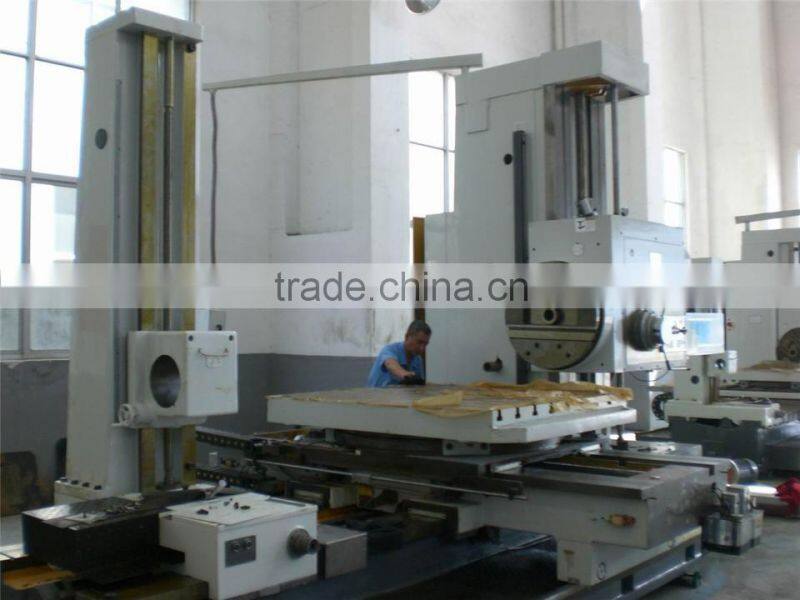

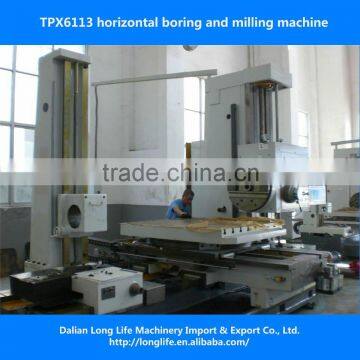

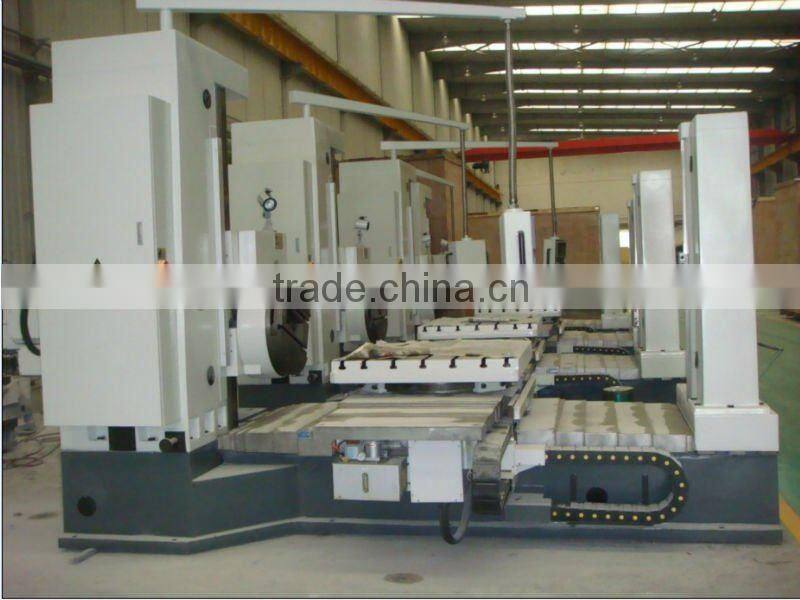

TPX6113 Manual horizontal boring and milling machine
Such horizontal boring and milling machine has following features:
TPX6113 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes. The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type parts.
Specifications |
Unit |
Parameter |
Spindle bore diameter |
mm |
Φ130 |
Spindle taper |
mm |
80 |
Max, spindle torque |
Nm |
3136 |
Max. spindle axial thrust |
N |
31360 |
Steps of spindle speed |
|
24 |
Range of spindle speed |
r/min |
4~800 |
Power of main motor |
kW |
15 |
Max. facing head torque |
Nm |
4900 |
Facing head diameter |
mm |
Φ750 |
Range of facing head speed |
r/min |
2.5~125 |
Speed step of facing head speed |
|
18 |
Table size |
mm |
1600 x1400 |
Max. permissible load on table |
kg |
8500 |
T- slot |
mm |
28 |
Number of T-slot |
|
10 |
X- axis travel |
mm |
1600 |
Y - axis travel |
mm |
1500 |
Z - axis travel |
mm |
1500 |
W- axis travel (Spindle travel) |
mm |
900 |
U - axis travel (facing head spindle travel) |
|
250 |
B - axis work table rotary |
|
360 |
Min. distance between spindle center and table surface |
mm |
0 |
Rapid travel (X/Y/Z/W) |
mm/min |
2500 |
Range of feed per spindle revolution (X/Y/Z/W) |
mm/rev |
0.05~8/0.01~2 |
Linear measurement accuracy |
mm |
0.005 |
B - axis measurement accuracy |
|
0.001 |
Overall dimensions (L*W*H) |
mm |
6995x3730x3535 |
Weight of machine |
kg |
24500 |
