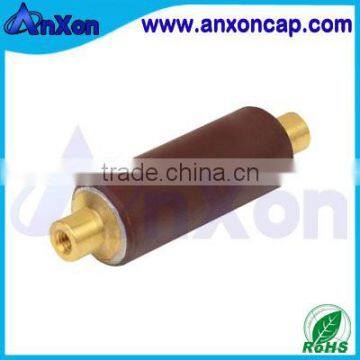

Product Name: 10KV 125PF AC live line ceramic capacitor
High Voltage Ceramic Capacitor 10KV 125PF, Molded type Ultra-high Voltage Ceramic Capacitors 10KVAC, 10KVrms high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: |
10KV 125PF |
AnXon P/N |
AXCHV10P125KAB |
Tolerance: |
K, ±10% |
Type: |
Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : |
Y5P |
Operating Temperature: |
-30C ~ 85C |
Size / Dimension(ΦD×T*H): |
D:12mm, H:160mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. |
Rated Spec |
Testing voltage |
Partial discharge |
Dissipation factor |
Dimension(mm) |
||
kVdc |
kV/1min |
|
1kHz/1V |
D |
H |
M |
|
AXCHV10DL251KDB |
10KV 250PF |
DC15KV AC10KV |
AC5KV<5PC |
≤0.1% |
20 |
16 |
M4X4 |
AXCHV10DL441KDB |
10KV 440PF |
20 |
20 |
M4X4 |
|||
AXCHV10DL561KDB |
10KV 560PF |
20 |
20 |
M4X4 |
|||
AXCHV10DL122KDB |
10KV 1200PF |
24 |
20 |
M4X4 |
|||
AXCHV10DL282KDB |
10KV 2800PF |
38 |
20 |
M4X4 |
|||
AXCHV10DL502KDB |
10KV 5000PF |
52 |
20 |
M5X4 |
|||
AXCHV10DL802KDB |
10KV 8000PF |
58 |
20 |
M5X4 |
|||
AXCHV10DL103KDB |
10KV 10000PF |
80 |
20 |
M5X4 |
|||
AXCHV10DL203KDB |
10KV 20000PF |
80 |
20 |
M5X4 |
|||
HV Capacitor Application Guide
