Help CenterPad Mounted Transformer With Low-Loss Core for Enhanced Wind and Solar System Efficiency
Product Spotlights
Related Products
-
Combined Pad Mounted Transformer for Hybrid Wind-Solar Plants With MV/LV ProtectionUS$ 1200 - 3100MOQ: 1 Unit -
Wind and Solar Power Pad Mounted Transformer Featuring IP67 Enclosure and Remote MonitoringUS$ 1200 - 3100MOQ: 1 Unit
-
500-2500kVA Pad Mounted Combined Transformer for Renewable Energy Grid IntegrationUS$ 1200 - 3100MOQ: 1 Unit
-
Pad Mounted Wind-Solar System Transformer With 5-Year Warranty and Technical SupportUS$ 1200 - 3100MOQ: 1 Unit
-
Pad Mounted Transformer for Wind and Solar Power Systems With SCADA InterfaceUS$ 1200 - 3100MOQ: 1 Unit
As a dedicated manufacturer of electrical equipment, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing robust and efficient solutions for modern power distribution challenges. Our Pad Mounted Transformer with a Low-Loss Core is engineered specifically to enhance the operational efficiency and reliability of wind and solar power generation systems. By integrating advanced core materials and optimized design, this transformer minimizes energy losses during the conversion and transmission process, ensuring that more of the valuable renewable energy you produce reaches the grid or end-users. This commitment to efficiency aligns with our company's ethos of delivering high-quality, reliable products that support the global transition to sustainable energy, backed by our ISO9001-certified manufacturing processes and extensive export experience to markets worldwide.
This transformer is a critical component in renewable energy projects, where maximizing output and minimizing parasitic losses are paramount for economic viability. The core of its performance lies in the specialized low-loss magnetic core material.
- Advanced Core Technology: Utilizing either amorphous metal or high-grade, low-loss silicon steel, the core significantly reduces no-load losses (iron losses) compared to conventional designs. This is especially beneficial for transformers in renewable applications, which may experience variable loading patterns.
- Enhanced Efficiency Across Load Range: The design optimizes full-load and partial-load efficiency. Even during periods of lower wind or solar output, the transformer maintains high efficiency, preventing wasteful energy dissipation.
- Robust Construction for Outdoor Durability: The pad-mounted configuration is built for direct outdoor installation at generation sites. The tank is constructed from durable, corrosion-resistant materials, and the entire unit is sealed to protect against moisture, dust, and environmental contaminants.
- Thermal Management: An efficient ONAN (Oil Natural Air Natural) cooling system ensures stable operation under varying ambient temperatures, crucial for locations with extreme weather conditions.
- Grid Compatibility and Protection: The transformer is designed to seamlessly interface with both the generation side and the distribution grid. Optional features like advanced surge protection and monitoring sensors (voltage, temperature, etc.) can be integrated for enhanced system protection and remote management.
The tangible benefits for your wind or solar project are clear:
- Increased Energy Yield: Lower core losses translate directly into higher net energy delivered, improving the return on investment for your renewable asset.
- Reduced Operational Costs: Lower losses mean less energy is wasted as heat, potentially reducing cooling requirements and contributing to lower lifetime operating expenses.
- Improved System Reliability: The durable construction and stable thermal performance reduce the risk of failures, ensuring consistent power delivery and minimizing maintenance interventions.
- Long Service Life: High-quality materials and conservative design margins contribute to an extended operational lifespan, protecting your long-term capital investment.

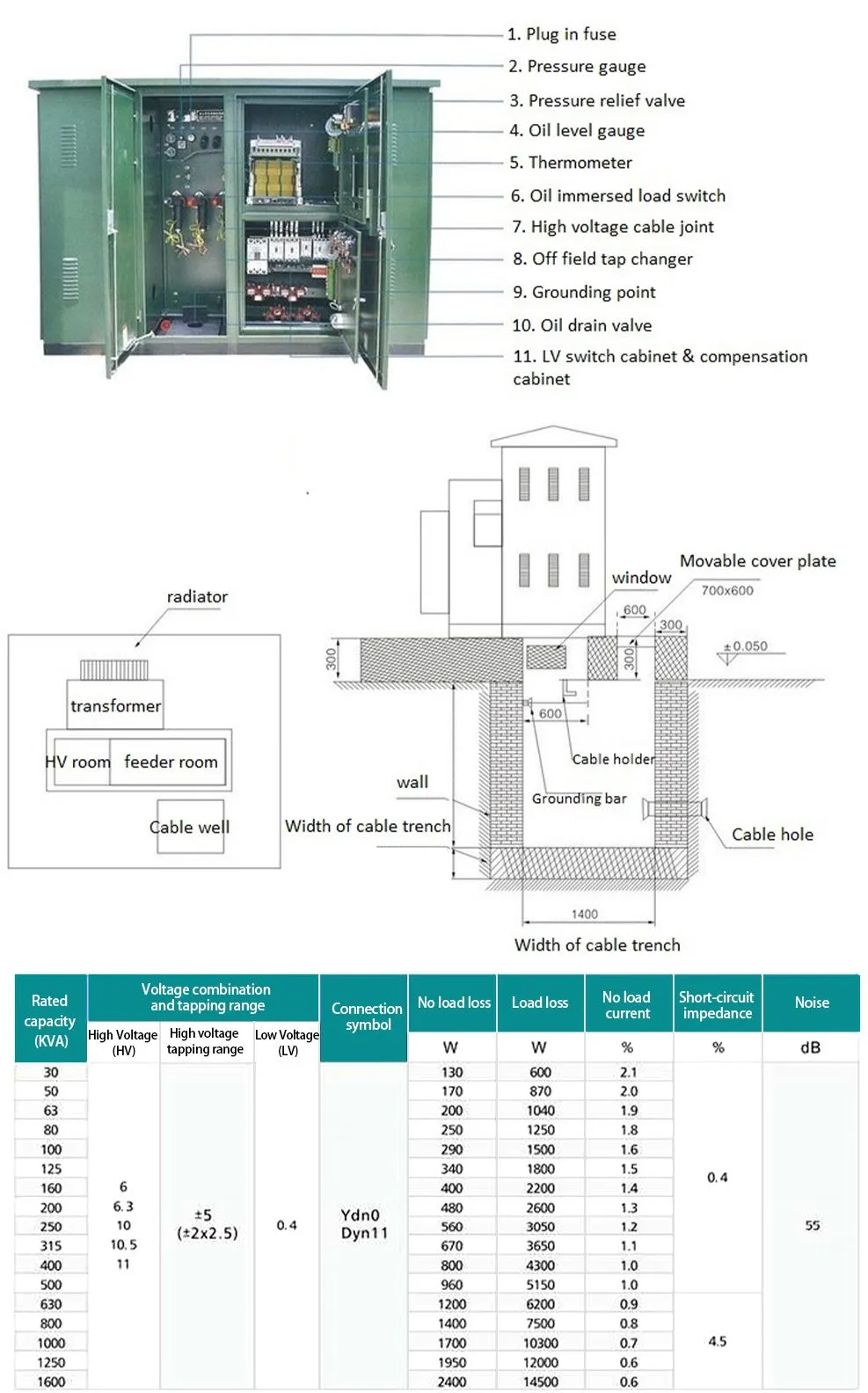

Below is a summary of typical key specifications. Please note that specific ratings are customizable based on your project requirements.
| Parameter | Typical Specification / Range |
|---|---|
| Rated Capacity | 100 kVA - 5000 kVA |
| High Voltage Rating | Up to 35 kV (or project-specific) |
| Low Voltage Rating | 0.4 kV, 0.48 kV, or other distribution voltages |
| No-load Loss (P0) | Significantly reduced vs. standard cores (exact value depends on capacity) |
| Load Loss (Pk) | Optimized design for low full-load losses |
| Cooling Method | ONAN (Oil Natural Air Natural) |
| Insulation Level | High-temperature class for reliable performance |
| Installation Type | Pad-mounted, outdoor |
Jinhua Dika Electrical Equipment Co., Ltd. brings not only innovative product design but also solid manufacturing credibility to your procurement decision. Our operations are certified under the ISO9001 Quality Management System, ensuring consistent product quality and reliable processes. With an annual export value ranging between US$1 Million and US$1.5 Million, we have successfully delivered our electrical solutions to diverse markets including North America, South America, Europe, Asia, Africa, and Oceania. This global reach demonstrates our capability to meet international standards and logistical requirements. Our transformer is more than just a component; it's a strategically chosen asset that enhances the profitability and sustainability of your renewable energy system. By investing in this low-loss pad-mounted transformer, you are securing a foundation for efficient, reliable, and long-lasting power conversion. Contact us to discuss how we can tailor this solution to the specific needs of your wind or solar project.
Frequently Asked Questions (FAQ)
Q1: What exactly makes the "low-loss core" different from a standard transformer core?
A: The low-loss core uses specialized magnetic materials, such as amorphous metal or advanced silicon steel alloys. These materials have inherently lower hysteresis and eddy current losses when subjected to alternating magnetic fields, resulting in significantly reduced no-load (core) energy dissipation.
Q2: How significant are the efficiency gains for a typical wind farm application?
A: The efficiency improvement depends on the size and operating profile of the transformer. For a medium-sized unit in a wind farm with variable load, the reduction in no-load losses can lead to a measurable increase in annual energy delivery, directly boosting the project's financial performance.
Q3: Is this transformer suitable for both onshore and offshore renewable projects?
A: The standard pad-mounted design is primarily for onshore applications. For offshore environments, additional considerations like enhanced corrosion protection and possibly different mounting schemes would be required, which can be discussed as a customization option.
Q4: Can the transformer be integrated with smart monitoring systems?
A> Yes. We offer optional monitoring packages that can include sensors for temperature, pressure, and partial discharge. Data from these sensors can be used for condition monitoring and predictive maintenance, integrating with your overall SCADA or management system.
Q5: What is the typical delivery lead time for a custom-rated unit?
A: Lead times vary based on the complexity of the customization and current production schedule. Generally, for standard designs within our capacity range, lead times can be estimated upon request after finalizing specifications.
Q6: Does the product come with specific grid compliance certifications for different countries?
A: The transformer is designed to meet fundamental international electrical standards for safety and performance. For specific country-grid connection codes (e.g., UL standards for North America), we can design and manufacture units that comply with the required norms, subject to detailed project specifications.
Q7: How does the pad-mounted design facilitate installation at a solar park?
A> The pad-mounted design means the transformer arrives as a complete, self-contained unit mounted on a base frame. It can be placed directly on a prepared concrete pad at the site, minimizing complex onsite assembly and reducing installation time and cost.
Q8: What maintenance is required for this transformer over its lifetime?
A: Due to its sealed, durable construction and use of high-quality materials, routine maintenance is minimal. It typically involves periodic inspections, oil sampling/testing (if specified), and checking of external connections and accessories. The optional monitoring systems can further reduce manual inspection needs.
