Help Center80KV 280PF 281 High Voltage Doorknob Y5P Ceramic Capacitor
Related Products
-
28KV 4000PF 402 75KV Impulse Y5T Ceramic CapacitorUS$ 40 - 60MOQ: 10 Pieces -
35KV 6000PF 602 High Voltage Doorknob Z5V Ceramic CapacitorUS$ 20 - 50MOQ: 10 Pieces
-
35KV 3000PF 302 High Voltage Z5U Ceramic CapacitorUS$ 20 - 50MOQ: 10 Pieces
-
30KV 3000PF 302 X-ray Generator Z5T Ceramic CapacitorUS$ 25 - 55MOQ: 10 Pieces
-
20KV 6800PF 682 High Voltage Disc Type Y5V Ceramic CapacitorUS$ 20 - 45MOQ: 10 Pieces
1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate
6, World class customers experience

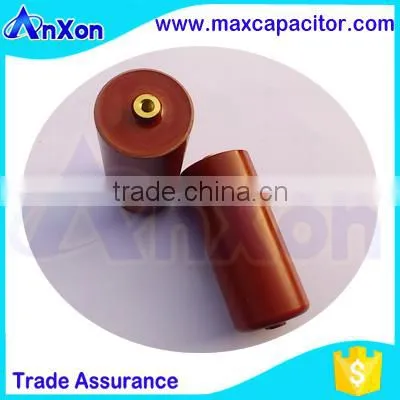

Product Name: 80KV 280PF 281 high voltage doorknob Y5P ceramic capacitor
High Voltage Ceramic Capacitor 80KV 280PF, Molded type Ultra-high Voltage Ceramic Capacitors 80KVAC, 80KVrms 281 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: |
80KV 280PF , 80KV 281 |
AnXon P/N |
AXCHV80DL281KDB |
Tolerance: |
K, ±10% |
Type: |
Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : |
Y5P |
Operating Temperature: |
-30C ~ 85C |
Size / Dimension(ΦD×T*H): |
D:28mm, H:80mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. |
Rated Spec |
Testing voltage |
Partial discharge |
Dissipation factor |
Dimension(mm) |
||
kVdc |
kV/1min |
|
1kHz/1V |
D |
H |
M |
|
AXCHV60DL102DB |
60KV 1000PF |
DC90KV AC60KV |
AC25KV<8PC |
≤0.1% |
60 |
55 |
M5X6 |
AXCHV60DL122DB |
60KV 1200PF |
60 |
55 |
M5X6 |
|||
AXCHV60DL402KDB |
60KV 4000PF |
80 |
46 |
M8X8 |
|||
AXCHV70DL202KDB |
70KV 2000PF |
DC110KV AC75KV |
65 |
58 |
M8X8 |
||
AXCHV75DL252KDB |
75KV 2500PF |
80 |
46 |
M8X8 |
|||
AXCHV80DL122KDB |
80KV 1200PF |
DC125KV AC80KV |
60 |
55 |
M8X8 |
||
AXCHV80DL172KDB |
80KV 1700PF |
60 |
55 |
M8X8 |
|||
AXCHV80DL252KDB |
80KV 2500PF |
80 |
52 |
M8X8 |
|||
AXCHV80DL332KDB |
80KV 3300PF |
80 |
52 |
M8X8 |
|||
AXCHV100DL162KDB |
100KV 1600PF |
DC150KV AC80KV |
60 |
58 |
M8X8 |
||
HV Capacitor Application Guide
