Home > Products > Multi Jet Water Meters > Rotary Vane Wheel Hot iron Water Meter

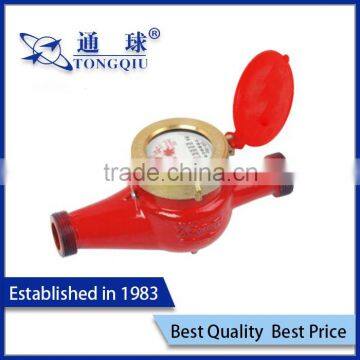

Rotary Vane Wheel Hot iron Water Meter
- 300000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TQ or OEM | Model Number: | LXSR-15~50 |
Product Description
Features :
The core of this meter is made of heat-resistant plastics. It is used for measuring the living water, hot Water, boiler preheating water and process cooling water.
Working Condition :
Water temperature: ≤90℃ pressure: ≤1Mpa
INDICATING ERROR:
At low zone is ±5% from minimum flow rate(qmin) to transitional flow rate(qt) exclusive boundary ;
At high zone is ±2% from transitional flow rate(qt) to overload flow rate(qs)
Type | Meter size Dia DN (in.) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
m3/h | 1/h | m3 | ||||||
LXSG-15E | 1/2" | A | 3 | 1.5 | 150 | 60 | 0.0001 | 9999 |
B | 120 | 30 | ||||||
C | 22.5 | 15 | ||||||
LXSG-20E | 3/4" | A | 5 | 2.5 | 250 | 100 | 0.0001 | 9999 |
B | 200 | 50 | ||||||
C | 37.5 | 25 | ||||||
LXSG-25E | 1" | A | 7 | 3.5 | 350 | 140 | 0.0001 | 9999 |
B | 280 | 70 | ||||||
LXSG-32E | 11/4" | A | 12 | 6 | 600 | 240 | 0.0001 | 9999 |
B | 480 | 120 | ||||||
LXSG-40E | 11/2" | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
B | 800 | 200 | ||||||
LXSG-50E | 2" | A | 30 | 15 | 4500 | 1200 | 0.001 | 99999 |
B | 3000 | 450 |
Type | Length | Width | Height | Connecting D(d) | Weight (Kg) |
mm | |||||
LXSG-15E | 165/190 | 99 | 108 | G 3/4B | 1.4/1.6 |
LXSG-20E | 190/195 | 99 | 108 | G 1B | 1.7/1.8 |
LXSG-25E | 260/225 | 104 | 114 | G1 1/4B | 2.6/2.4 |
LXSG-40E | 260/230 | 104 | 117 | G1 1/2B | 2.8/2.7 |
LXSG-40E | 300/245 | 128 | 158 | G 2B | 5.1/4.5 |
LXSG-50E | 300/280 | 128 | 183 | Connecting flange D1=160 D2=125 4-M16 | 11.5/11 |
