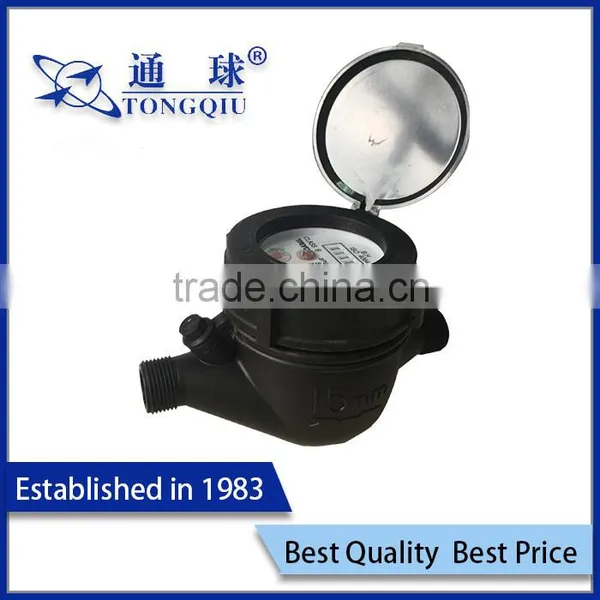

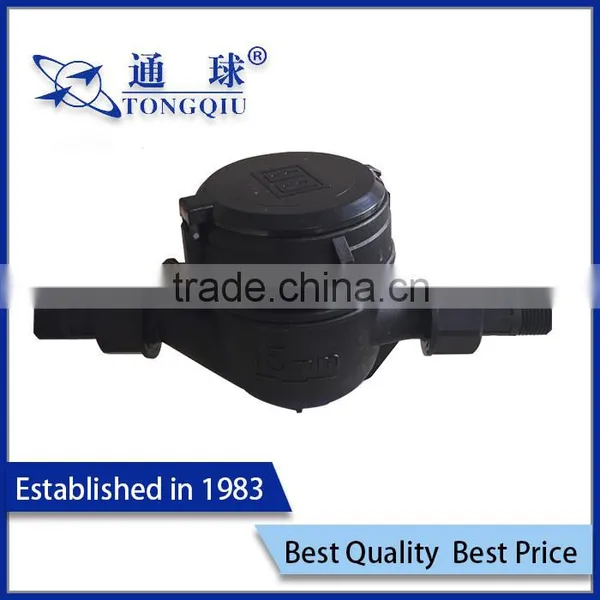

LXSG-15~25 Multi Jet Dry Dial Nylon Plastic Water Meter
Features :
1.Completely plastic shell, solid and robust design, long service guaranteed.
2.High quality materials corrosion resistance.
3.Pole ring magnet polymer coating as protection against deposits.
4.The measuring mechanism can be exchanged.
5.Step movement counter.
6.Inside calibration device.
7. Large measuring range high flow accuracy.
8.Steady curve characteristics.
9.Measuring accuracy:ISO4064 Class B.
10. Overload flowrate: Qs=2Qp (Qn=nominal flowrate)
Working Condition :
Water temperature: ≤40℃ pressure: ≤1.6Mpa
INDICATING ERROR:
At low zone is ±5% from minimum flow rate(qmin) to transitional flow rate(qt) exclusive boundary ;
At high zone is ±2% from transitional flow rate(qt) to overload flow rate(qs)
Optional: Both brass thread connections and plastic thread connections are available.
| Type | Meter size Dia DN (in.) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura | Length | Width | Height | Connecting D | Weight (Kg) |
| m3/h | 1/h | m3 | mm | ||||||||||
| LXSG-15S | 1/2" | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 | 165 | 99 | 108 | G 3/4B | 0.53 |
| B | 120 | 30 | |||||||||||
| LXSG-20S | 3/4" | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 | 195 | 99 | 108 | G 1B | 0.6 |
| B | 200 | 50 | |||||||||||
| LXSG-25S | 1" | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 | 225 | 104 | 114 | G1 1/4B | 0.78 |
| B | 280 | 70 | |||||||||||
| LXSG-40S | 11/2" | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 | 245 | 128 | 158 | G2B | 1.2 |
| B | 800 | 200 | |||||||||||
Q.Are you the factory?
A.Yes.We are factory.TONGQIU WATER METER was established in 1983,specializes in producing all kinds of water meters.Our factory is located in Industrial Zone,Fuhai town,Cixi,Ningbo,China.Welcome your visit to our factory.
Q.How to request a quotation from TONGQIU?
A.Simply call or send us E-mail with your purchase request. Be sure to include all requirements(like the type,size,weight ,package and so on) in your request for quote.
Q.What are your quality control procedures?
A.TONGQIU strictly get the control of quality,which begin with material purchase and carry through to the end of the production process by ISO9001.Before shipping,welcome the examination of goods.
Q.Are there any special requirements for OEM purchases?
A.Yes.We requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q.Do TONGQIU products come with a warranty?
A.Yes.We backs our products100%.Usually 3-10years product life guarantee(except environment influence,like the chemical substance in water) ,and a generous1 year warranty on all purchases that begins with the bill of loading.
Sample order also accept . According to our company’s rule , sample cost need to be paid by your esteemed company . And we will return the cost to you when you place the first order with us . Thanks .
We are looking forward to contacting and cooperation with all circles,and try our best to meet your special requirements, and supply you with our excellent quality products and services.
Each piece in one inner box(common or colorful depends on requirement).
DN15~DN20,10 pcs in one carton;
DN25~DN32,5 pcs in one carton;
