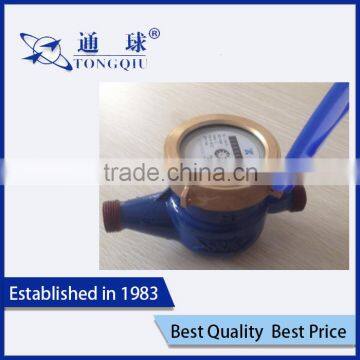

Rotary Vane Wheel Dry Dial Iron Water Meter LXSG--15E~50E
Features :
The mechanism of the register shall be selfhoused in the container of the corrosion resistant metal,with dry dial,straight reading,and rotation of the wheel be driven with magnet to the register,the case of water meter is made of cast copper and is beautifully shaped, Easy for reading, clearness and long service are its advantages.
Working Condition :
Water temperature: ≤40℃ pressure: ≤1Mpa
INDICATING ERROR:
At low zone is ±5% from minimum flow rate(qmin) to transitional flow rate(qt) exclusive boundary ;
At high zone is ±2% from transitional flow rate(qt) to overload flow rate(qs)
| Type | Meter size Dia DN (in.) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | ||||||
| LXSG-15 | 1/2" | B | 3 | 1.5 | 150 | 60 | 0.0001 | 9999 |
| C | 120 | 30 | ||||||
| LXSG-20 | 3/4" | B | 5 | 2.5 | 250 | 100 | 0.0001 | 9999 |
| C | 200 | 50 | ||||||
| LXSG-25 | 1" | B | 7 | 3.5 | 350 | 140 | 0.0001 | 9999 |
| C | 280 | 70 | ||||||
| Type | Length | Width | Height | Connecting D(d) | Weight (Kg) |
| mm | |||||
| LXSG-13 | 165 | 99 | 104 | G 3/4B(R1/2) | 1.35 |
| LXSG-20 | 190 | 99 | 107 | G 1B(R3/4) | 1.45 |
| LXSG-25 | 225 | 99 | 112 | G1 1/4B(R1) | 1.9 |
| LXSG-32 | 230 | 104 | 112 | G1 1/2B(R11/4) | 1.9 |
| LXSG-40 | 245 | 125 | 145 | G 2B(R11/2) | 4.4 |
| LXSG-50 | 300/280 | 125 | 150 | G2 1/2B(R2) | 8.4/8.1 |
