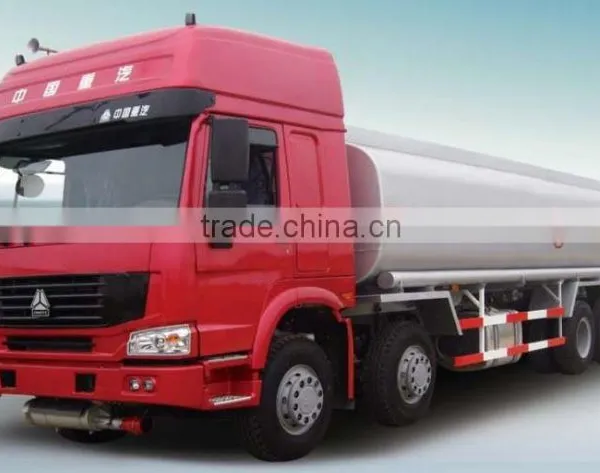

Help CenterHowo 6*4 20cbm Oil Tank Truck Fuel Tanker
US$ 35,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Storage:
Oil
Drive Wheel:
6x4
Payment & Shipping
Payment Methods:
Port of Shipment:
China main ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Storage
Oil
Drive Wheel
6x4
Horsepower
251 - 350hp
Transmission Type
Manual
Fuel Type
Diesel
Tank Volume
15001 - 30000L
Engine Capacity
9.726
Dimensions (L x W x H) (mm)
9800*2496*3260
Brand Name
howo
Place of Origin
Shandong, China
Model Number
ZZ1257N4341W
Gross Vehicle Weight
25000
The sprinkling truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities, high and low-level spraying for urban landscaping, pesticide spraying and guardrail washing as well as functions of carrying and draining off water and emergency firefighting etc.
(1)High pressure, wide range of spraying good flushing effect
(2)Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
(3)Pneumatic control and manual control system can realize two functions
(4)External sandblasting processing of tank, internal anti-corrosion treatment,Outside surface adopts advanced polyurethane paint, beautiful appearance and easy
(5)Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down.Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
| HOWO Oil tank truck configurations and main technical parameters(13M3-20M3,6*4,EUROⅡ,extended cab) | ||||
| Mixer tank effective volume,m3 | 20 | |||
| Kerb weight(vehicle/chassis),kg | 11120 | |||
| Gross mass(vehicle/chassis),kg | 25000 | |||
| Rated load,kg | 13750 | |||
| External dimensions(length×weight×height)mm | 9800*2496*3260 | |||
| Tank paramenter | Thickness of the tank,mm | 5 | ||
| Oil pump | YHCB80-60/YHCB50-8/YHCB50-20/YHCB60-30 | |||
| wheelbase,mm | 4300+1350 | |||
| Front/rear overhang(vehicle/chassis),mm | 1500/2625 | |||
| Wheel track(front/rear),mm | 2022/2041 | |||
| Approach/departure angle(vehicle/chassis) | 16/15 | |||
| Maximum speed,km/h | 90 | |||
| Typical vehicle model | ZZ1257N4341W | |||
| Cab | Model | HW76 | ||
| Type | Extended cab ,single berth,up/down and front/back adjustable steering wheel,VDO instrument and control module,and safety belt with double locking mechanism,exterior sun visor | |||
| Engine(optional) | Model | WD615.87 290hp | WD615.69 336hp | WD615.47 371hp |
| Rated power,kw/rpm | 213/2200 | 247/2200 | 273/2200 | |
| Maximum torque,Nm/rpm | 1160/1100-1600 | 1350/1100-1600 | 1460/1100-1600 | |
| Displacement,L | 9.726 | |||
| Type | Inline 6 cylinder,2 valves,supercharged intercooling,rear supercharger | |||
| Clutch | Φ430Bdiaphragm spring clutch.Hydraulic control air power assisted.Standard 430A type for WD615.49 engine,Standard 430Btype for 615.69 engine,Standard 430C type for WD615.87 engine. | |||
| Transmission | SINOTRUK HW series 10 speed transmission,main and auxiliary transmission struct,main transmission with double countershaft,auxiliary transmission with planetary reducer.Standard HW15710 type for WD615.87 engine,standard HW19710 type for WD615.69and WD615.47 engine. | |||
| Front axle | HF9 drum-type,rated load of 9T | |||
| Drive axle | HC16 double reduction(central reduction+wheel reduction),speed ratio:5.73,4.8 | |||
| Suspension | Front and rear leaf spring suspension,front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer | |||
| Steering system | ZF8098 steering gear,ZF steering oil pump,system pressure of 18Mpa | |||
| Brake system | Service brake:dual-circuit pneumatic brake;parking brake:energy storage spring air cutoff brake;auxiliary brake:engine exhaust brake.Standard engine EVB,and with ABS option automatic slack adjuster | |||
| Electrical system | Voltage:24V;generator:2240W;Starter:24V,7.5kw;battery:12V/165AH,2pieces | |||
| Tyre | 12.00R20;optional 12.00R24/12.00-24 | |||
| Tank volume,L | 300 | |||
