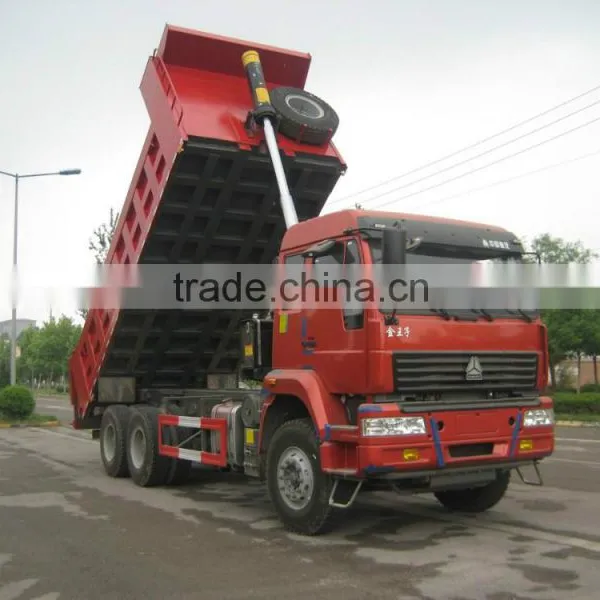

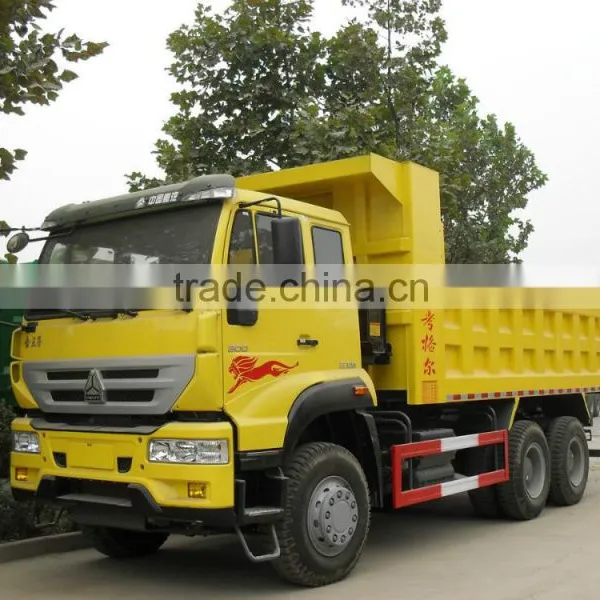

Help CenterSino Truk Golden Prince 6*4
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
21 - 30t
Horsepower:
251 - 350hp
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Drive Wheel
6x4
Capacity (Load)
21 - 30t
Horsepower
251 - 350hp
Condition
New
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Gross Vehicle Weight
25000
Place of Origin
Shandong, China
Brand Name
howo golden prince
Model Number
ZZ3251N3841C1
Dimensions (L x W x H) (mm)
8320*2500*3450
| Model | ZZ3251N3841C1 Driving type: 6*4 Left Hand Driving | |||||
| Engine | Make: SINOTRUK | |||||
| Diesel 4-stroke direct injection diesel engine | ||||||
| Engine model:95E 336 HP Euro II emission standard | ||||||
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | ||||||
| Maximum output:336 hp | ||||||
| Maximum torque: 2200—2600rpm | ||||||
| Number of cylinder: 6 | ||||||
| Displacement:9.726L | ||||||
| Transmission | HW15710, | |||||
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |||||
| Front Axle | Steering with doubleT-cross section beam | |||||
| Rear Axle | Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles . | |||||
| Ratio:4.42 Option: 4.8 | ||||||
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members | |||||
| Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer | ||||||
| Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer | ||||||
| Aluminium fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis | ||||||
| Steering | D39 | |||||
| Brakes | Service brake: dual circuit compressed air brake | |||||
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | ||||||
| Auxiliary brake: engine exhaust brake | ||||||
| ABS control system: for option | ||||||
| Wheels & Tyres | Tire: 11.00-R20 Radial tyres | |||||
| Driver's Cab | extended cab,sigle berth ,up/down and front /back adjustable streering,VDO instrument and control module,safety belt with double mechanism exterior sun visor | |||||
| Electrics | Operating voltage: 24 V, negative grounded | |||||
| Starter: 24 V, 5.4 Kw | ||||||
| Alternator: 3-phase, 28 V, 1500 W | ||||||
| Batteries: 2 x 12 V, 165 Ah | ||||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||||||
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators | |||||
| of compressed air pressure, coolant temperature, engine oil pressure and battery charging | ||||||
| Dimensions mm | Wheel base | 3750+1350 | ||||
| Front wheel track | ||||||
| Rear wheel track | ||||||
| Front overhang | 1320 | |||||
| Rear overhang | 1900 | |||||
| Approach angle (0) | 20.5 | |||||
| Departure angle (0) | 25 | |||||
| Overall length | 8320 | |||||
| Overall width | 2500 | |||||
| Overall height | 3450 | |||||
| Weight kg | Dead weight | 12310 | ||||
| Gross vehicle weight | 25000 | |||||
| Front axle loading capacity | 7000 | |||||
| Rear axle loading capacity | 2*16000 | |||||
| Performance | Maximum driving speed (km/h) | 75 | ||||
| Maximum gradeability (%) | 35 | |||||
| Minimum ground clearance (mm) | 260 | |||||
| Fuel consumption (l/100 km) | 27.5 | |||||
| The manufacturer reserves the right of technical alteration/change for better improment without prior notice | ||||||
Golden prince series tipper adopts the MAN technology l2000 Cab,possess advantages of compact structure,decent line ,spaciously comfortable ,wide view open-angled door,big-angled cab tilt and easy maintenance it is equipped with Sinotruk engine .Sinotruk HW series gear box,AC16 series double reduction driving axles.it has the features of light self weight strong carrying capacity,strong power high reliability,strong clumbing ability and high economic vehicle speed,etc.
