Rotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power.
Rotary Joints and Rotary Unions allow the feed through of water, glycol, air, hydraulic, coolant, MQL, hot oil, steam, vacuum and a variety of other media. Rotary Joints and Rotary Unions that can be configured for installation at the end of a shaft or around-the-shaft.

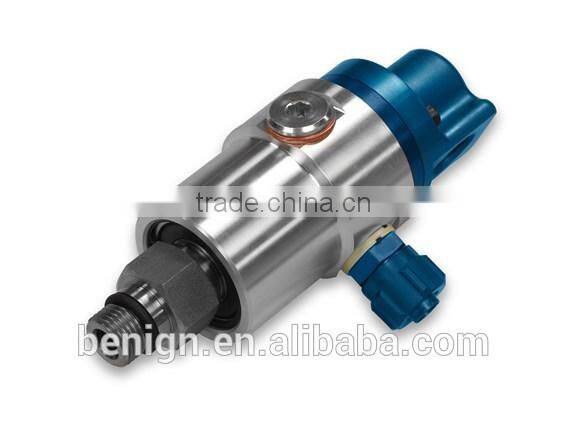

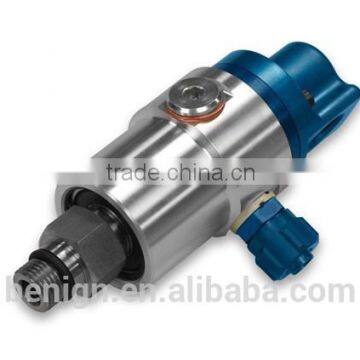

Deublin Rotating UNION POP-OFF M16X1.5LH 18MM 902-120-188
- Single passage for coolant or MQL
- Patented "pop-off" technology allows unlimited dry running without media pressure
- Full-flow design has no obstructions to trap chips or debris
- Bearing-supported with threaded rotor for easy installation
- Dual ABEC 7 (ISO class P4) angular contact ball bearings (1109)
- Deep groove radial ball bearings (902)
- Labyrinth system and large vents to protect ball bearings
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Anodized aluminum housing resists corrosion
- Stainless steel rotor

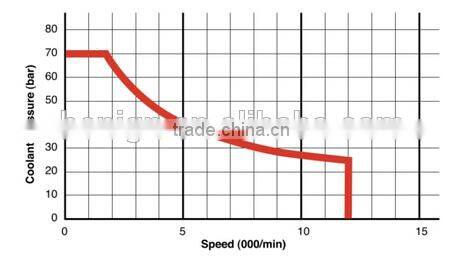

- Reference "1109/902 Series Pressure vs Speed Graph"
- Reference "Coolant Unions Spindle Tolerances"
| Hose Connection | BSP | |
|---|---|---|
| Housing Connection | Radial | |
| Housing Hose Thread Size B | G3/8" | |
| Media | Coolant, MQL | |
| Passages | One Passage | |
| Rotor Description | M16 x 1.5 Metric LH | |
| Rotor Thread Direction | LH | |
| Rotor Thread Size A | M16 x 1.5 | |
| Rotor Type | Threaded | |
| Seal Combination | Standard Seals | |
| Union Size |
G3/8" |
| A Rotor Thread | M16 x 1.5 | |
|---|---|---|
| B Port | G3/8" | |
| C Max | 44 MM | |
| C Min | 44 MM | |
| D | 135 MM | |
| E | 1 MM | |
| F | 11 MM | |
| G | 9 MM | |
| H | 24 MM | |
| I Max | 18 MM | |
| I Min | 18 MM | |
| J | 105 MM | |
| M | 5 MM | |
| N | 38 MM | |
| P Thread | G1/4" (BSP) IN |
| Coolant Pressure | 69 BAR | |
|---|---|---|
| Coolant Temp | 71 C | |
| Max Speed | 12000 /MIN | |
| Maximum Flow | 81.76 LPM | |
| MQL Pressure | 10 BAR | |
| MQL Temp | 71 C |
