Rotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power.
Rotary Joints and Rotary Unions allow the feed through of water, glycol, air, hydraulic, coolant, MQL, hot oil, steam, vacuum and a variety of other media. Rotary Joints and Rotary Unions that can be configured for installation at the end of a shaft or around-the-shaft.

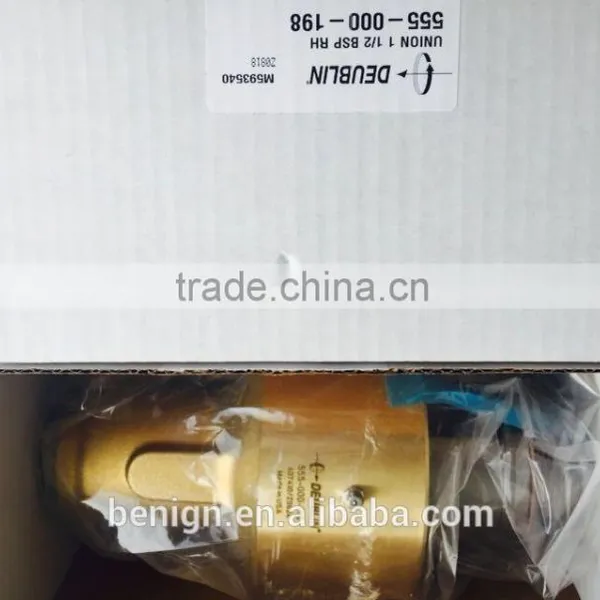

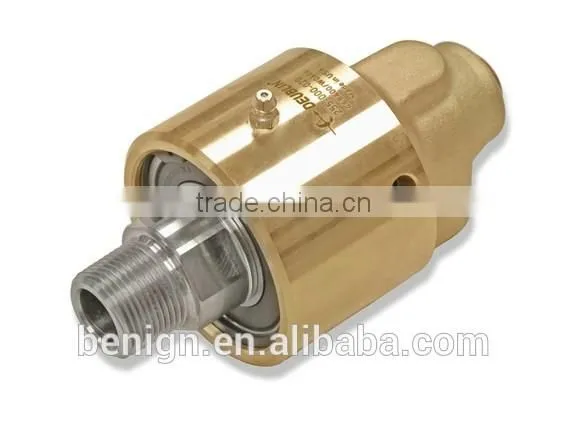

UNION 1 1/2 BSP RH 555-000-198
- Monoflow
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seal
- 3 vent holes
- Forged brass housing
- Stainless steel rotor
-
Special options: threaded vent holes, low torque design
Seal Combinations: - Standard: Carbon Graphite/Bronze for water
- Optional: Carbon Graphite/Ceramic for hot oil, hot water and saturated steam
- E.L.S.: Tungsten Carbide/Ceramic for severe conditions (poor water quality), max. temperature 200°F
| Hose Connection | NPT | |
|---|---|---|
| Housing Connection | Radial | |
| Housing Hose Thread Size B | 1 1/2" | |
| Media | Hot Oil, Steam, Water, Water Glycol | |
| Passages | One Passage | |
| Rotor Description | G1 1/2" BSP RH | |
| Rotor Thread Direction | RH | |
| Rotor Thread Size A | G1 1/2" | |
| Rotor Type | Threaded | |
| Seal Combination | Standard Seals | |
| Union Size | 1 1/2" |
| A Rotor Thread | G1 1/2" | |
|---|---|---|
| B Port | 1 1/2" | |
| C | 108 MM | |
| D1 | 225 MM | |
| E | 71 MM | |
| F | 29 MM | |
| G | 35 MM | |
| H | 55 MM | |
| J | 147 MM | |
| K-NPT | 11/4" |
Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.
Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)
Website:
Website on :http://benign.en.
Contact Mr. Benign Chen
Department: Director/CEO/General Manager
Job Title: General Manager
Telephone: 86-0512-62890289
Mobile Phone: 18020285375
Fax: 86-0512-62890289
Zip: 215000
Thick Carton Box
Small Size(2-4 pcs per box) |
35mm*20mm*20mm |
Medium Size( 5-10 pcs per box) |
45mm*30mm*25mm |
Large Size( more than 10pcs per box) |
60mm*40mm*25mm |
Shipping
EMS, TNT, UPS, FEDEX Courier for small quantity.
Ocean transport for large quantity.
Warranty: Two year limited warranty from time of delivery.
