Rotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power.
Rotary Joints and Rotary Unions allow the feed through of water, glycol, air, hydraulic, coolant, MQL, hot oil, steam, vacuum and a variety of other media. Rotary Joints and Rotary Unions that can be configured for installation at the end of a shaft or around-the-shaft.

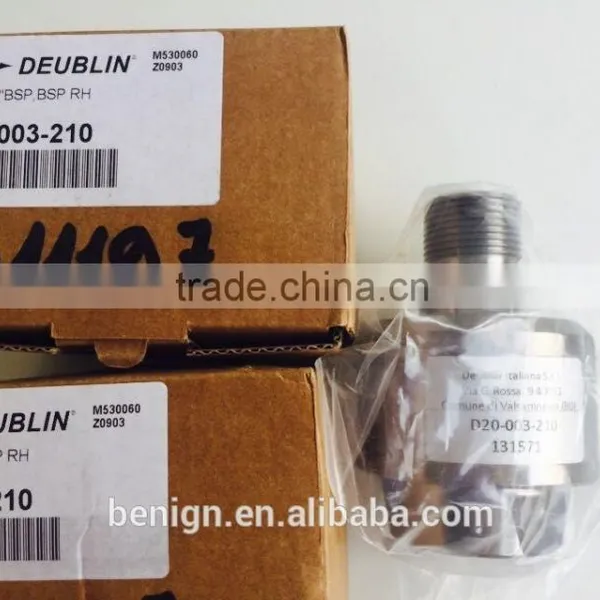

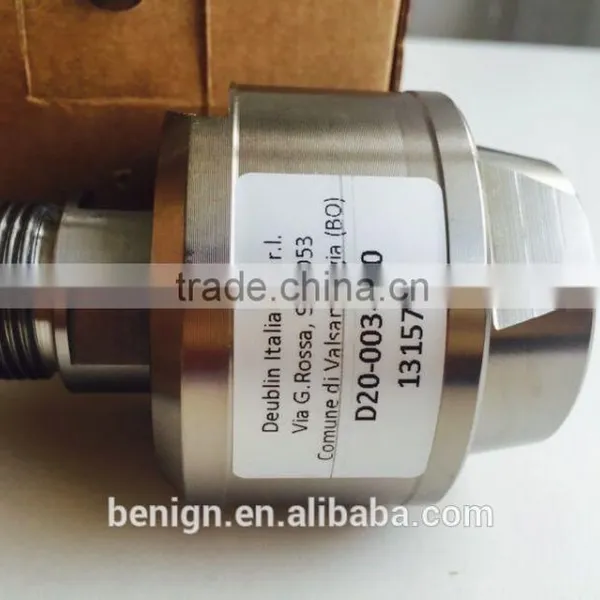

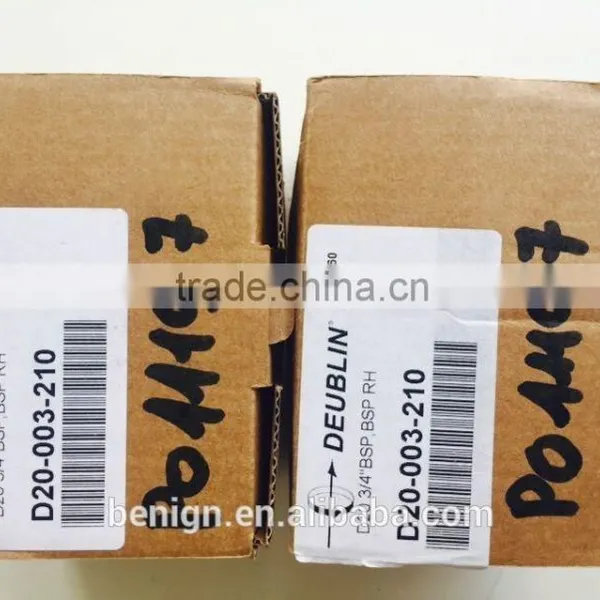

UNION 3/4 BSP RH D20-003-210
- Monoflow design
- For hydraulic oil and water
- For swivel applications and high pressure media
- Steel housing and end cap
- Stainless steel rotor
- Self-supported rotating union
- Can be adapted for other media
| Hose Connection | BSP | |
|---|---|---|
| Housing Connection | Axial | |
| Housing Hose Thread Size B | G3/4" | |
| Media | Hydraulic, Water | |
| Passages | One Passage | |
| Rotor Description | G3/4" BSP RH | |
| Rotor Thread Direction | RH | |
| Rotor Thread Size A | G3/4" | |
| Rotor Type | Threaded | |
| Seal Combination | Standard Seals | |
| Union Size | G3/4" |
| A Rotor Thread | G3/4" | |
|---|---|---|
| B Port | G3/4" | |
| C | 62 MM | |
| D | 90 MM | |
| E | 34 MM | |
| F | 20 MM | |
| G | 18 MM | |
| H | 27 MM | |
| J | 3 MM | |
| L | 42 MM |
| Hydraulic Pressure | 441 BAR | |
|---|---|---|
| Hydraulic Temp | 121 C | |
| Max Speed | 20 /MIN | |
| Water Pressure | 441 BAR | |
| Water Temp | 121 C |
Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.
Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)
Website:
Website on :http://benign.en.
Contact Mr. Benign Chen
Department: Director/CEO/General Manager
Job Title: General Manager
Telephone: 86-0512-62890289
Mobile Phone: 18020285375
Fax: 86-0512-62890289
Zip: 215000
Thick Carton Box
Small Size(2-4 pcs per box) |
35mm*20mm*20mm |
Medium Size( 5-10 pcs per box) |
45mm*30mm*25mm |
Large Size( more than 10pcs per box) |
60mm*40mm*25mm |
Shipping
EMS, TNT, UPS, FEDEX Courier for small quantity.
Ocean transport for large quantity.
Warranty: Two year limited warranty from time of delivery.
