Rotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power.
Rotary Joints and Rotary Unions allow the feed through of water, glycol, air, hydraulic, coolant, MQL, hot oil, steam, vacuum and a variety of other media. Rotary Joints and Rotary Unions that can be configured for installation at the end of a shaft or around-the-shaft.

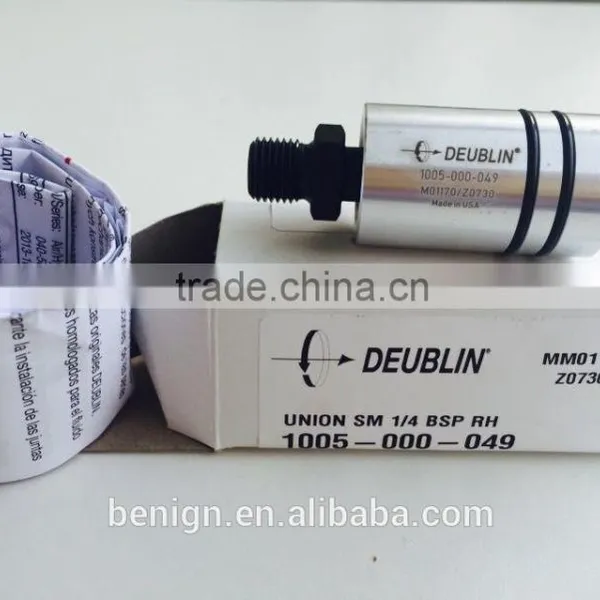

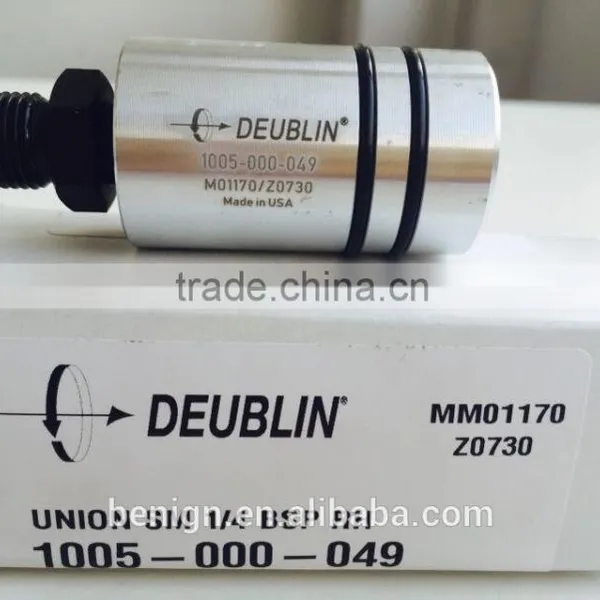

UNION SM 1/4 BSP RH 1005-000-049
- Monoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seal
- Felt oiler in seal cavity for air service
- Oiler for relubrication (3 - 5 drops/month)
- Low torque
- Weight-optimized design
- Aluminum housing
Standard Seal: - Carbon Graphite/Hardened Tool Steel
| Hose Connection | NPT | |
|---|---|---|
| Housing Hose Thread Size B | 1/8" | |
| Media | Air, Hydraulic, Vacuum | |
| Passages | One Passage | |
| Rotor Description | G1/4" Machined RH | |
| Rotor Thread Direction | RH | |
| Rotor Thread Size A | G1/4" | |
| Rotor Type | Threaded | |
| Seal Combination | Standard Seals | |
| Union Size | 1/8" |
| Air Pressure | 150 PSI | |
|---|---|---|
| Air Temp | 250 F | |
| Hydraulic Pressure | 1000 PSI | |
| Hydraulic Temp | 250 F | |
| Max Speed | 3500 RPM |
Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.
Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)
Website:
Website on :http://benign.en.
Contact Mr. Benign Chen
Department: Director/CEO/General Manager
Job Title: General Manager
Telephone: 86-0512-62890289
Mobile Phone: 18020285375
Fax: 86-0512-62890289
Zip: 215000

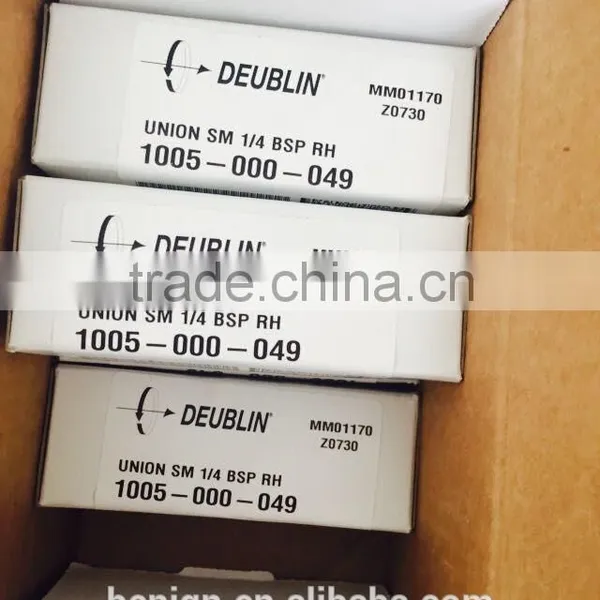

Thick Carton Box
Small Size(2-4 pcs per box) |
35mm*20mm*20mm |
Medium Size( 5-10 pcs per box) |
45mm*30mm*25mm |
Large Size( more than 10pcs per box) |
60mm*40mm*25mm |
Shipping
EMS, TNT, UPS, FEDEX Courier for small quantity.
Ocean transport for large quantity.
Warranty: Two year limited warranty from time of delivery.
