16x4 character lcd module support 3spi or IIC serial interfaces with AIP31068 controller
- 30000 Piece / Pieces per Month
- Shenzhen Port
- Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Caijing | Model Number: | SCM164-1SLDAA-5 |
Type: | COB |
Product Description
16x4 character lcd module support 3spi or IIC serial interfaces with AIP31068 controller
Model No.: CM164-1SLYA
Number of character: 16*4

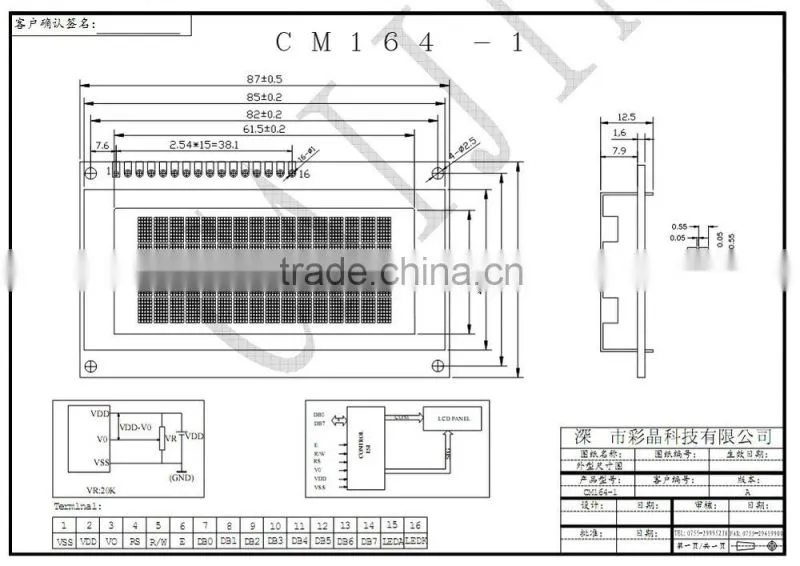

Size: 87*60*12.5mm
VA: 61.5*26mm
Drive method: 1/16 duty, 1/5 bias
View angle: 6: 00
Display: STN yellow-green or blue model
Voltage: 5 or 3.3V
TOP: -20 - +70ºC
TST: -30 - +80ºC
AIP31068 or (equivalent) controller
10880 bits CGROM,512 bits CGRAM
3SPI or IIC interfaces,5x8 dots
Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.
14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free samples are available for some styles
About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.
Display Content | Model No. | Outline Size(mm) | V.A(mm) | Dots Size | Controller | Voltage | Interface |
8x2 | CM802-1 | 40×35×7 | 28×14 | 0.5×0.5 | SPLC780 | 5V/3V | serial/parallel |
8x2 | CM802-2 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
8x2 | CM802-6 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
12x1 | CM121-1 | 103×35×11 | 76×25 | 1×1.4 | SPLC780 | 5V/3V | serial/parallel |
16x1 | CM161-1 | 80×36×12 | 64×13.8 | 0.55×0.7 | SPLC780 | 5V/3V | serial/parallel |
16x1 | CM161-2 | 122×33×14 | 99×13 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-1 | 122×44×13.4 | 99×24 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-3 | 84×44×13.7 | 62×18 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-4 | 80×36×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-10 | 84×44×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-11 | 80×36×12.5 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-12 | 85×36×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-13 | 80×36×12.5 | 64.6×13.8 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-15 | 85×29×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-17 | 85×36×14 | 62×16 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
16x2 | CM162-36 | 80x36x11.3 | 64.9x15.9 | 0.54x0.62 | SPLC780 | 5V/3V | serial/parallel |
16x4 | CM164-1 | 87×60×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
16x4 | CM164-2 | 87×55×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
20x2 | CM202-1 | 116×37×12.5 | 83×18.5 | 0.61×0.66 | SPLC780 | 5V/3V | serial/parallel |
20x2 | CM202-2 | 180×40×14.3 | 148×23 | 1.1×1.12 | SPLC780 | 5V/3V | serial/parallel |
20x2 | CM202-3 | 116×32.5×7.9 | 87.8×17.5 | 0.553×0.569 | SPLC780 | 5V | serial/parallel |
20x2 | CM9079 | 123×25×12.7 | 85×12.9 | 0.55×0.65 | SPLC780 | 5V | serial/parallel |
20x4 | CM204-1 | 98×60×14 | 76×26 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
20x4 | CM204-2 | 146×62.5×13 | 123×42.5 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
40x2 | CM402-1 | 182×33×11.5 | 154×15.8 | 0.6×0.65 | SPLC780 | 5V | serial/parallel |
40x4 | CM404-1 | 190×54×13.6 | 147×29.5 | 0.5×0.55 | SPLC780x2 | 5V/3V | serial/parallel |
