192x64 Stn Yellow Green Cob Lcd Module Display With Led Backlit

192x64 Stn Yellow Green Cob Lcd Module Display With Led Backlit thumbnail-1
192x64 Stn Yellow Green Cob Lcd Module Display With Led Backlit photo-1
US$ 39 - 41 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Caijing
Model Number:
CM19264-1SLDAA
Contact Supplier Request Quote Chat Now
Shenzhen AOSZX Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Caijing
Model Number CM19264-1SLDAA
Type COB

192x64 stn yellow green cob lcd module display with led backlit

Product Description

Display types: COB STN/FSTN, blue/gray/yellow green and negative /positive
Dot matrix: 192 x 64dots
Duty: 1/64
Bias: 1/9
Input voltage: 3.3/5.0V DC
Controller: KS0107 or equation
Connector: zebra
LED backlight colors: white/blue/yellow green
Operating temperatures: 0 to 50°C/-20 to 70°C
Storage temperatures: -10 to 60°C/-30 to80°C

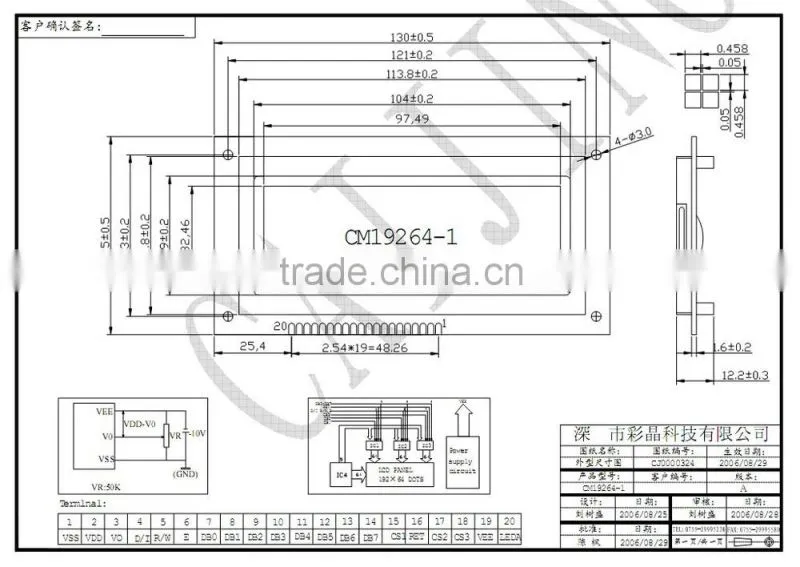

VA: (W) 104.0 x (H) 39.0mm
AA: (W) 97.49 x (H) 32.46mm
Dot size: (W) 0.458 x (H) 0.458mm
Dot pitch: (W) 0.05 x (H) 0.05mm
Dimensions: (W) 130.0 x (H) 65.0 x (T) 12.2mm

192x64 stn yellow green cob lcd module display with led backlit







Certifications

 Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.



192x64 stn yellow green cob lcd module display with led backlit192x64 stn yellow green cob lcd module display with led backlit192x64 stn yellow green cob lcd module display with led backlit192x64 stn yellow green cob lcd module display with led backlit





Company Advantages



14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free samples are available for some styles



Related Products

 About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,

192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .

Display Content  Product No. Outline size(mm) V.A(mm) Dot size(mm) Controller Supply Voltage Interface
192x64 CM19264-8 100×60×13 84×31 0.36×0.36 KS0108 5V/3V parallel
240x64 CM24064-1 180×65×13.8 132×39 0.49×0.49 T6963C 5V/3V serial/parallel
240x64 CM24064-2 180×65×13.8 132×39 0.49×0.49 RA8835 5V/3V serial/parallel
240x64 CM24064-8 180×65×13.8 132×39 0.49×0.49 T6963C 5V/3V serial/parallel
240x64 CM24064-10 146×62.5×13 123×42.5 0.45×0.57 T6963C 5V/3V serial/parallel
240x128 CM240128-1 144×104×12 114×64 0.4×0.4 T6963C 5V/3V serial/parallel
240x128 CM240128-2 144×104×12 114×64 0.4×0.4 T6963C 5V/3V serial/parallel
240x128 CM240128-3 144×104×12 114×64 0.4×0.4 HD61830 5V/3V parallel
240x128 CM240128-4 144×104×12 114×64 0.4×0.4 T6963C 5V/3V serial/parallel
240x128 CM240128-5 154×84×12 114×64 0.4×0.4 T6963C 5V serial/parallel
240x128 CM240128-6 144×104×12 114×64 0.4×0.4 T6963C 5V/3V serial/parallel
240x128 CM240128-9 144×104×12 114×64 0.4×0.4 T6963C 5V/3V serial/parallel
240x128 CM240128-10 144×104×12 114×64 0.4×0.4 T6963C 5V/3V serial/parallel
240x128 CM240128-11 144×104×10.8 114×64 0.4×0.4 UC1698U 3V parallel
240x128 CM240128-12 88.5×67×8.5 75.6×41.5 0.285×0.285 UC1698U 3V parallel
240x128 CM240128-12 88.5×67×8.5 75.6×41.5 0.285×0.285 UC1698U 3V parallel
240x128 CM7401 159×101×12 114×64 0.4×0.4 HD61830 5V/3V parallel
240x128 CM7420 159×101×12 114×64 0.4×0.4 T6963C 5V/3V serial/parallel
240x160 CM240160-1 143×96.8×11 104×79.3 0.37×0.4 RA8835 5V/3V serial/parallel
240x160 CM240160-2 91.3×64.5×7.4 69.4×47 0.261×0.261 ST7529 3V parallel
320x240 CM320240-1 143×97.9×11 104×79.3 0.27×0.27 RA8835 5V/3V serial/parallel
320x240 CM320240-2 103×77×12.6 80.4×61 0.225×0.225 RA8835 5V/3V serial/parallel
320x240 CM320240-3 160×109×11 122×92 0.33×0.33 RA8835 5V/3V serial/parallel
320x240 CM320240-4 139×120×12 103×79 0.27×0.27 RA8835 5V/3V serial/parallel
320x240 CM320240-9 103×77×7.9 80.4×61 0.225×0.225 RA8835 5V/3V serial/parallel
320x240 CM320240-12 160×109×11 122×92 0.33×0.33 RA8835 5V/3V serial/parallel
320x240 CM320240-13 139×120×12 103×79 0.27×0.27 RA8835 5V/3V serial/parallel
320x240 CM320240-15 160×109×11 122×92 0.33×0.33 RA8835 5V/3V serial/parallel
320x240 CM320240-20 92.8×71.8×8 79.5×59.5 0.22×0.22 RA8835 5V/3V serial/parallel
320x240 CM320240-23 160×109×11 122×92 0.33×0.33 RA8835 5V/3V serial/parallel
320x240 CM320240-29 139×100×11.4 103×79 0.27×0.27 RA8835 5V/3V serial/parallel
