5 inch HMI 800x480 dots smart terminal tft lcd module with controller STM32F103 and wide temperature ,USB picture download
Model No.: CJS05001
Size: 5-inch
Resolution: 800x480P
Effective display area: 108x64.8mm
Viewing area: 109x65.8mm

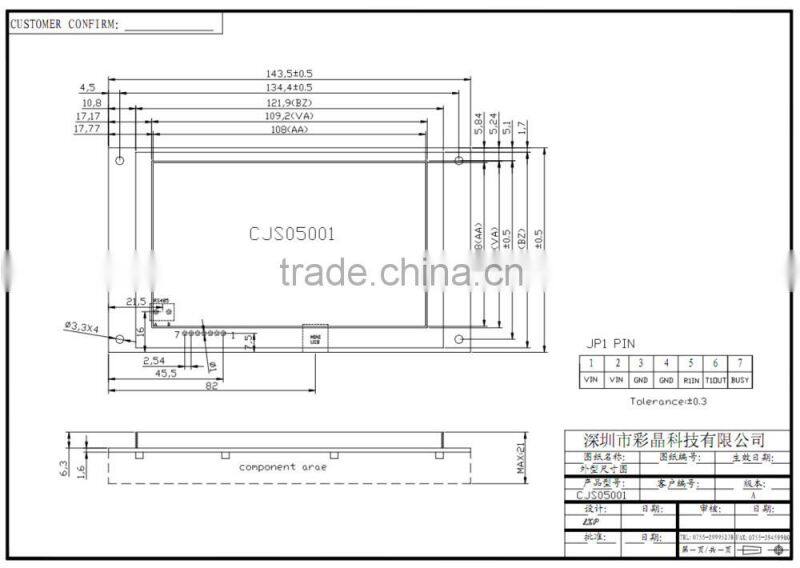

Outline size: 143.5 x 80.9mm
Height: 17.5mm
Display color: T/T
LED backlight: LED
Brightness: 450cd/m2
Viewing angle: L/R/U/D: 70/70/50/70°
Working temperature: -20-70°C
Storage temperature: -30-80°C
Download mode: USD mode
Selling Point
Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)
RTC real-time clock
Embedded 4-wire touch panel controller
USB picture download
Multiple pages DDRAM
Color depth TFT: 65K colors
2/4GB flash
PWM for backlight
Management of datasheet file
Efficient development tool for PC, most development work can be done on the PC
Hardware acceleration, transferred image quickly
Without touch screen
Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.
14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free samples are available for some styles
About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,
192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .
Display Content | Product No. | Outline size(mm) | V.A(mm) | Dot size(mm) | Controller | Supply Voltage | Interface |
120x32 | CM12032-1 | 98×50×14 | 76×26 | 0.55×0.6 | 1520 | 5V/3V | parallel |
122x32 | CM12232-1 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-4 | 67.2×27.2×8.7 | 54.8×18.8 | 0.36×0.41 | 1520 | 5V | parallel |
122x32 | CM12232-5 | 76.5×29×7 | 60.5×20.5 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-7 | 76×32.5×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-10 | 87×29×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-11 | 80.9×29×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-12 | 93×29.3×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-13 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-17 | 66×36×13 | 60×18 | 0.36×0.41 | 1520 | 5V | parallel |
122x32 | CM12232-18 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V | parallel |
122x32 | CM12232-20 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-21 | 84×44×13 | 60×18 | 0.36×0.41 | 1520 | 5V/3V | parallel |
122x32 | CM12232-26 | 65.4×28.8×5.5 | 54.8×18.3 | 0.36×0.41 | 1520 | 5V | parallel |
122x32 | CM12232-27 | 75.9×31.6×10 | 59.1×16.7 | 0.44×0.42 | ST7565R | 3V | serial/parallel |
128x32 | CM12832-1 | 110×65×14 | 76×25 | 0.52×0.52 | KS0108 | 5V/3V | parallel |
128x32 | CM12832-3 | 110×65×14 | 76×25 | 0.52×0.52 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-1 | 113×65×12.5 | 73.5×39 | 0.458×0.458 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-2 | 93×70×14 | 70.8×38.8 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-3 | 78×70×12 | 62×44 | 0.39×0.55 | T6963C | 5V/3V | parallel |
128x64 | CM12864-5 | 106×69×12 | 62×44 | 0.39×0.55 | T6963C | 5V/3V | parallel |
128x64 | CM12864-6 | 106×69×12 | 62×44 | 0.39×0.55 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-7 | 107×85×9.5 | 88×60 | 0.6×0.8 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-8 | 78×70×12 | 62×44 | 0.39×0.55 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-10 | 78×70×12 | 62×44 | 0.39×0.55 | T6963C | 5V/3V | parallel |
128x64 | CM12864-11 | 93×70×13 | 73×39 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-16 | 54×50×6.5 | 43.5×29 | 0.28×0.35 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-17 | 86×61×13.2 | 70.6×38.8 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-18 | 75×52×12 | 60×32.6 | 0.4×0.4 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-26 | 78×70×12 | 62×44 | 0.39×0.55 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-28 | 93×70×14 | 70.8×38.8 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-30 | 93×70×13 | 73×39 | 0.48×0.48 | KS0108 | 5V/3V | parallel |
128x64 | CM12864-31 | 54×50×7.5 | 40.5×28.8 | 0.29×0.36 | IST3004 | 3V | serial/parallel |
128x64 | CM12864-32 | 93×70×10.2 | 70.5×38.6 | 0.48×0.48 | ST7565P | 3V | serial/parallel |
128x128 | CM128128-1 | 106×92×14 | 73×73 | 0.49×0.49 | T6963C | 5V | serial/parallel |
128x128 | CM128128-4 | 106×92×14 | 73×73 | 0.49×0.49 | T6963C | 5V | serial/parallel |
128x128 | CM128128-6 | 72.1×65×8.3 | 48×48 | 0.33×0.33 | ST7541 | 3V | parallel |
128x128 | CM128128-8 | 50.0×45.8×7.7 | 31×30 | 0.19×0.19 | ST7541 | 3V | serial/parallel |
160x128 | CM16064-1 | 87×60×12.5 | 61.5×26 | 0.33×0.33 | T6963C | 5V/3V | parallel |
160x128 | CM160128-2 | 129×102×12 | 101×82 | 0.54×0.54 | T6963C | 5V/3V | serial/parallel |
160x160 | CM160160-1 | 67×63×7.5 | 46×46 | 0.245×0.245 | 320A | 3V | parallel |
160x160 | CM160160-3 | 77×73.5×7.8 | 58×58 | 0.32×0.32 | UC1698 | 3V | parallel |
192x64 | CM19264-1 | 130×65×12.2 | 104×39 | 0.458×0.458 | KS0108 | 5V/3V | parallel |
192x64 | CM19264-4 | 120×62×12.2 | 104×39 | 0.458×0.458 | KS0108 | 5V/3V | parallel |
192x64 | CM19264-6 | 100×60×13 | 84×31 | 0.36×0.36 | KS0108 | 5V/3V | parallel |
To be continue --------- |
