240x128 T6963c Graphical Lcd Module FSTN Black White

240x128 T6963c Graphical Lcd Module FSTN Black White thumbnail-1
240x128 T6963c Graphical Lcd Module FSTN Black White photo-1
US$ 21 - 23 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Caijing
Model Number:
CM240128-6FLWAA-5
Contact Supplier Request Quote Chat Now
Shenzhen AOSZX Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Caijing
Model Number CM240128-6FLWAA-5
Type COB

240x128 T6963c graphical lcd module FSTN black white

Product Description

Model number: CM240128-6
Dots matrix: 240*128 dots

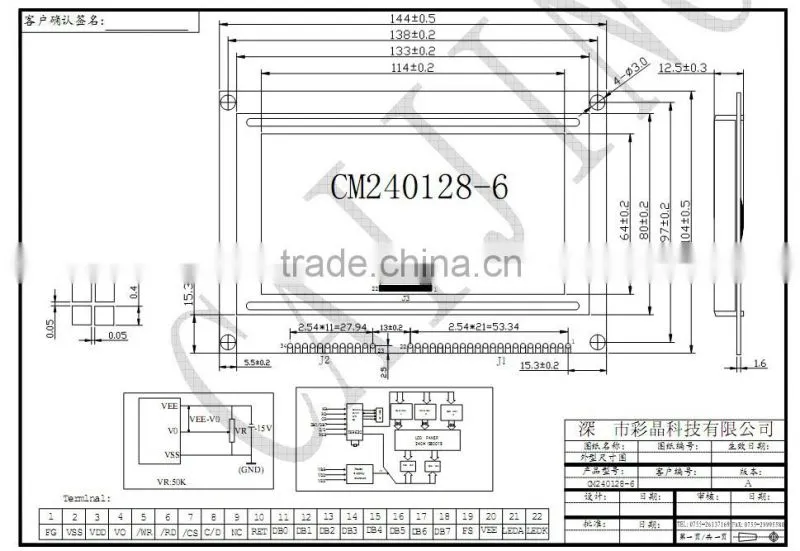

Module dimension: 144*104*12.5mm
Viewing display area: 144*64mm
Active display area: 107.95*57.55mm
Dots pitch: 0.05*0.05
Drive method: 1/128 Duty, 1/12 Bias
Viewing direction: 6: 00
LED backlight current: 61mA
LCD driver: T6963C
Weight: 195g

240x128 T6963c graphical lcd module FSTN black white



Certifications

 Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.



240x128 T6963c graphical lcd module FSTN black white240x128 T6963c graphical lcd module FSTN black white240x128 T6963c graphical lcd module FSTN black white240x128 T6963c graphical lcd module FSTN black white





Company Advantages



14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free samples are available for some styles



Related Products

 About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,

192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .

Display Content  Product No. Outline size(mm) V.A(mm) Dot size(mm) Controller Supply Voltage Interface
120x32 CM12032-1 98×50×14 76×26 0.55×0.6 1520 5V/3V parallel
122x32 CM12232-1 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-4 67.2×27.2×8.7 54.8×18.8 0.36×0.41 1520 5V parallel
122x32 CM12232-5 76.5×29×7 60.5×20.5 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-7 76×32.5×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-10 87×29×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-11 80.9×29×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-12 93×29.3×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-13 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-17 66×36×13 60×18 0.36×0.41 1520 5V parallel
122x32 CM12232-18 84×44×13 60×18 0.36×0.41 1520 5V parallel
122x32 CM12232-20 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-21 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-26 65.4×28.8×5.5 54.8×18.3 0.36×0.41 1520 5V parallel
122x32 CM12232-27 75.9×31.6×10 59.1×16.7 0.44×0.42 ST7565R 3V serial/parallel
128x32 CM12832-1 110×65×14 76×25 0.52×0.52 KS0108 5V/3V parallel
128x32 CM12832-3 110×65×14 76×25 0.52×0.52 KS0108 5V/3V parallel
128x64 CM12864-1 113×65×12.5 73.5×39 0.458×0.458 KS0108 5V/3V parallel
128x64 CM12864-2 93×70×14 70.8×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-3 78×70×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-5 106×69×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-6 106×69×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-7 107×85×9.5 88×60 0.6×0.8 KS0108 5V/3V parallel
128x64 CM12864-8 78×70×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-10 78×70×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-11 93×70×13 73×39 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-16 54×50×6.5 43.5×29 0.28×0.35 KS0108 5V/3V parallel
128x64 CM12864-17 86×61×13.2 70.6×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-18 75×52×12 60×32.6 0.4×0.4 KS0108 5V/3V parallel
128x64 CM12864-26 78×70×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-28 93×70×14 70.8×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-30 93×70×13 73×39 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-31 54×50×7.5 40.5×28.8 0.29×0.36 IST3004 3V serial/parallel
128x64 CM12864-32 93×70×10.2 70.5×38.6 0.48×0.48 ST7565P 3V serial/parallel
128x128 CM128128-1 106×92×14 73×73 0.49×0.49 T6963C 5V serial/parallel
128x128 CM128128-4 106×92×14 73×73 0.49×0.49 T6963C 5V serial/parallel
128x128 CM128128-6 72.1×65×8.3 48×48 0.33×0.33 ST7541 3V parallel
128x128 CM128128-8 50.0×45.8×7.7 31×30 0.19×0.19 ST7541 3V serial/parallel
160x128 CM16064-1 87×60×12.5 61.5×26 0.33×0.33 T6963C 5V/3V parallel
160x128 CM160128-2 129×102×12 101×82 0.54×0.54 T6963C 5V/3V serial/parallel
160x160 CM160160-1 67×63×7.5 46×46 0.245×0.245 320A 3V parallel
160x160 CM160160-3 77×73.5×7.8 58×58 0.32×0.32 UC1698 3V parallel
192x64 CM19264-1 130×65×12.2 104×39 0.458×0.458 KS0108 5V/3V parallel
192x64 CM19264-4 120×62×12.2 104×39 0.458×0.458 KS0108 5V/3V parallel
192x64 CM19264-6 100×60×13 84×31 0.36×0.36 KS0108 5V/3V parallel
To be continue ---------
