China Supplier 1601 STN Character LCM
US$ 3.5 - 4.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Caijing
Model Number:
CM161-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20x4 Character Lcd Module Support 3spi or I2C Interfaces With AIP31068 ControllerUS$ 4.5 - 5.5MOQ: 1 Piece -
240128 Stn Lcd Display Module T6963cUS$ 21 - 23MOQ: 1 Piece
-
240x128 Dots Matrix Cog Lcd Display Module 3V,UC1698U ControllerUS$ 21 - 23MOQ: 1 Piece
-
320240 Cog Lcd Module Display With Led Backlight Support Serial Parallel InterfaceUS$ 39 - 41MOQ: 1 Piece
-
16x1 Character Lcd Support 3SPI or IIC Interfaces With AIP31068 ControllerUS$ 1.75 - 2.5MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Caijing
Model Number
CM161-2
Type
COB
China supplier 1601 STN character LCM
Product Description

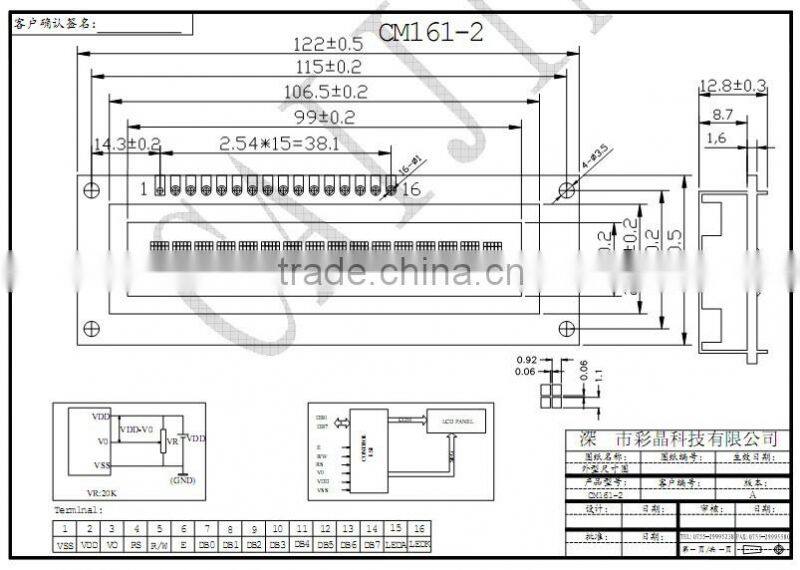

Model no: CM161-2SLYA
Number of characters: 16 x 1
Size: 122*33*12.8mm
VA: 99*13mm
Drive method: 1/16-duty, 1/5-bias
Viewing angle: 6:00
Display: STN yellow-green or blue model
Voltage: 5 or 3.3V
Controller: SPLC780
Top: -20-+70ºC
TST: -30-+80ºC
Certifications

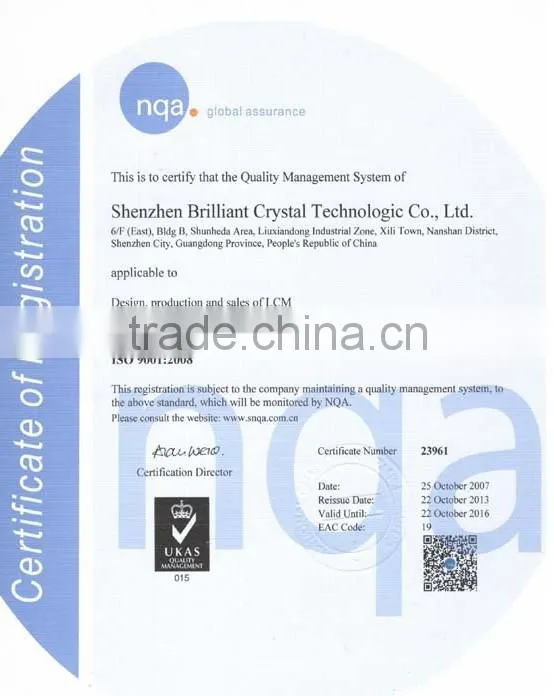

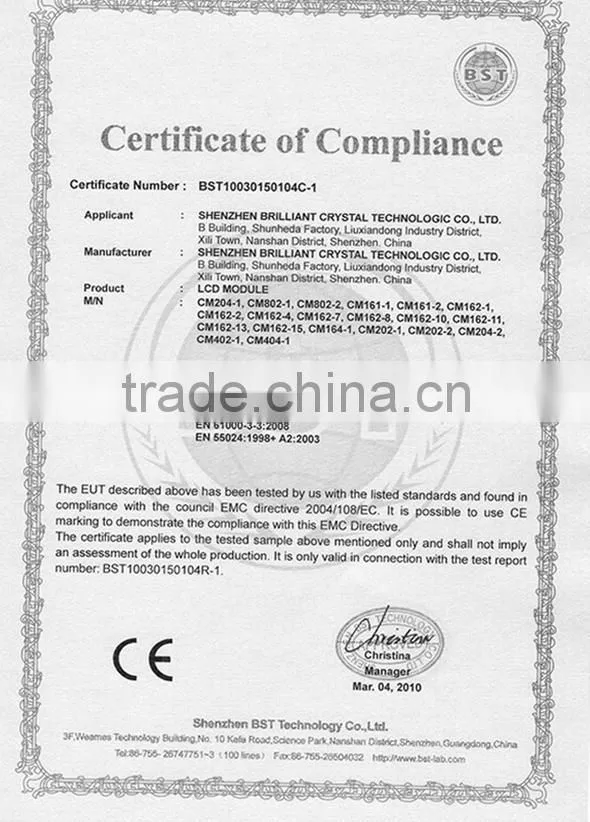

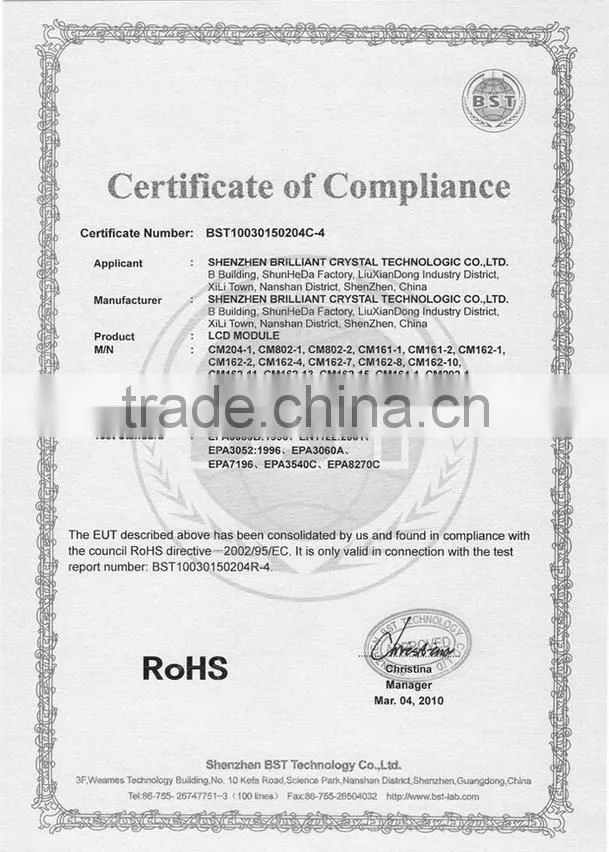

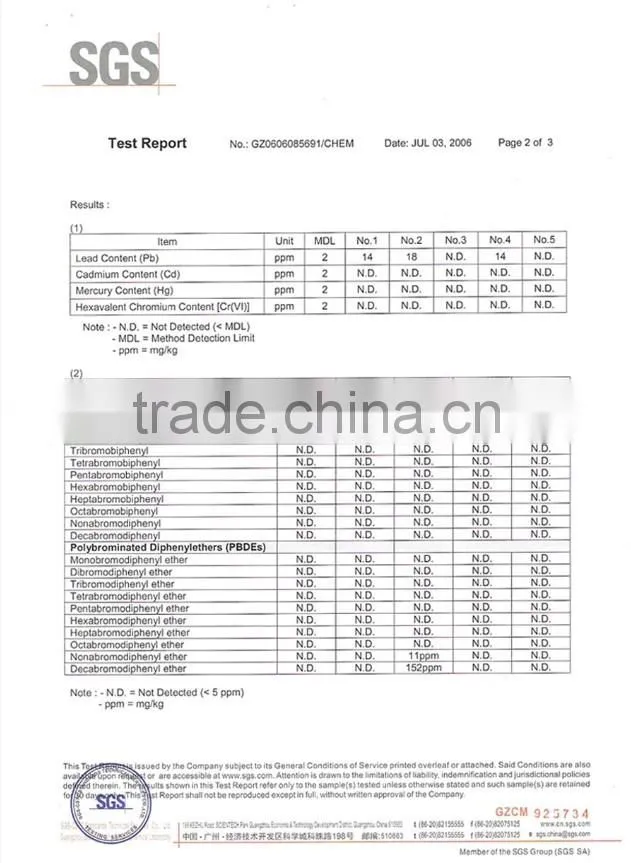

Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.
Company Advantages
14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free samples are available for some styles
Related Products
About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.
| Display Content | Model No. | Outline Size(mm) | V.A(mm) | Dots Size | Controller | Voltage | Interface |
| 8x2 | CM802-1 | 40×35×7 | 28×14 | 0.5×0.5 | SPLC780 | 5V/3V | serial/parallel |
| 8x2 | CM802-2 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 8x2 | CM802-6 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 12x1 | CM121-1 | 103×35×11 | 76×25 | 1×1.4 | SPLC780 | 5V/3V | serial/parallel |
| 16x1 | CM161-1 | 80×36×12 | 64×13.8 | 0.55×0.7 | SPLC780 | 5V/3V | serial/parallel |
| 16x1 | CM161-2 | 122×33×14 | 99×13 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-1 | 122×44×13.4 | 99×24 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-3 | 84×44×13.7 | 62×18 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-4 | 80×36×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-10 | 84×44×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-11 | 80×36×12.5 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-12 | 85×36×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-13 | 80×36×12.5 | 64.6×13.8 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-15 | 85×29×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-17 | 85×36×14 | 62×16 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-36 | 80x36x11.3 | 64.9x15.9 | 0.54x0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x4 | CM164-1 | 87×60×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 16x4 | CM164-2 | 87×55×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-1 | 116×37×12.5 | 83×18.5 | 0.61×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-2 | 180×40×14.3 | 148×23 | 1.1×1.12 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-3 | 116×32.5×7.9 | 87.8×17.5 | 0.553×0.569 | SPLC780 | 5V | serial/parallel |
| 20x2 | CM9079 | 123×25×12.7 | 85×12.9 | 0.55×0.65 | SPLC780 | 5V | serial/parallel |
| 20x4 | CM204-1 | 98×60×14 | 76×26 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 20x4 | CM204-2 | 146×62.5×13 | 123×42.5 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 40x2 | CM402-1 | 182×33×11.5 | 154×15.8 | 0.6×0.65 | SPLC780 | 5V | serial/parallel |
| 40x4 | CM404-1 | 190×54×13.6 | 147×29.5 | 0.5×0.55 | SPLC780x2 | 5V/3V | serial/parallel |
