Help CenterDry Blowing Sand Core Shooting Machine
Related Products

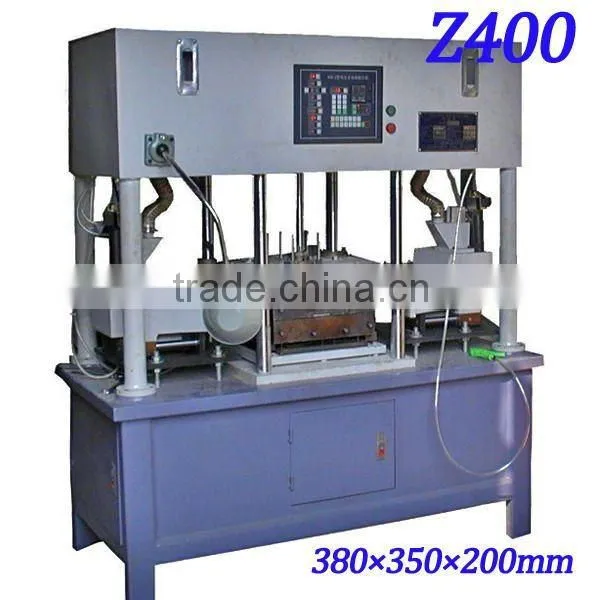

Dry sand core making machine
1. Application:
This machine is mainly used to make the sand core & shell core for the sand casting industries.
2. Machine Features:
1) Horizontal parted type, fetching core manually.
2) Three kinds of function:manual, single-circle automatic, automatic circulation.
3) Can shooting sand simultaneously in two sides, big moulding board, electric heating, high efficiency.
4) Apply to good fluidity coated sand.
3. Specification:
Max. weight of sand core |
3.2kg |
Max. size of core box(L×W×H) |
380×350×200mm |
Left & right stroke of shooting head |
125 mm |
Max. distance of working table |
420 mm |
Max. press-down effective clamping force of shooting head |
4900N |
Max. effective vertical clamping force |
4900N |
Max. vertical clamping stroke |
250 mm |
Compressed air pressure |
(0.45-0.6)Mpa |
Capacity of sand hopper |
(50×2)kg |
Free air consumption |
0.1m2 |
Size of heating board (L × W) |
(300×220)mm |
Net weight |
425 kg |
Electric power |
6.4kw |
Overall size of machine (L × W × H) |
(1420×680×1650)mm |
Any further request, pls contact me.
