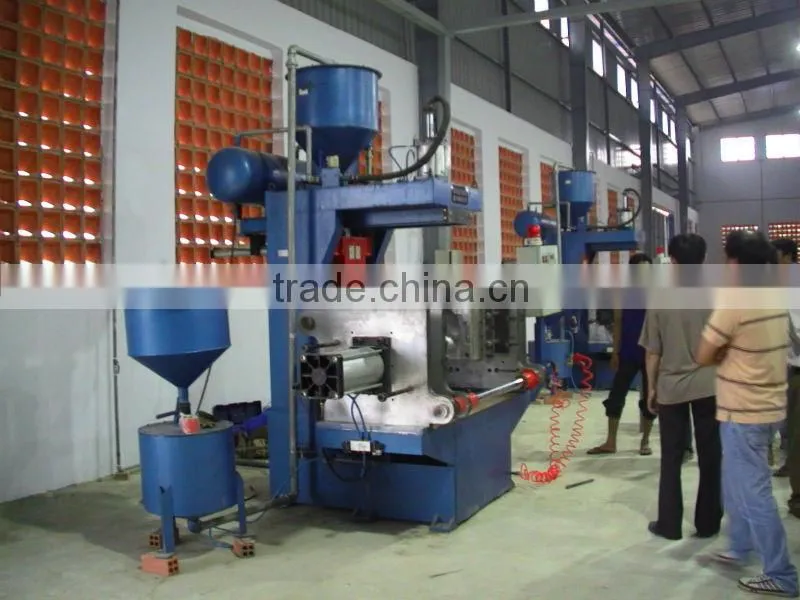

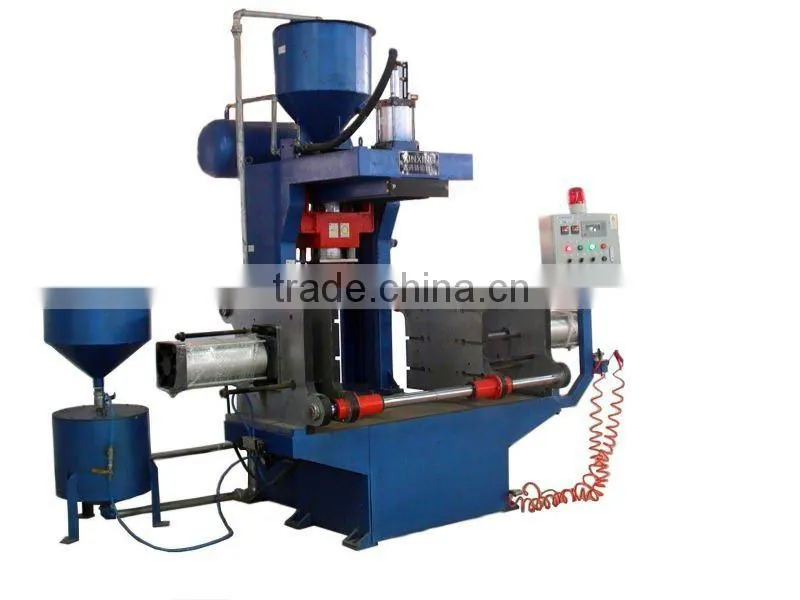

Z9606A Core Shooter Machine
1. Application:
This machine is mainly used to make the solid sand cores, vertical parted type, single action dies
2. Main technical parameter:
Item |
Parameters |
Max. mould size |
600×600mm |
Max. weight of sand core |
15Kg |
Stroke of mould closing cylinder |
350mm |
Opening size of pattern plate |
1300mm |
Max. heating power of the sand box |
20KW |
Compressed air pressure |
0.5~0.6Mpa |
Total air consumption |
0.3 m3/ per sand shooting |
Power source |
AC3 380V 50HZ |
Sand hopper capacity(Extra large type) |
200 Kg |
Any further request, pls contact me
Xinxing casting which is specializes in various kinds of casting equipment.We can provide the whole production process equipment and technical support.
