Z863D Core Shooter
1. Machine features:
1) Vertical parted type, catching core in level line, and with core conveyor(semi-automatic without conveyor ).
2) Three kinds of functions: manual, single-cycle automtic,automatic circulation .
3) Importing pneumatic, electric component, be controled by Japanese Mitsubishi PLC, high dependability.
4) Two-way air cylinder to eject core, and with bottom core pulling, suitable for making various kinds of sand core.
5) It’s convenient to install mould, and can regulate from side to side,from head to foot.
6) The sand storage hopper has vibration mechanism,especially suitable for the bad mobility resin sand.
2. Main technical parameter:
Max. mould size |
350×300×200(mm) |
Period circle |
30s |
Max. closing mould distance |
300mm |
Impetus (pneumatic)
|
0.4-0.8MPa |
Max. sand core weight |
3kg |
Loose core stroke |
60mm |
Heating power |
12×0.8KW |
Machine weight |
~1950kg |
Heating plate size (L×H) |
350×200(mm)
|
Max. core-box size(L,W,T) |
350×300×200(mm) |
|
Production rate
|
40~90pcs/hour |
Shooting head press stroke |
≤50(mm) |
Mold opening stroke |
≤300(mm) |
Ejecting core cylinder stroke |
≤30(mm) |
Loosing core cylinder stroke |
≤150(mm)
|
Sand storage hopper capacity |
52kg |
|
Vibrating motor power
|
0.15KW
|
Using compressed air pressure |
Max:0.7 Mpa |
|
Power supplies
|
3 phase AC,380V
|
External dimension of the machine(L×W×H)
|
2160×1310×2100(mm)
|
Machine details:
1. Power control cabinet
2. Shooting head & mould template
3.Air cylinder
4. Sand hopper

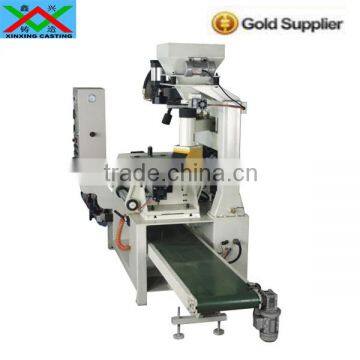

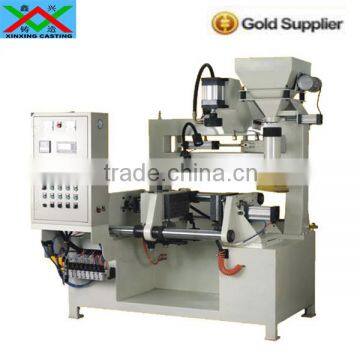

5. Machine complete looking
6. Sand core samples which made for clients before
Our services:
1. Reply your inquriy and answer your questions at any time you need.
2. We have more than 20 years casting experience which can supply you the professional casting solution, help you to use low investment to get great profit.
3. The machines can be customized, manufactured by high quality material, durable.
4. We had sold these kind of machine to many countries such as Vietnam, Azerbaijan, Argentina,etc. Get good reputation.
Xinxing casting which is specializes in various kinds of casting equipment.We can provide the whole production process equipment and technical support.
(Any further request, pls contact me).
