Semi-auto Core Shooting Machine
1. Machine Feactures:
1) Vertical assigning type, fetching core in level line.
2) Three kinds of functions: Manual, Single-cycle automatic, Automatic circulation .
3) The two-way air cylinder for ejecting cores, suitable for making various kinds of sand core.
5) Convenient to install mould, and can be regulated from side to side, from head to foot.
6) The sand tube has vibration organizations, especially suitable for the bad mobility resin sand.
2. Technical Parameter:
Max. mould size |
350×300×200(mm) |
Max. close mould distance |
300mm |
Max. sand core weight |
3kg |
Heating power |
6×2×0.8kw |
Periods circle |
30s |
Impetus(pneumatic impetus) |
0.4-0.8MPa |
Core -pulling process |
60mm |
Machine weight |
1800kg |
Machine details:
1. Power control cabinet
2. Shooting head & mould template
3.Air cylinder
4. Sand hopper
5. Machine complete looking

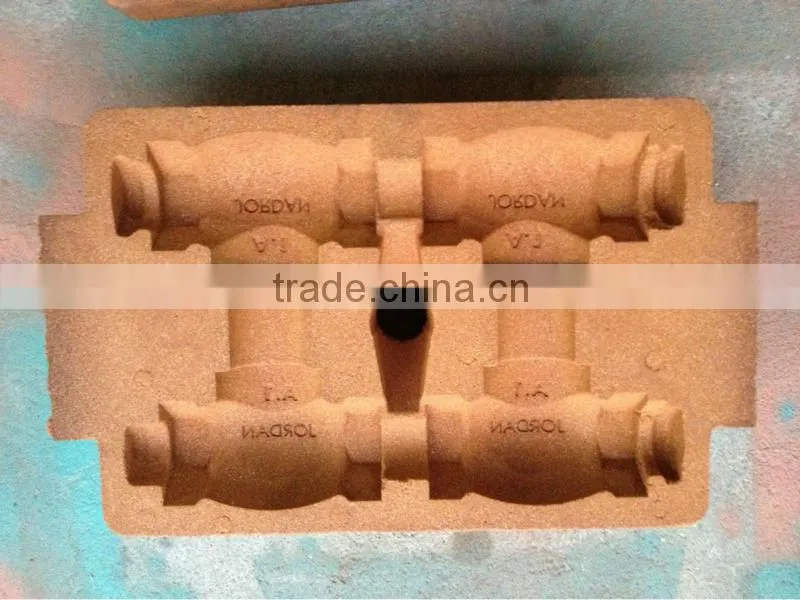

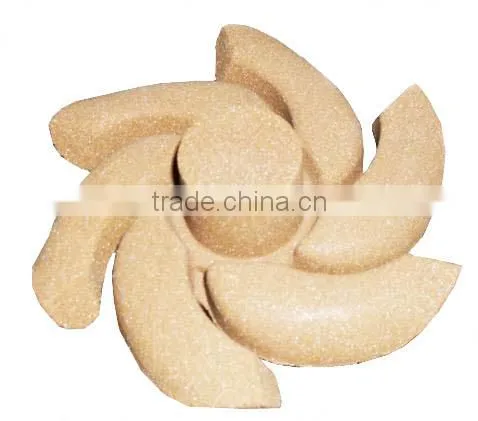

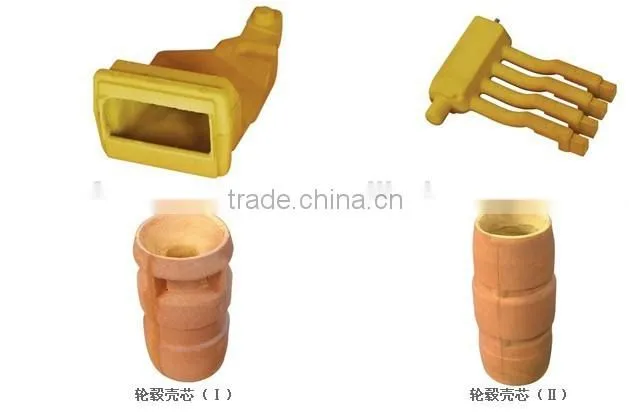

6. Sand core samples which made for clients before
Our services:
1. Reply your inquriy and answer your questions at any time you need.
2. We have more than 20 years casting experience which can supply you the professional casting solution, help you to use low investment to get great profit.
3. The machines can be customized, manufactured by high quality material, durable.
4. We had sold these kind of machine to many countries such as Vietnam, Azerbaijan, Argentina,etc. Get good reputation.
Xinxing casting which is specializes in various kinds of casting equipment.We can provide the whole production process equipment and technical support.
