Semi-auto Pick and PlaceRobot Machine/SMD LED Mounting Machine with 6 Heads
Features for Semi-auto Pick and PlaceRobot Machine/SMD LED Mounting Machine with 6 Heads :
1) The platform transmission uses the import edlinear guide rail and lead screw in
combination with the Japan original Panasonic servo drive ensuring the high-speed
station arity and control precision of the platform.
2) The transmission ofthe X and Y shafts uses the imported high-precisiong round lead
screws and linear guide rails in combination with the Japan Panasonic servo drive
ensuring the high precision and high speed of mounting.
3) 6 sets of high-speed mounting heads works imultaneously.The sucking heads use
high-precision durable spline shafts.
4) Easy operational program,much more convenient,automatic vision make sposition fixing more accurate and convenient.
5) Multi Feeder optional,canmeet different kinds of LED mounting.
6) Powerful software adopts numbers and images to display the program coordinate,easy
and more convenient.
7) Software adopts data system,and store different types of PCB for convenient adjustmen
t,just need to programmin gone time for new products touseforever.
8) Platform:Yaxis,X axis can be moved manually,speed adjustable,can achieve arbitrary
point manual arrived,convenient programming.
9) LED Pick& Place Machine use imported vacuum detection system,it can check the sucti
onaccurately to prevent material leakage and throwing effectively.
10) Internalnegative pressure system:lownoise,long service life and vacuum pressurecons
tant.
11) Standard setting:1PC,6 mountingheads,18nozzles.
12) Optinal:8mm,12mm,16mm24m mautomatic feeder,different nozzles,industrial pump,
aircompressor.
Specifications for LED Light Pick and Place Robot Machine/LED Mounting Machine:
| Maximum board size | 1200*300mm |
| Model | CWTP-6H |
| Max moving range | X: 1210mm, Y:330mm, Z:10mm |
| Typical mounting speed | 20000cph |
| Max mounting speed | 40000cph |
| Mounting accuracy | ±0.05mm |
| Position menthod | Visual position |
| Component | 0603 above SMD component & LED |
| Feeders | 8/12/16/24mm(Optional) |
| Nozzle | Juki 504/505/506 |
| Operation system | Windows XP |
| Compressed air | Vacuum air in machine |
| Power | 110-240V |
| Dimension | 2000*930*1450mm |
| Weight | 750kgs |
| Program method | Automaticdataimport/videostudy/keyboardinput |

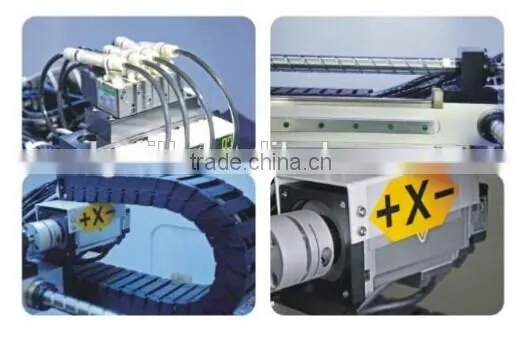

Pick and place robot machine local photos

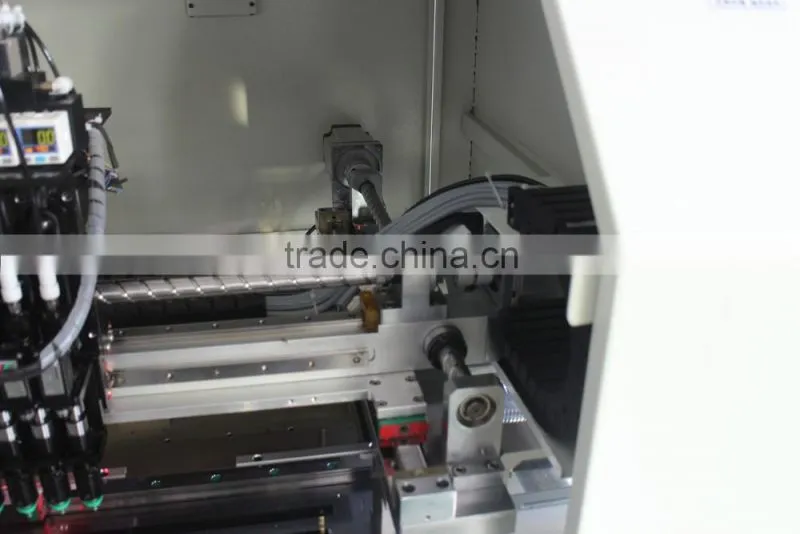

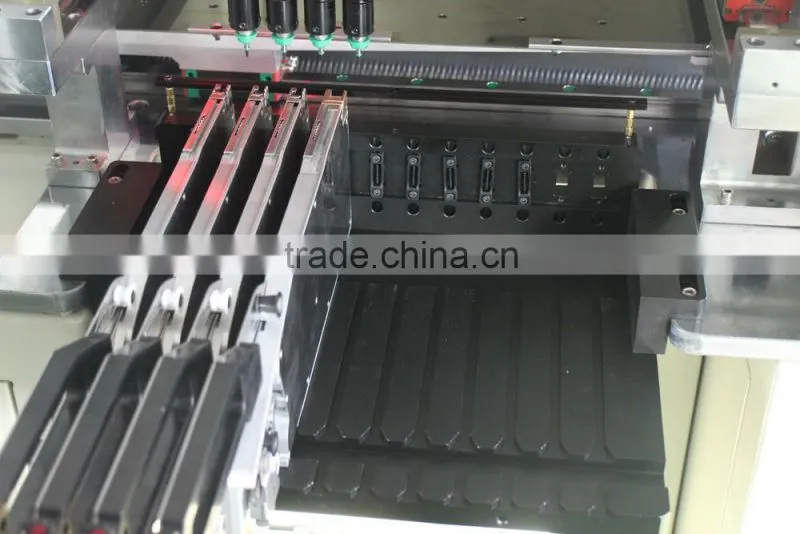

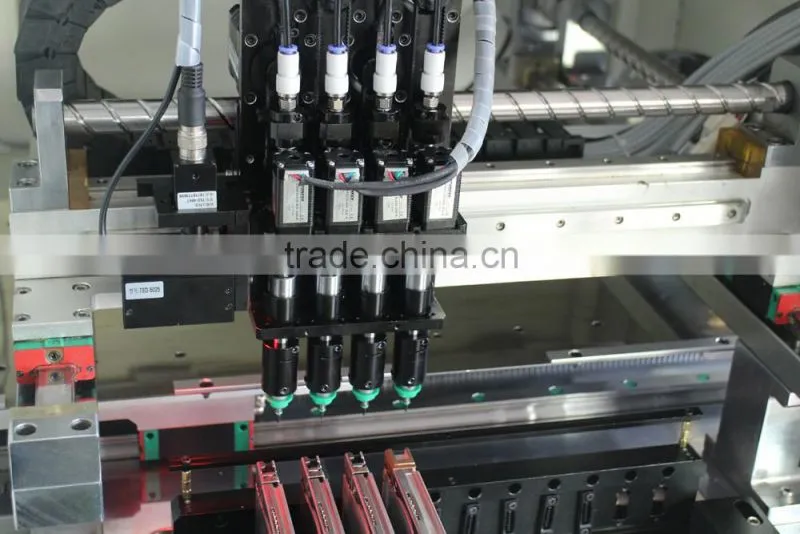

LED pick and place robot machine details:
Package : plywood case
Why us :
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
