LED Light Pick and Place Machine/LED Mounter
Specifications for LED Light Pick and Place Machine/LED Mounter:
| Maximum board size | 1200*300mm |
| Model | CWTP-4H |
| Max moving range | X: 1210mm, Y:330mm, Z:10mm |
| Typical mounting speed | 20000cph |
| Max mounting speed | 28000cph |
| Mounting accuracy | ±0.05mm |
| Position menthod | Visual position |
| Component | 0603 above SMD component & LED |
| Feeders | 8/12/16/24mm(Optional) |
| Nozzle | Juki 504/505/506 |
| Operation system | Windows XP |
| Compressed air | Vacuum air in machine |
| Power | 110-240V |
| Dimension | 2000*930*1450mm |
| Weight | 750kgs |
| Program method | Automaticdataimport/videostudy/keyboardinput |
Features for LED Light Pick and Place Machine/LED Mounter:
1) Theplatformtransmissionusestheimportedlinearguiderailandleadscrewin
combinationwiththeJapanoriginalPanasonicservodriveensuringthehigh-speed
stationarityandcontrolprecisionoftheplatform.
2) ThetransmissionoftheXandYshaftsusestheimportedhigh-precisiongroundlead
screwsandlinearguiderailsincombinationwiththeJapanPanasonicservodrive
ensuringthehighprecisionandhighspeedofmounting.
3) 4setsofhigh-speedmountingheadsworksimultaneously.Thesuckingheadsuse
high-precisiondurablesplineshafts.
4) Easyoperationalprogram,muchmoreconvenient,automaticvisionmakespositionfixin
gmoreaccurateandconvenient.
5) MultiFeederoptional,canmeetdifferentkindsofLEDmounting.
6) Powerfulsoftwareadoptsnumbersandimagestodisplaytheprogramcoordinate,easy
andmoreconvenient.
7) Softwareadoptsdatasystem,andstoredifferenttypesofPCBforconvenientadjustmen
t,justneedtoprogrammingonetimefornewproductstouseforever.
8) Platform:Yaxis,Xaxiscanbemovedmanually,speedadjustable,canachievearbitrary
pointmanualarrived,convenientprogramming.
9) LEDPick&PlaceMachineuseimportedvacuumdetectionsystem,itcancheckthesucti
onaccuratelytopreventmaterialleakageandthrowingeffectively.
10) Internalnegativepressuresystem:lownoise,longservicelifeandvacuumpressurecons
tant.
11) Standardsetting:1PC,4mountingheads,12nozzles.
12) Optinal:8mm,12mm,16mm24mmautomaticfeeder,differentnozzles,industrialpump,
aircompressor.

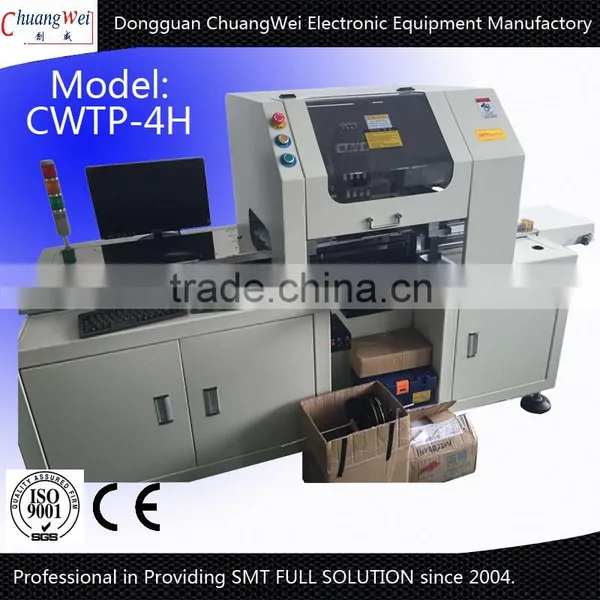

Pick and place machien local photos
Package : plywood case
CE certificate for pcb depaneling machine :
Why us :
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
