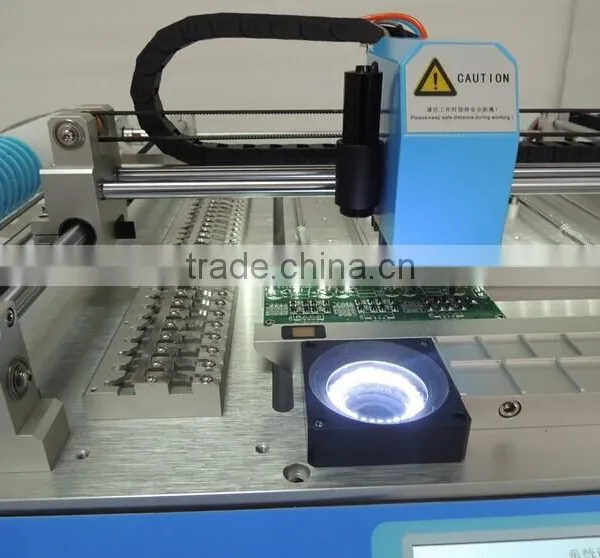

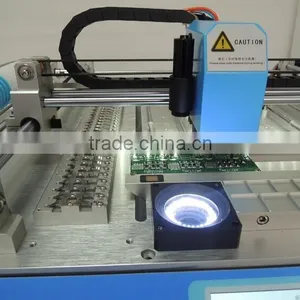

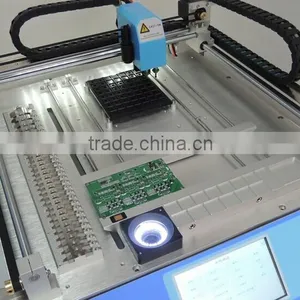

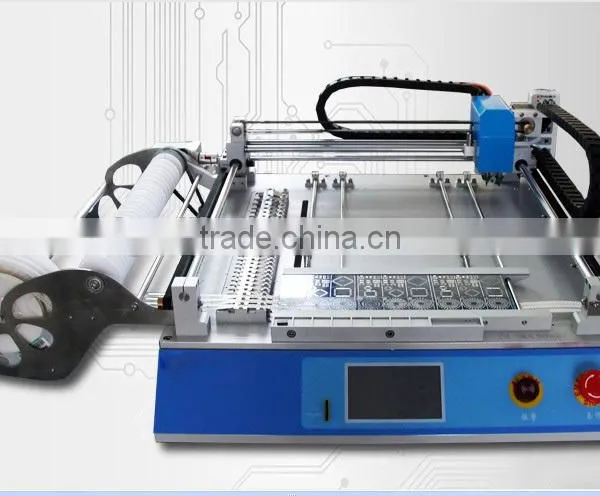

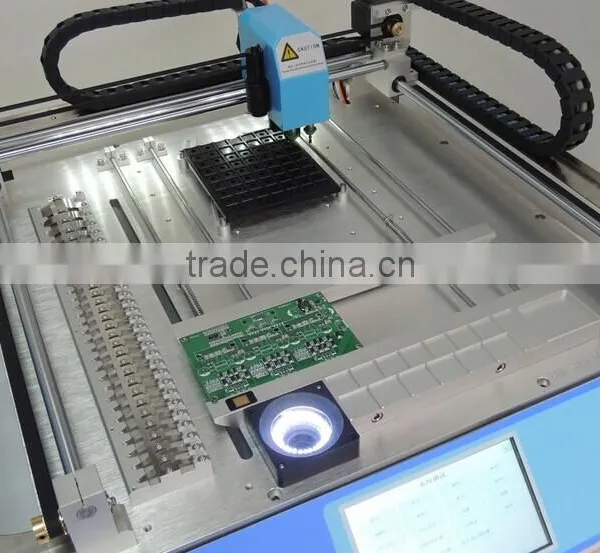

mini desktop led pick and place machine with visual system
Features for mini desktop led pick and place machine with visual system :
1) The machine have Chinese or English version
2) Cover foil automated peel away device: Very convenient, and could make sure cover
foil peel away smoothly and without jerking from the tape, which could effectively
prevent components jump out of the tape and jam the machine.
3) 2 placement heads:2 components could be picked and placed at the same time
4) Place components on the correct footprints with 360 degree orientation & required
precision.
5) Automatic vacuum detection function with warning, which could automatically
recognize missing components.
6) Could mount for 0402 and IC components with required precision, without vision
system. The self-developed laser positioning principle is quite effective.
7) Integrated operating system, no need to connect a separate computer. 8G SD Card
would be big enough for you to setup hundreds of thousands programs.
8) Integrated type of feeders: No need to buy extra mobile feeder arrays to save cost.
9) Easy and simple editing & storing for programs, fast changeover from one placement
program to another.
10) Online programming function.
11) Smart model, convenient transportation.
12) Working power 200W: Environmental protection and energy saving.
Specifications for mini desktop led pick and place machine with visual system:
| Maximum board size | 10*10mm(min); 318*415mm(max) |
| Model | CWTP-2D |
| Max moving range | 420*460mm |
| Max mounting speed | 6000cph |
| Mounting accuracy | ±0.025mm |
| Vacuum pump quantity | 2 |
| Component | 0402-5050,0603,1206,0805,SOP, QFN, .. |
| Feeders | 37 |
| Components supply configuration | Tape reel, bulk package (IC) |
| Tape width | 8mm, 12mm, 16mm |
| Vacuum pump | 15-92KPA (Mute type pump) |
| Power | 110-240V |
| Dimension | L 960mm×W 705mm×H 335mm |
| Weight | 65kgs |
| Average working power | 200W |
mini desktop led pick and place machine with visual system package:
