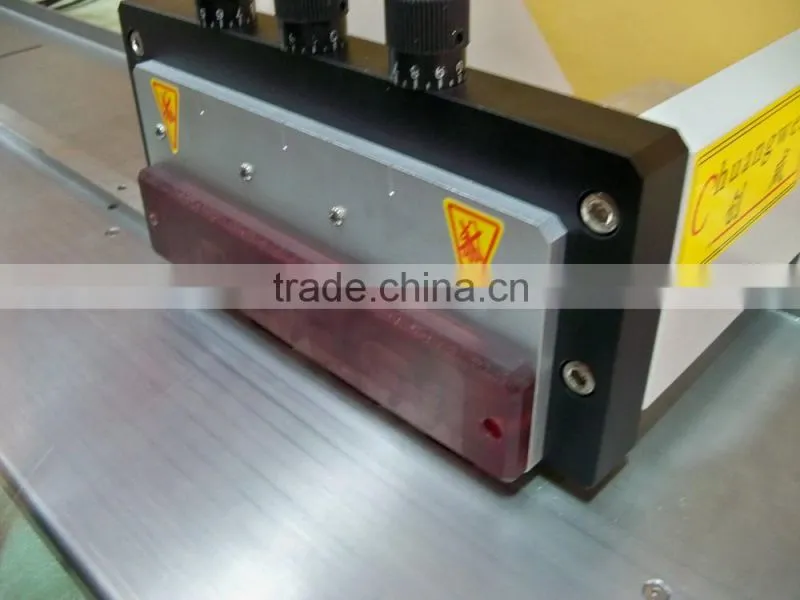

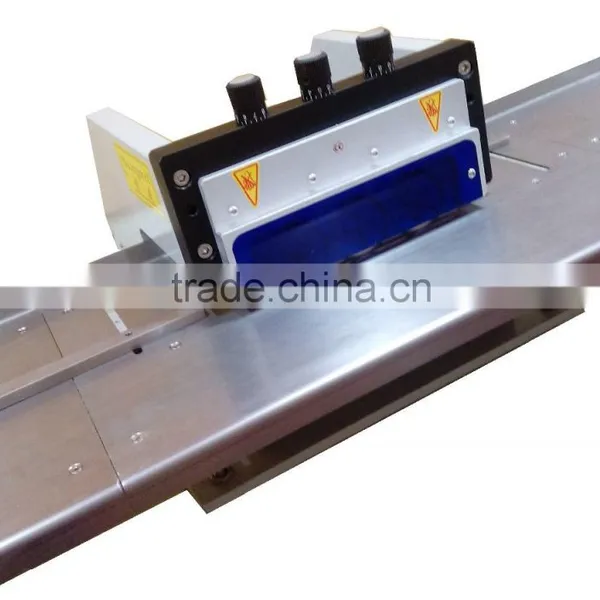

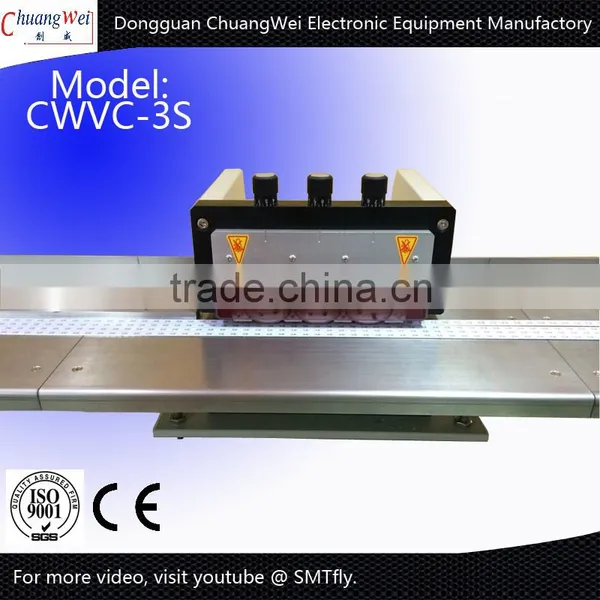

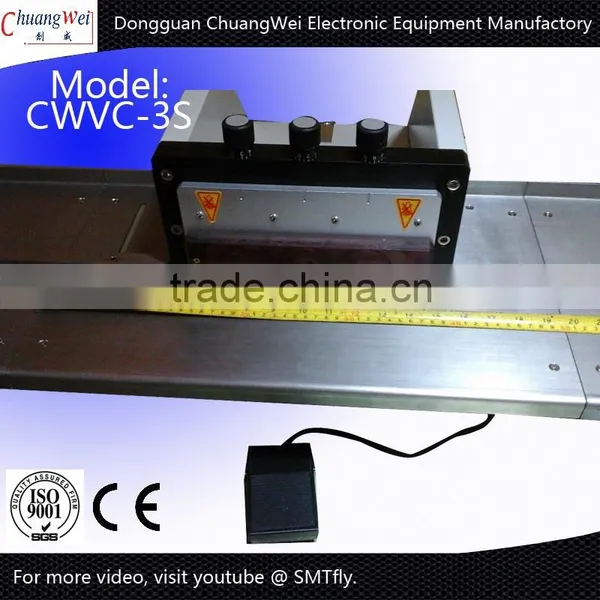

LED PCBA cutting machine CWVC-3S :
Product /Features:
1. Thus the edge of the board and its surface are very smooth without warping.
2. because of the multiple cutting, cutting process is very smooth and greatly improves the capability of position of V-CUT groove.
3. All the cutting blades are calibrated by Excitation double-frequency laser interference measurement instrument. Ensure that the latter knife can accurately continue to cut in the slots which already cut by the former knife. the jitter of knife point is less than 0.02mm. Ensure perfect cutting quality.

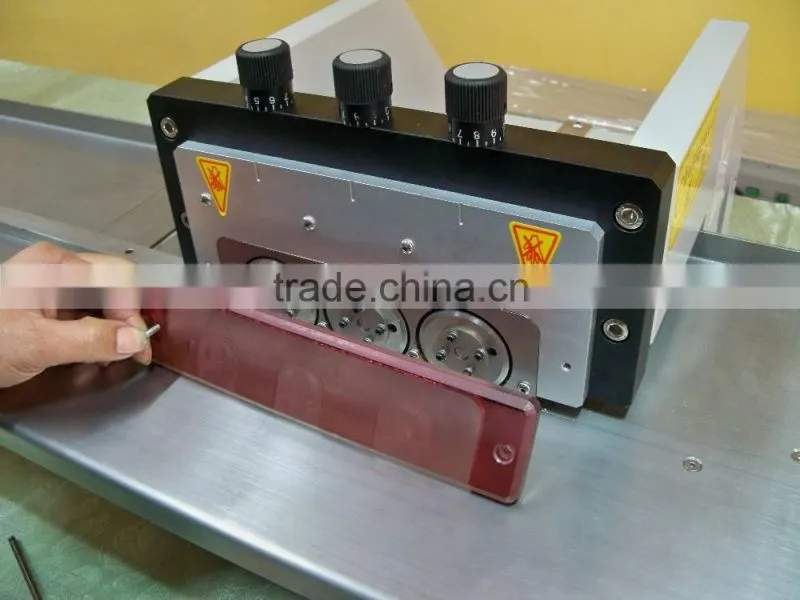

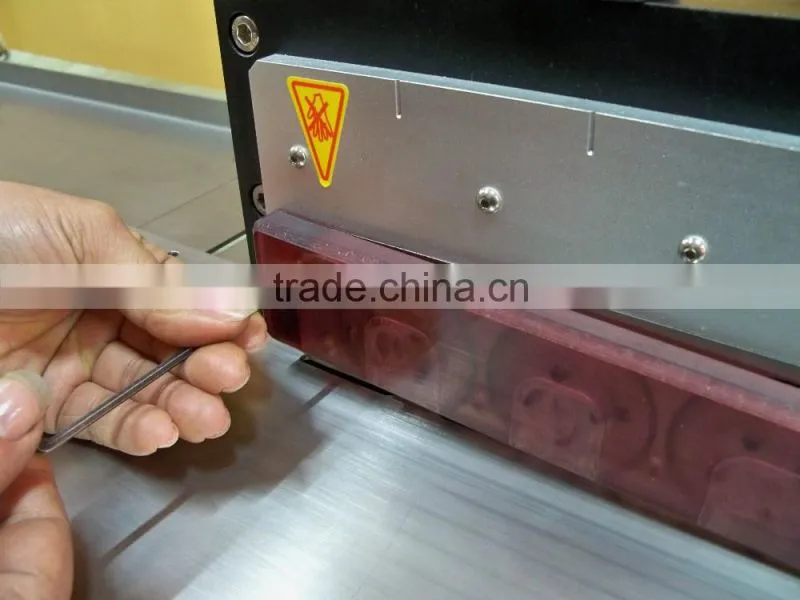

4Can be adjusted the above and below round knife precisely
5. Circular knife can turn mill reoccupy many times, the shape of cutter can be customized.
6. X, Y axis can free adjustment and make the cutting accuracy to the highest.
Specification for PCBA cutting machine :
Platform: 1.2M length
PCBA Cutting Machine Size: 40*40*34 cm
Platform size : 150*27*20 cm
The Longest Minimize: No limited
Minimize Speed: 0-400mm/s
Minimize thickness: 1.0-3.5mm
PCBA Cutting Machine Weight: 45Kg
Safty :
Office :

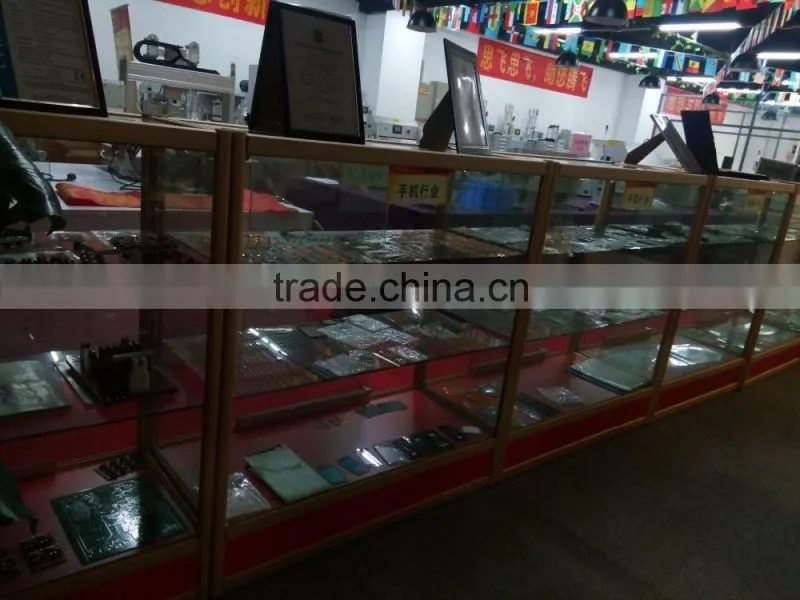

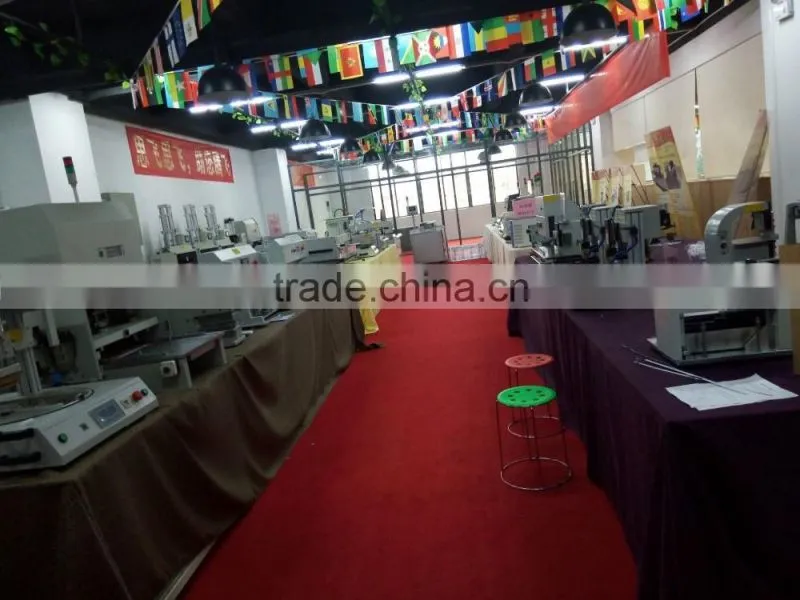

Show room :
Samples from customers :
