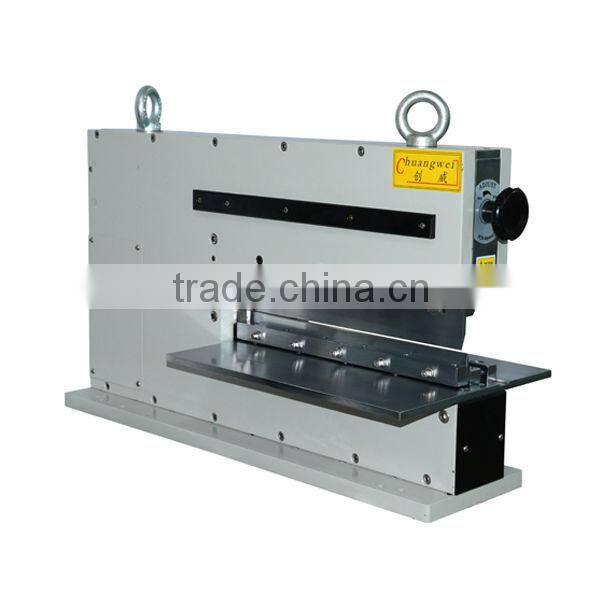

Help CenterV-CUT PCB Depaneling Machine**Pneumatically Driven and Electromagnetic Valve Control**CWVC-2L
Related Products
-
Laser Marking Machine/laser Engraving MachineUS$ 121 - 121,211MOQ: 1 Set -
Fixture for Pulse Heat Bonding MachineUS$ 1,221 - 12,331MOQ: 1 Set
-
Thermode Head for Hot Bar Soldering MachineUS$ 1,221 - 12,331MOQ: 1 Set
-
Soldering Machine PriceUS$ 1,221 - 12,331MOQ: 1 Set
-
Laser Soldering Machine, Price Hot Bar Soldering Machine, SMD /LED SolderingUS$ 1,221 - 12,331MOQ: 1 Set

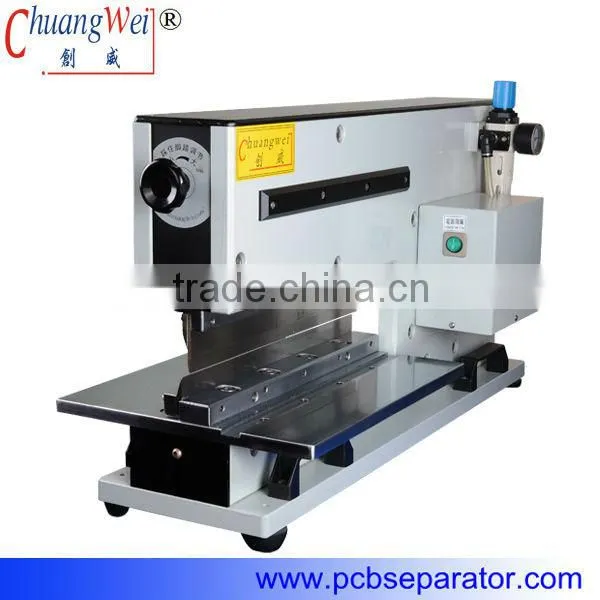

***V CUT PCB depaneling machine***
1.Easy maintenance and operation
2.Thin PCB even to 0.3mm can be depaneled safely
3.Depaneling process without vibrations due to pneumatic drive unit
***V CUT PCB depaneling machine specifications***
| Model | CWVC-2L |
| Max. PCB depaneling length | 330mm(Can custom made) |
| PCB depaneling thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB depaneling speed | due to operator skilled level |
| PCB depaneling machine size | 620*230*400mm |
| PCB depaneling Machine weight | 165kg |
***V CUT PCB depaneling machine fetures***
1.Pneumatically driven and electromagnetic valve control.
2.Depaneling process without vibrations due to pneumatic drive unit .
3.Depaneling PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be depaneled safely.
4.Depaneling operation is that operator stamps the foot pedal to Depanel PCB.
5.Highest components near the v groove of PCB can be up to 70mm.
6.The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7.Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
***V CUT PCB depaneling machine operation video please see below: (CWVC-2L)***
/watch?v=zuFZH9KcxZs
/watch?v=PWOYDPsJiUY
/v_show/id_XNTk2NzgxNDEy.html
/v_show/id_XNTk2NzU4NzA4.html
***Chuangwei PCB depaneling machine***
***From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kind PCB depaneling machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB depaneling machine base your actual requires.
***PCB depaneling machine mainly applies to depanel various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
***Chuangwei PCB depaneling machine***
Chuangwei PCB depaneling machine list:
Chuangwei PCB depaneling machine CE Certificate:
***Any interest please contact us freely.
***Chuangwei PCB depaneling machine***
