Thermode Head for Hot Bar Soldering Machine
hot bar soldering machine specification:
| Alignment mode | CCD+LCD monitor |
| Machine weight | 89kgs |
| Starting mode | two start buttom |
| Temperature settings | 2 |
| Working air pressure | 0.6-0.8Mpa |
| Thermode head size | Max 60*3mm |
| Working area | Max 200*170mm |
| Welding precision | pitch 0.2mm |
| Fixtures | 2 |
| Soldering time | 1~99.9s |
| Machine size | 660×660×700mm |
hot bar soldering machine Feature:elding machine circuit board/inverter welding machine circuit board
1. According to different products, optional temperature for your choice.
2. Unique material thermode head, ensure the average pressure
3. Has vacuum function, easier for adjustment and positioning.
4. NC temperature, clear and high precision
5. With digital pressure gauge, pressure range can be preset.
6. Microcomputer control, high accuracy and stable.
7. Programmable curve Including pre-heating and reflow soldering temperature.
8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.
9. Precise PID control, phase angle replace pulse drive.
10. Less Libration, less noise, avoiding voltage fluctuate
11. Rotable dual fixtures with high working efficiency
12. Touch screen input data, simplify the operation.
13. Real-time display temperature curve and temperature data
eldin
g machine circuit board/inverter welding machine circuit board

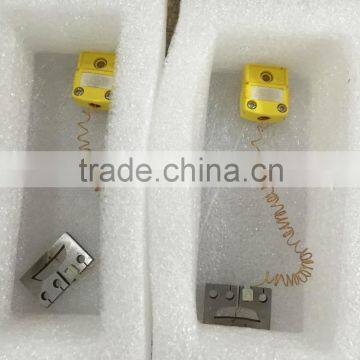

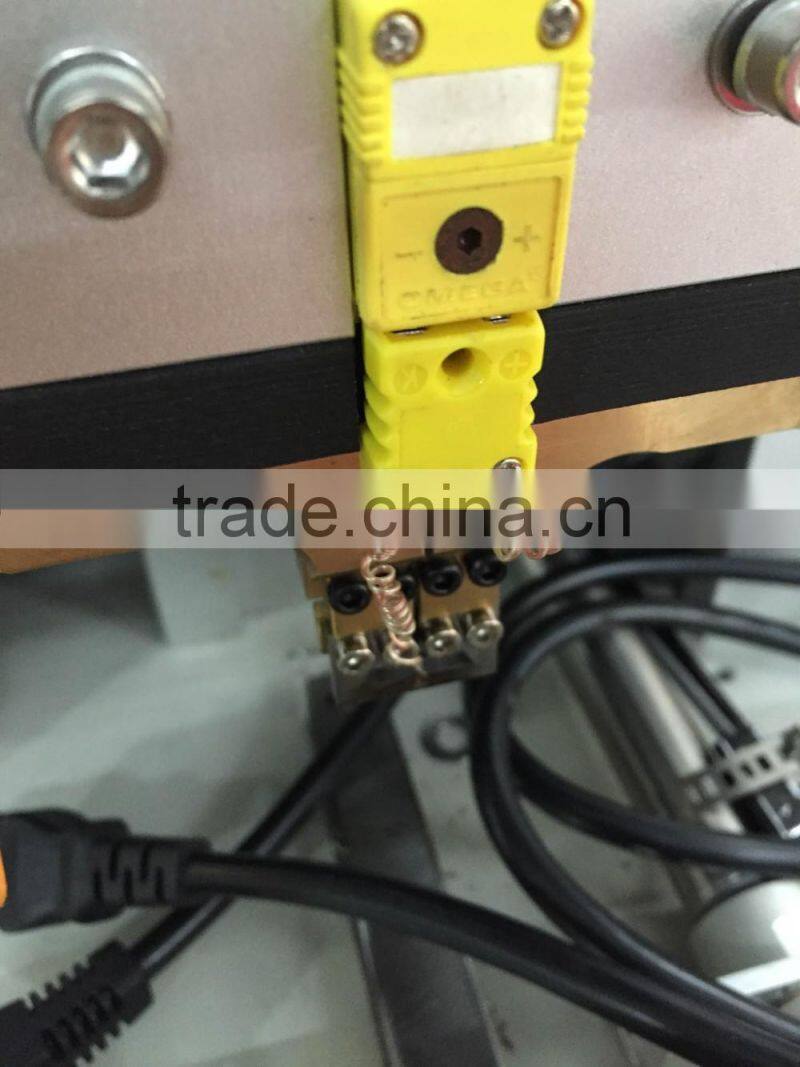

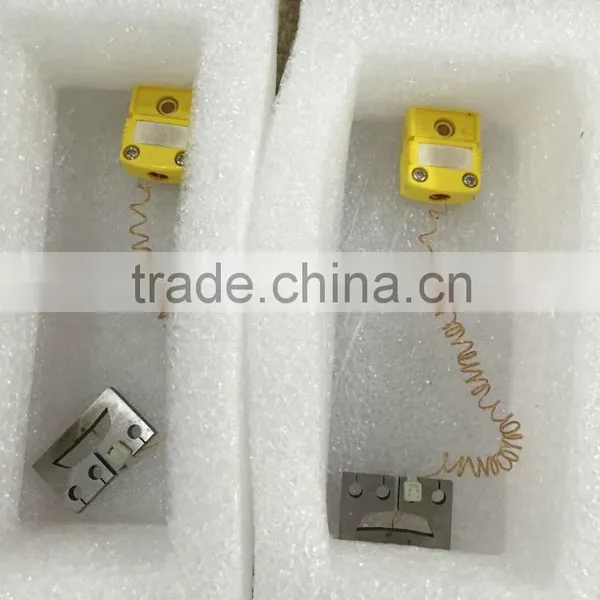

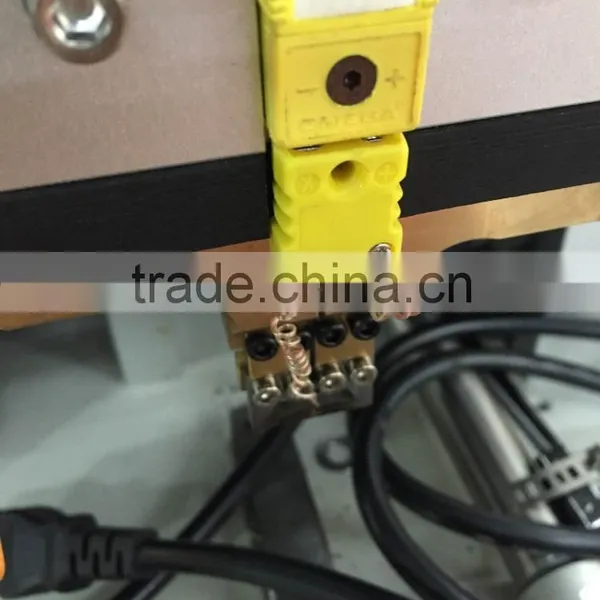

Thermode head photos:welding machine circuit board/inverter welding machine circuit board
elding machine circuit board/inverter welding machine circuit board
Why us:
1.Engineers available to service machinery oversea
2.Mature technique & forerunner to process makes high quality machinery
3.Effective customer service
4.One year warranty for the machines except accessories
OUR PARTNERS:welding machine circuit board/inverter welding machine circuit board
