laser pcb depaneling

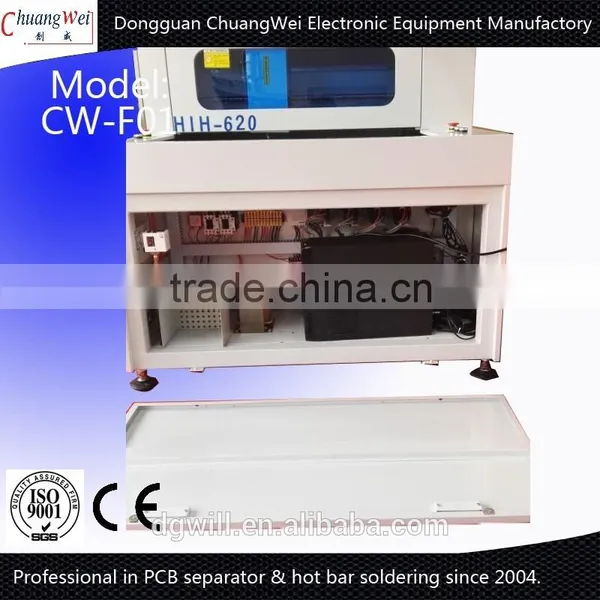

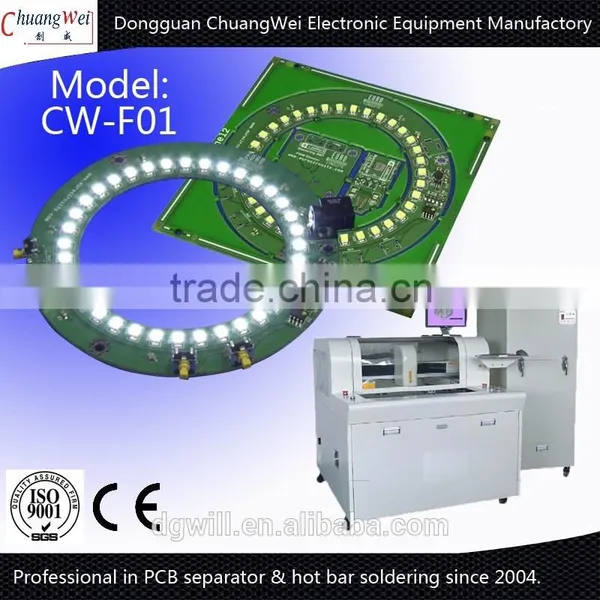

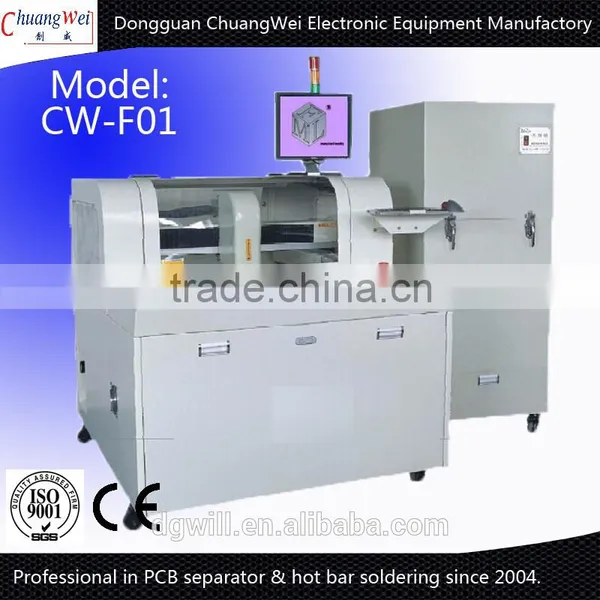

laser pcb depaneling CW-F01
laser pcb depaneling Technical specification:
|
laser pcb depaneling Hardware |
|
| System models / types | Windows XP Professional |
|
laser pcb depaneling Overall |
|
| FootPrint (LxWxH) | 800mm*850mm*1700mm |
| Weight (Approximate) | 150KG |
| Adjustable machine footings (for height) | 60~110mm |
|
laser pcb depaneling Manipulator |
|
| Manipulator Motor | Panasonic MINAS A5 series |
| Manipulator Repeatability | 0.001mm |
| Axis configuration | |
| Maximum Axis Travel (X,Y,Z) | 400mm*650mm*50mm |
| Work station | |
| Board Positioning | Fixture positioning, thimble universal positioning, vision correction |
| Loading/Unloading | manual |
| Routing Range | 320mm*320mm |
| Panel Thickness | 3mm |
| Fixturing | |
| Rigid Fixturing | Universal thimble & anti-static fixture |
| Top Clamp | Using hole positioning |
| Spindle Motor | |
| Power | 100W |
| Max. speed | 60000rpm/min |
| Cooling | Natural cooling and air-cooled |
| Router bit size | 3mm*3mm |
| Tool change | Use Special wrench |
|
laser pcb depaneling Routing capability |
|
| Max routing speed | 100mm/s |
| Repeatability | 0.02mm |
| Vacuum System | |
| Power | 0.75KW220V Single-phase motor |
| Filtration | Vertical and horizontal |
| Utilities | |
| Power | 1.5KW AC220V |
| Air supply | 4~5KG/cm2 |
laser pcb depaneling functions
1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6 , Powerful Dust Collection minimized dust adhesion on PCB .
7 , Developed high performance router bit that expanded bit life and relief littering .
8 , Cut down PCB cost because need not making V-groove on PCB
9 , Cut down running cost because without mold
laser pcb depaneling The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.
The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.

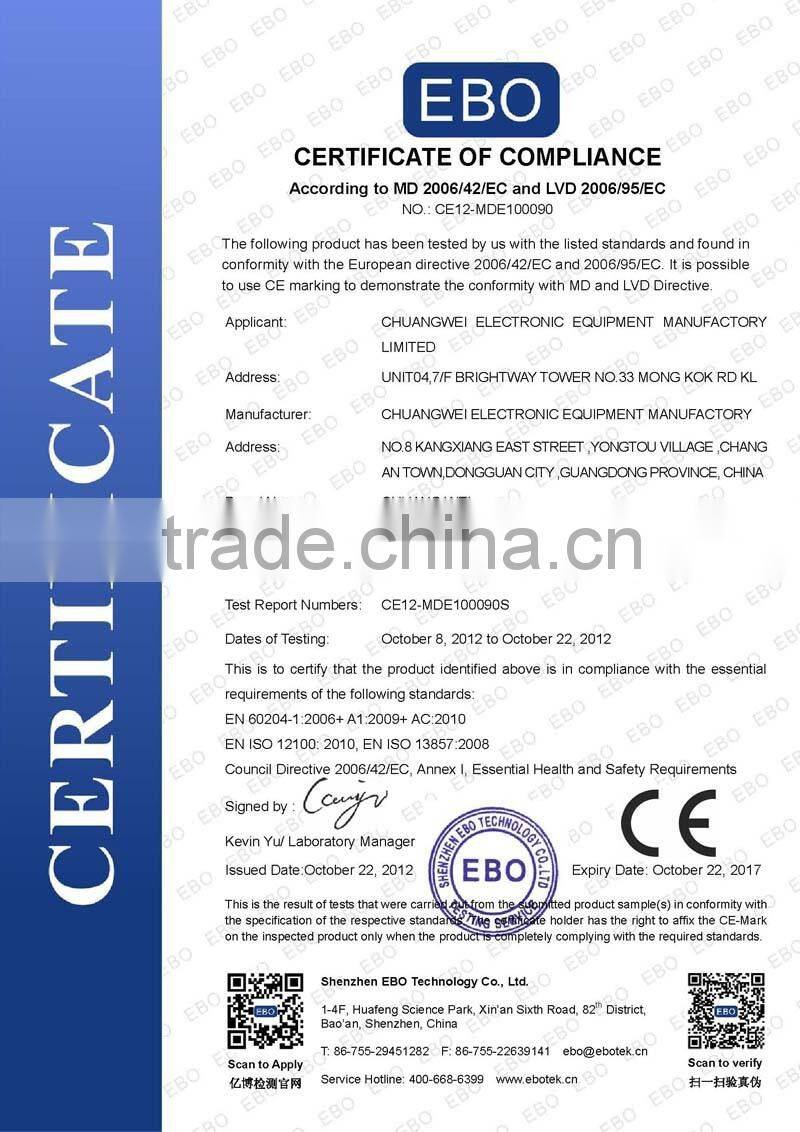

laser pcb depaneling Certification:
