Cnc Router Pcb

Name: Cnc Router Pcb
Brand: CHUANGWEI
SKU: 102493745
Availability: InStock

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CHUANGWEI

Model Number:

CW-F01

Contact Supplier Request Quote Chat Now

Dongguan Chuangwei Electronic Equipment Manufactory

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CHUANGWEI

Model Number CW-F01

cnc router pcb

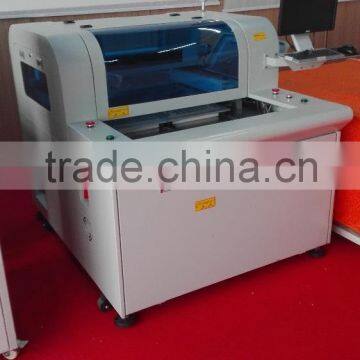

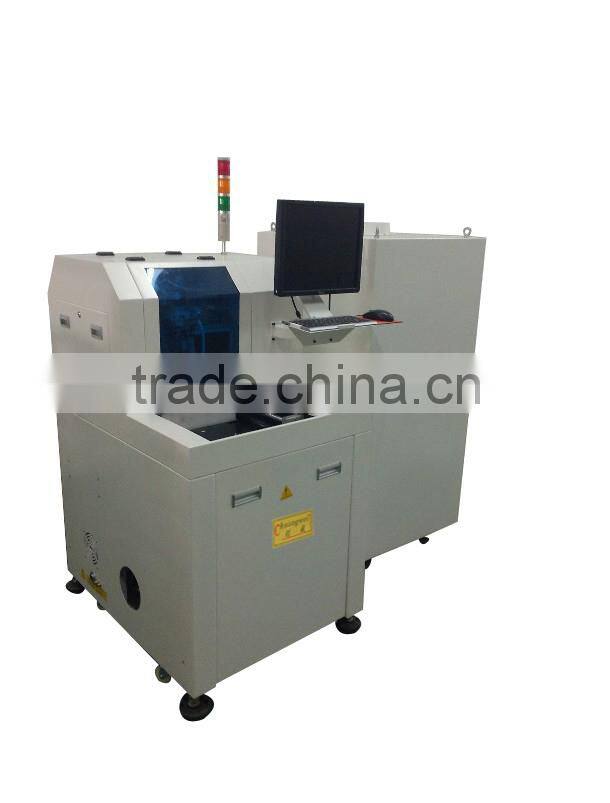

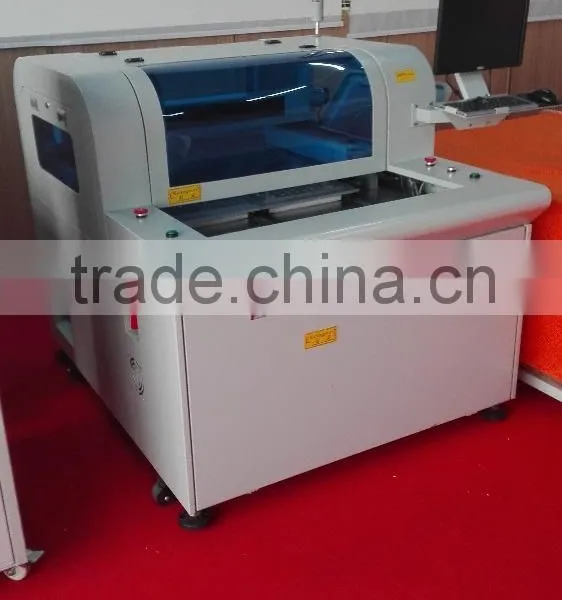

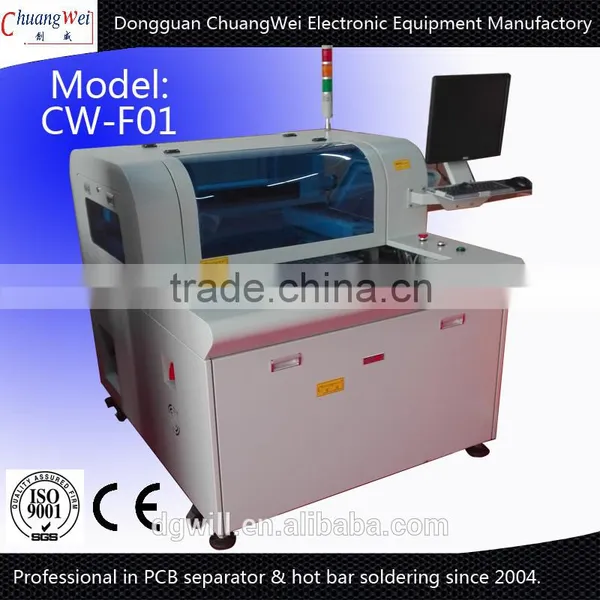

cnc router pcb CW-F01

cnc router pcb Technical specification:

pcb Mini table cnc router ce Hardware
System models / types	Windows XP Professional
cnc router pcb Overall
FootPrint (LxWxH)	800mm850mm1700mm
Weight (Approximate)	150KG
Adjustable machine footings (for height)	60~110mm
cnc router pcb Manipulator
Manipulator Motor	Panasonic MINAS A5 series
Manipulator Repeatability	0.001mm
Axis configuration
Maximum Axis Travel (X,Y,Z)	400mm650mm50mm
Work station
Board Positioning	Fixture positioning, thimble universal positioning, vision correction
Loading/Unloading	manual
Routing Range	320mm*320mm
Panel Thickness	3mm
Fixturing
Rigid Fixturing	Universal thimble & anti-static fixture
Top Clamp	Using hole positioning
Spindle Motor
Power	100W
Max. speed	60000rpm/min
Cooling	Natural cooling and air-cooled
Router bit size	3mm*3mm
Tool change	Use Special wrench
cnc router pcb Routing capability

Max routing speed	100mm/s
Repeatability	0.02mm
Vacuum System
Power	0.75KW220V Single-phase motor
Filtration	Vertical and horizontal
Utilities
Power	1.5KW AC220V
Air supply	4~5KG/cm2

cnc router pcb functions

1. Smooth cutting finish only by router cutting .

2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .

3. One-touch program changeover .

4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .

5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .

6 , Powerful Dust Collection minimized dust adhesion on PCB .
7 , Developed high performance router bit that expanded bit life and relief littering .

8 , Cut down PCB cost because need not making V-groove on PCB

9 , Cut down running cost because without mold

pcb Mini table cnc router ce CW-F01 is a machine cutting multi-panel PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT or Push cut, it improves product quality and reduces scrap rates.

The machine adopts human-machine interface vie Windows XP, which is simple and convenient, able to achieve automatic cutting path correction, edit and modification of high-pixel CCD program, block program and single-step program.

pcb Mini table cnc router ce The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.

pcb Mini table cnc router ce Due to the automatic position correction function, PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically, therefore lowers the standard for operators to place the plate, in this way to improve work efficiency immensely.

The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.
