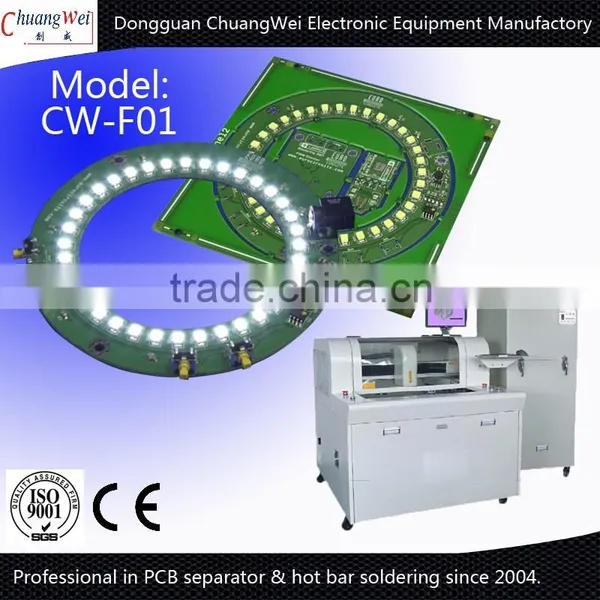

eddy current separator CW-F01
eddy current separator specification:
|
eddy current separator Hardware |
|
System models / types |
Windows XP Professional |
|
eddy current separator Overall |
|
FootPrint (LxWxH) |
800mm*850mm*1700mm |
Weight (Approximate) |
150KG |
Adjustable machine footings (for height) |
60~110mm |
|
eddy current separator Manipulator |
|
Manipulator Motor |
Panasonic MINAS A5 series |
Manipulator Repeatability |
0.001mm |
Axis configuration |
|
|
eddy current separator Maximum Axis Travel (X,Y,Z) |
400mm*650mm*50mm |
Work station |
|
Board Positioning |
Fixture positioning, thimble universal positioning, vision correction |
Loading/Unloading |
manual |
Routing Range |
320mm*320mm |
Panel Thickness |
3mm |
|
eddy current separator Fixturing |
|
Rigid Fixturing |
Universal thimble & anti-static fixture |
Top Clamp |
Using hole positioning |
|
eddy current separator Spindle Motor |
|
Power |
100W |
Max. speed |
60000rpm/min |
Cooling |
Natural cooling and air-cooled |
Router bit size |
3mm*3mm |
Tool change |
Use Special wrench |
|
eddy current separator Routing capability |
|
|
|
Max routing speed |
100mm/s |
Repeatability |
0.02mm |
|

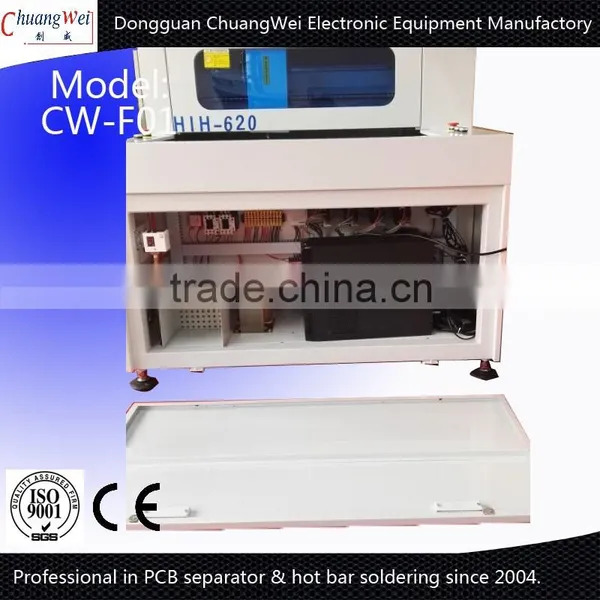

eddy current separator Vacuum System |
|
Power |
0.75KW220V Single-phase motor |
Filtration |
Vertical and horizontal |
|
eddy current separator Utilities |
|
Power |
1.5KW AC220V |
Air supply |
4~5KG/cm2 |
eddy current separator Features and functions
1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6 , Powerful Dust Collection minimized dust adhesion on PCB .
7 , Developed high performance router bit that expanded bit life and relief littering .
8 , Cut down PCB cost because need not making V-groove on PCB
9 , Cut down running cost because without mold

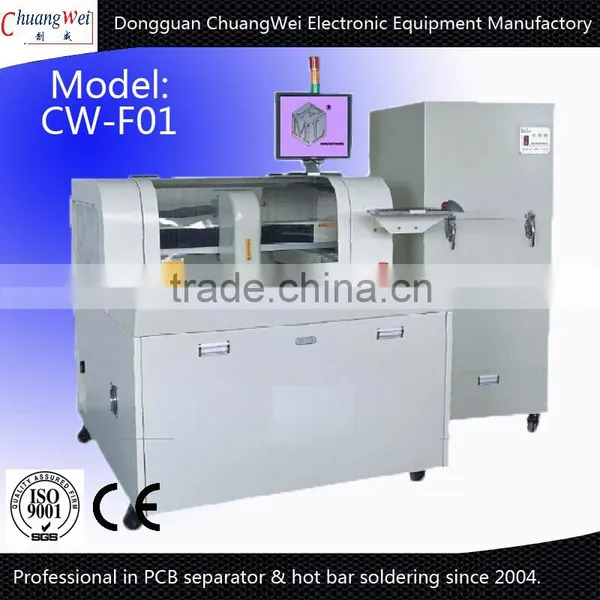

pcb cutting depaneling separating with ce CW-F01 is a machine cutting multi-panel PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT or Push cut, it improves product quality and reduces scrap rates.
The machine pcb cutting depaneling separating with ce adopts human-machine interface vie Windows XP, which is simple and convenient, able to achieve automatic cutting path correction, edit and modification of high-pixel CCD program, block program and single-step program.
The PCB pcb cutting depaneling separating with ce with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.
Due to the automatic position correction function, pcb cutting depaneling separating with ce PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically, therefore lowers the standard for operators to place the plate, in this way to improve work efficiency immensely.
The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.
Vacuum cleaner made of imported high-power fan and the 10V high voltage static eliminator makes less noise and can vacuum better. The monitor for tooling will extend the life span of the milling cutter, as the blade will rise and fall to the uncut position upon finished the previous cut and the risingand falling distance and times can be set based on the length of the blade.
