Specifications
Belt conveyor, belt conveyor system, conveyor belt:1,angle iron/U-bar structure
2,ISO 9001:2008
3,quarry/mine belt conveyor

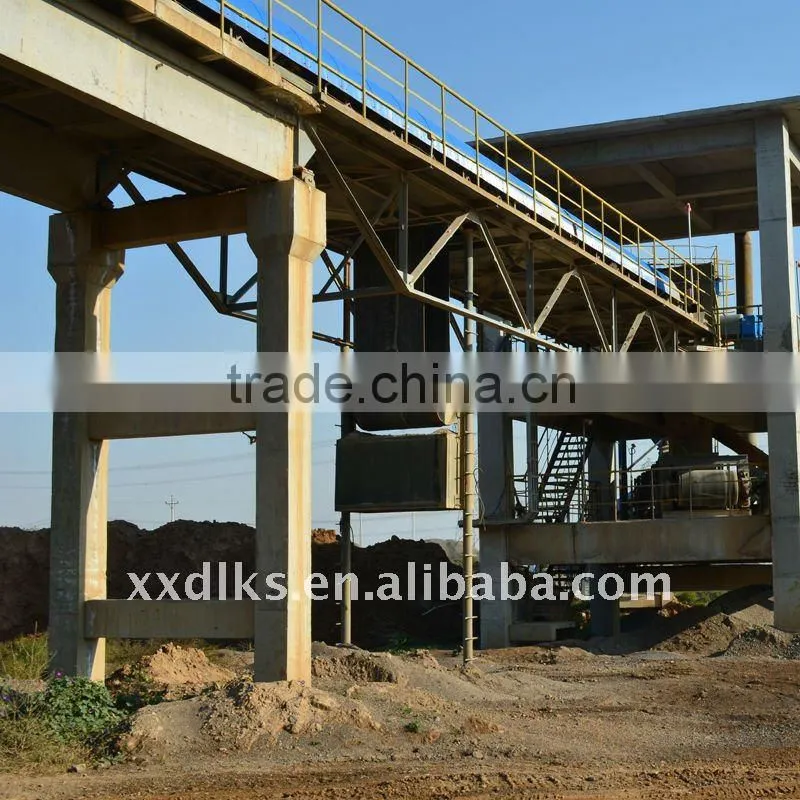

Dingli mining and quarry professional Belt conveyor
Width B(mm) |
500 |
650 |
800 |
1000 |
1200 |
1400(1600) |
||||||||||||||
Edge height H(mm) |
80 |
120 |
160 |
80 |
120 |
160 |
120 |
160 |
200 |
160 |
200 |
240 |
200 |
240 |
300 |
200 |
240 |
300 |
400 |
|
Diaphragm plate height (mm) |
75 |
110 |
150 |
75 |
110 |
150 |
110 |
150 |
180 |
150 |
180 |
220 |
180 |
220 |
280 |
180 |
220 |
280 |
360 |
|
Speed V(m/s) |
0.8 1.0 1.25 1.6 2.0 2.5 3.15 4.0 |
|||||||||||||||||||
Drum diameter (mm) |
400,500 |
400,500,630 |
500,630,800 |
630,800,1000 |
630,800,1000,1250 |
800,1000,1250,1400 |
||||||||||||||
Veer Drum diameter (mm) |
400 |
400,500 |
400,500,630 |
500,630,800 |
500,630,800,1000 |
630,800,1000,1250 |
||||||||||||||
Roller (mm) |
Φ89 |
Φ108 |
||||||||||||||||||
Normal angle |
0-30° 30° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° |
|||||||||||||||||||
Angle range |
0-90° |
|||||||||||||||||||
Transmission |
Type I |
Motorized pulley(with brake) |
||||||||||||||||||
Efficacy KW |
1.5-7.5 |
1.5-11 |
1.5-37 |
1.5-90 |
1.5-110 |
|||||||||||||||
Type II |
Y motor +V belt + axis redactor(with brake)+driving drum |
|||||||||||||||||||
Efficacy KW |
3-11 |
3-15 |
3-22 |
|||||||||||||||||
Type III |
Motor +coupling + redactor + driving drum(with brake)(By a single motor drive) |
|||||||||||||||||||
Efficacy KW |
1.5-30 |
1.5-55 |
2.2-90 |
4-110 |
5.5-185 |
|||||||||||||||
Belt conveyor Application:

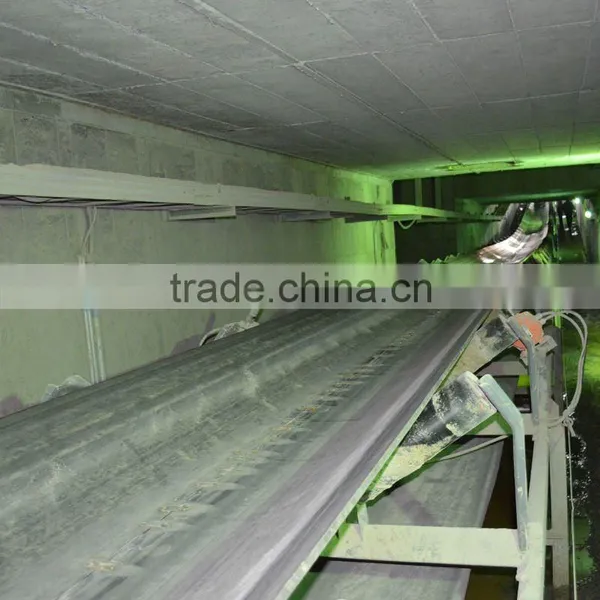

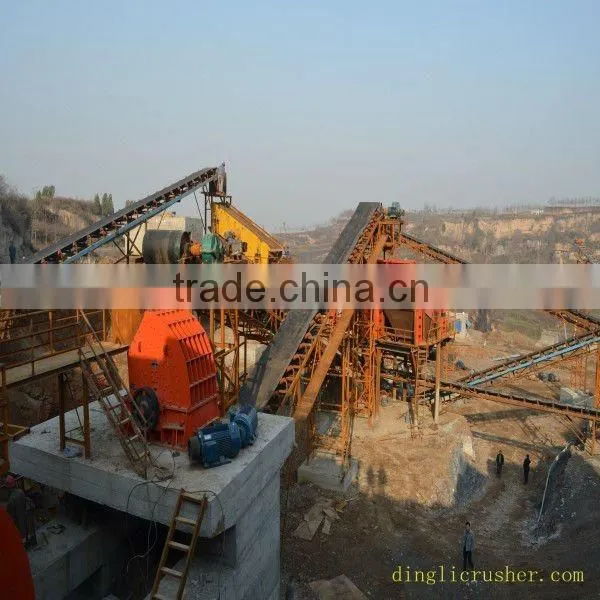

Belt conveyor extensively used in modern industry such as mine tunnel, mine open-air conveying system, open-air quarry and beneficiation. It is very convenient for horizontal, inclined conveying.
Our belt conveyor Character:
The main character of Belt conveyor is convenient to stretch for the belt-save space. The end can be stretched according to the working spot. Its structure is very compact, light frame, convenient to install and dismantle.
When load more materials or long term conveying, it can set a motor in the middle. As your requirement, you can convey with one conveyor or use multi-conveyor for a system to convey the materials.
2. the density of materials can be delivered in the 2.5t / m ^ 3 below.
3. conveyor belt conveyor length is not limited to the value listed in the table, based on the user's need for manufacturing.
