On Line Length Measurement Hot Metal Detector
1. Characteristic
• Fully digital “All-in-One” Design
• LED Bar Display of % IR input signal
• Operates from 80-240VAC or 24VDC Supply
• Programmable response times from 1ms to 250ms
• Control Relay and Fast Reed Relay Outputs
• NPN and PNP Transistor Outputs
• Remote Self-Check Facility
• Unique combined air purge and coolant facility
• Optional Water Coolant Radiator & Separate Air Purge
2.General Description
The MSE-HMD85 Hot Metal Detector is a fully digital “All-in–One” Hot Metal Detector uniquely incorporating a bar display showing the % IR input signal relative to the pre-set threshold as well as programmable thresholds and response times via simple programming switch action. This and the universal connection format means it provides the user with one universal Detector that can be used throughout the mill. The MSE-HMD85 is the economical choice. Now there is no need to stock various Detectors for each location. Costly multiple inventory can be replaced by one Detector.

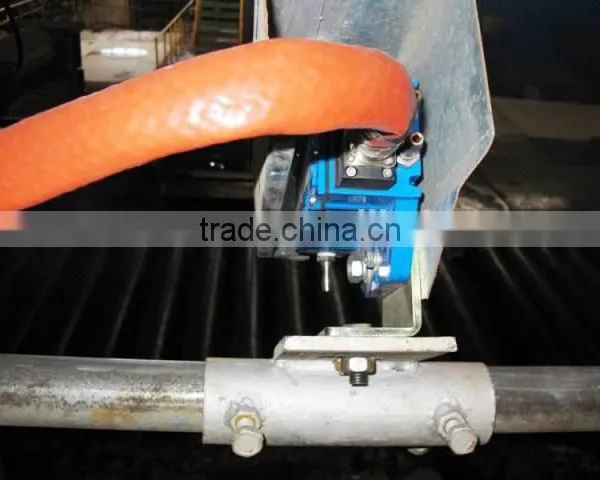

This MSE-HMD85 Hot Metal Detector is especially suitable where ambient temperatures are subject to large changes. In standard format, a large air cooled chamber vents via deflector in front of the lens to allow the use of non-instrument air and provides air purging. Alternatively, an optional sealed loop water coolant radiator accommodates tap pressure and a separate air purge inlet may be provided.
3. Housing Specifications
Housing: Aluminum AL6, Oven baked blue paint
Housing Rating: IEC IP66, DIN, 89011
Weight w/o Cable: 1.9 Kg (4.2lb)
Connector: IP66 with connected Plug/Socket
Cable Length: 1.5 M Standard upto 15 M available
Cooling: Air Cooled & Air Purged or Water Cooled & Air Purged
4. Additional Information
To accommodate variation in bar temperature and background IR, various precise threshold are programmable via covered switches from 250°C to ensure reliable switching with reference to both the displayed background and product IR signal. Furthermore, response time is programmable from 1 ms to 250ms to accommodate black spots on the hot material.
The MSE-HMD85 incorporates a remote self-check facility remotely energized by closed contacts that lights up an internal IR LED to switch the Detector and verify its’ outputs operate correctly.
The MSE-HMD85 will operate with 80-240 VAC/50-60Hz or 24 VDC power input. Standard outputs include a cradle relay, a fast reed relay and both NPN/PNP transistor outputs.
5. General Specification
|
Lens F.O.V. (Filed of View) |
0.5° x 25° Rectangular Slit |
|
Min/Max I.R. Threshold Settings |
Adjustable from 270°C via Programming Switch |
Response Time |
1 ms to 250 ms, via Programming Switch |
Supply Voltage |
Standard: 80 - 240 VAC, 50/60 or 24 VDC ± 10% |
Power Consumption |
5 W |
Operating Temperature |
1. -20°C to +50°C without Air Cooling 4. up to 80°C with Heat Shield |
Output (#1) |
Cradle Relay Output, SPNO, 240 VAC, 7A with 20 ms Response Time. |
Output (#2) |
Reed Relay Output, (OPTION) SPNO, 240 VAC, 0.5A with 2 ms Response Time. |
Output (#3 & #4) |
NPN and PNP Outputs, N.O., 500 mA, 45 VDC, 2A Peak. |
