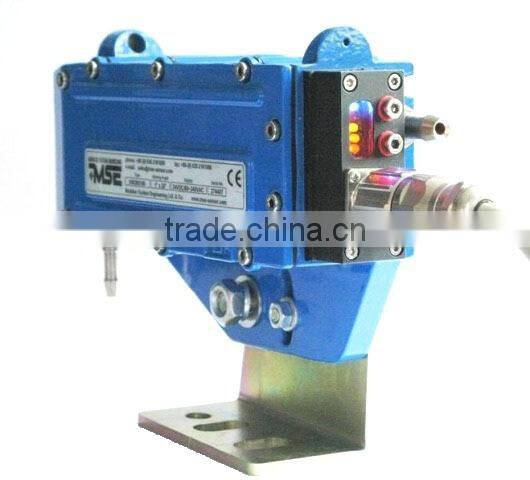

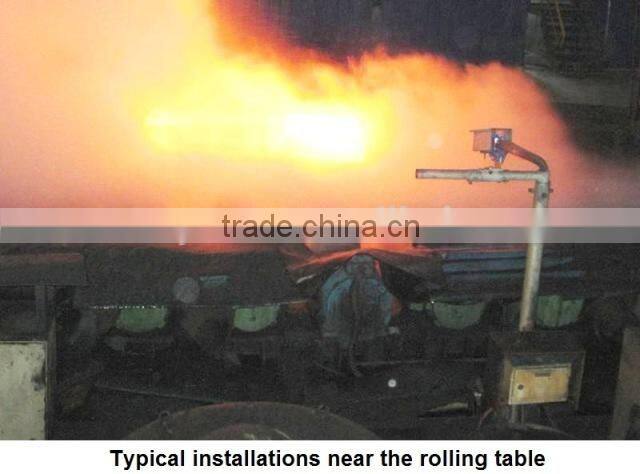

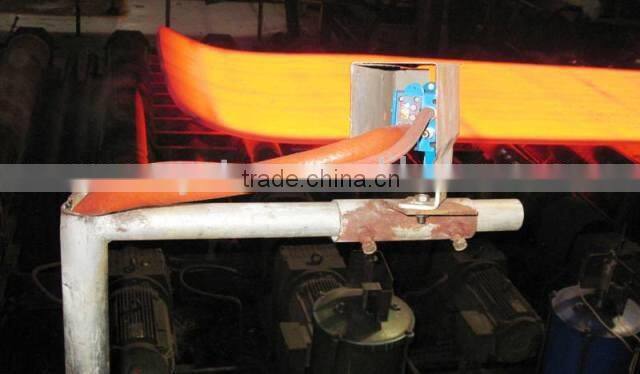

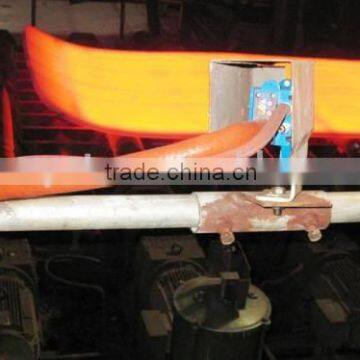

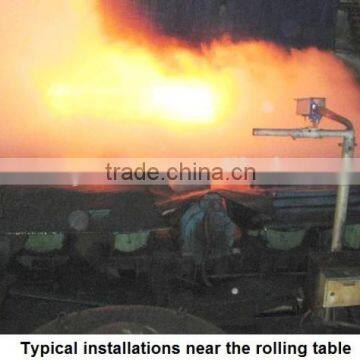

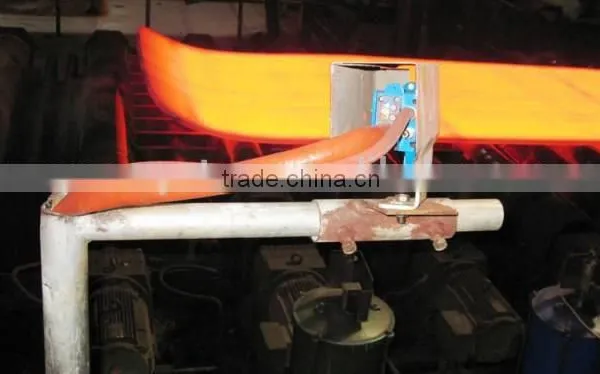

1. General Description

The MSE-HMD85 Hot Metal Detector is a robust sensor activated by the infra-red radiating from the hot product. Impervious to water or steam it is built to withstand the harshest of environments. The product is detected via a highly stable InGaAs Photodiode to ensure detection regardless of heavy water and steam and incorporates filtering that removes the visible spectrum to minimize sensitivity to extraneous light. The precise 0.5° x 25° lens ensures accurate detection of strip and accommodates bar bounce.

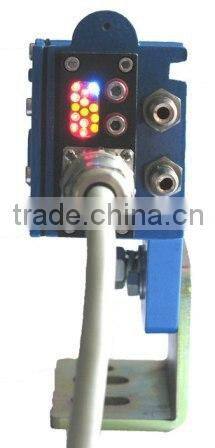

2. Rear Bar Display

The rear bar display allows the user to clearly establish the amount of received IR both from the background metalwork and the bar being detected and thereby establishing the correct trip level required. This display also allows the user to align the Detector from a low energy source such as a flashlight, which normally would be insufficient to switch the Detector. Adjustment of both the threshold and the response time is also clearly defined by this bar.

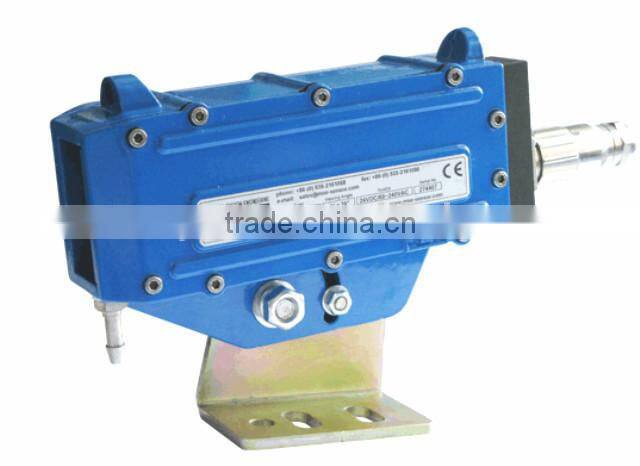

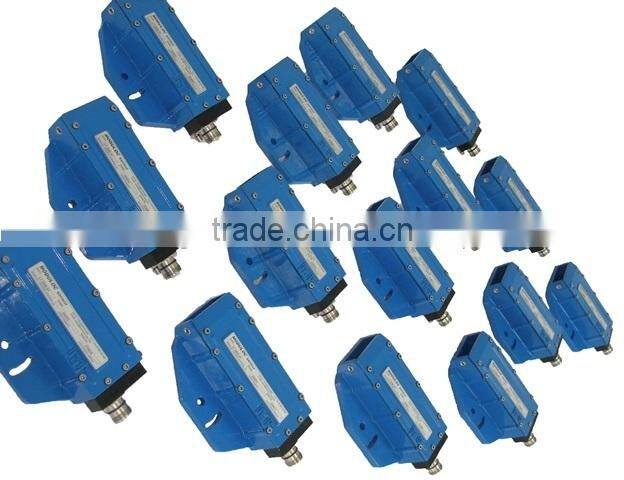

3. Housing Specifications

Housing: Aluminum AL6, Oven baked blue paint

Housing Rating: IEC IP66, DIN, 89011

Weight w/o Cable: 1.9 Kg (4.2lb)

Connector: IP66 with connected Plug/Socket

Cable Length: 1.5 M Standard up to 15 M available

Cooling: Air Cooled & Air Purged or Water Cooled & Air Purged
