Specifications

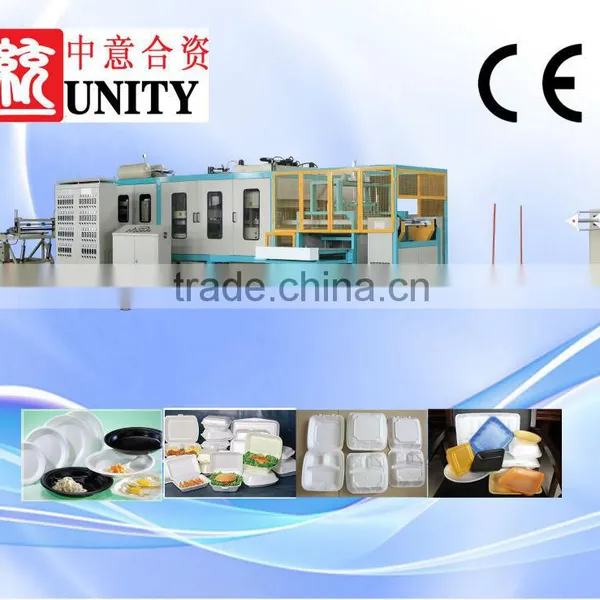

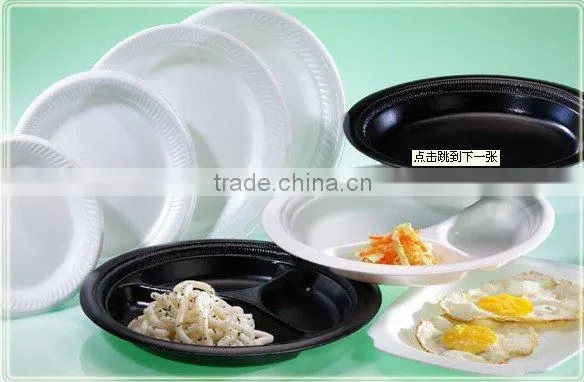

Eps White Styrofoam Food Containers production line1.Top quality production line
2.exported to many countries
3.CE
Eps White Styrofoam Food Containers production line We specialize in making plastic machines for 30 years with advanced technology and have accumulated vast experience.
Our machines are sold well in many countries such as England, Brazil, Portugal, India, Russia, Uzbekistan, Iran, Indonesia, Cambodia and so on.
It includs 3 parts:
1. PS Foam Sheet Extruder 2. Vacuum Forming Machine 3. Recycling Machine
CE certificate
PS Foam Sheet Extruder
PS Foam Sheet Extruder uses a tandem screw technology to produce fine-blocked cell-structured extruded
Model | Unit | PSP70/90 | PSP90/120 | PSP100/130 | PSP120/150 |
Extruder |
| 70/90 | 90/120 | 100/130 | 120/150 |
Foam rate |
| 10-20 | 10-20 | 10-20 | 10-20 |
Width of product | mm | 640-1040 | 640-1040 | 640-1040 | 640-1200 |
Cutting method |
| Single cutter | Double cutter | ||
Thickness of product | mm | 1.0-3.0 | 1.0-3.5 | 1.0-3.5 | 2.0-5.0 |
Cooling method |
| Cooled by wind and water | |||
Output | kg/h | 50-90 | 100-180 | 180-230 | 230-320 |
Installed power | kw | 120 | 150 | 180 | 260 |
Dimensions(L×W×H) | m | 26×4.0×2.8 | 30×4.1×2.8 | 36×4.2×3 | 38×4.2×3.2 |
Total weight | T | 10 | 12 | 15 | 18 |
Vacuum Forming Machine
It is an all-powerful thermal forming machine with integration of vacuum forming
,press forming and synthetical forming .
Model | Unit | TY-1040 |
Max. forming area | mm2 | 1000×1100 |
Max. forming depth | mm | 80 |
Production efficiency | s/die | 3 - 8 |
Forming pressure | T | 15 |
Mounted power | kw | 168 |
Total weight | T | 16 |
Installation size | m | 13×2×3.2 |
Recycling Machine
This machine is special for polystyrene. It adopts single screw, double stage
lasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator.
Model | Unit | TY-180+120/100 |
Screw diameter | mm | 180+120/100 |
Motor | kw | 30 |
Heater | kw | 25 |
Extruder capacity | kg/h | 80-130 |
Cooling water tank | mm | 1810×410×225 |
Sincerely hope to have chance to cooperate with you in near future !
