Super Ps Food Packaging Box Machine

export standard package

Specifications

Ps Food Packaging Box Machine
1 max forming area 100x1100mm
2 max forming depth 80mm
3.forming pressure 15T

Ps Food Packaging Box Machine

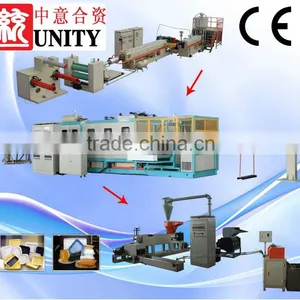

 Include 3 sets of machine

1. PS Foam Sheet Extruder

2. Fully Auto Forming and Cutting Machine

3. Recycling Machine



This line can make PS foam tray, absorbent foam tray for meat, foam burger box, foam fast food box, foam egg tray, foam bowls and so on.



A. The raw material is General purpose polystyrene (GPPS) .



B.The general  process flow of the ps foam food container machine as below:



    aa. The ps foam sheet is made by the ps foam sheet extruder



    bb. The foam sheet shaped by the vacuum forming unit, cut the shaped sheet into finish products and stack.



    cc. The sheet scrap will be recycled by the recycling machine .



C. Brief discription of PS foam food box production line.

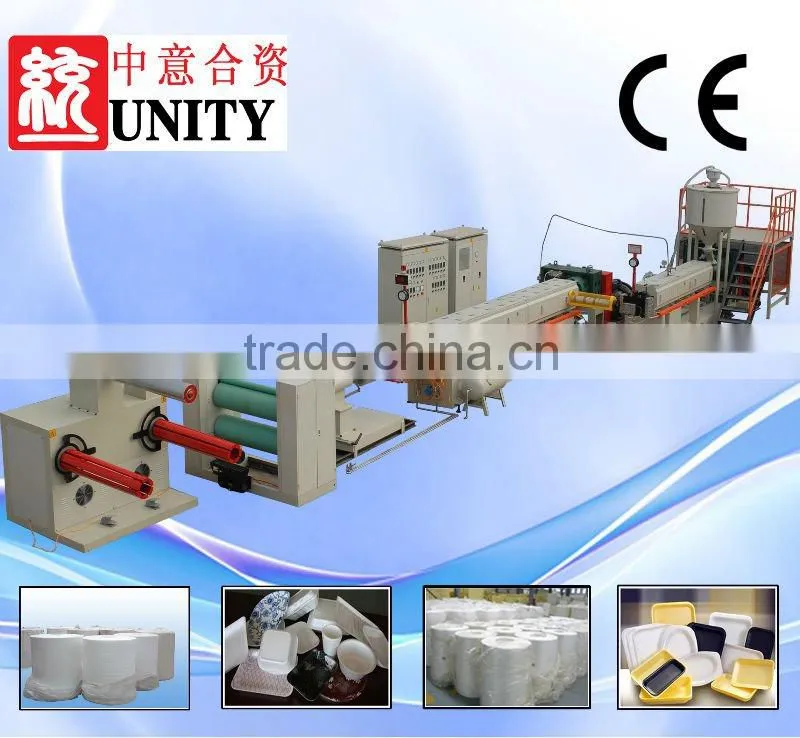

1. PS Foam Sheet Extruder (TYPSP-90/120):









Main Technical parameters

Model	Unit	TY-PSP70/90	TY-PSP90/120	TY-PSP100/130	TY-PSP120/150
Extruder		70/90	90/120	100/130	120/150
Foam rate		10-20	10-20	10-20	10-20
Width of product	mm	640	640-1040	640-1040	640-1200
Cutting method		Single cutter		Double cutter
Thickness of product	mm	1.0-3.0	1.0-3.5	1.0-3.5	2.0-5.0
Cooling method		Cooled by wind and water
Output	kg/h	50-80	100-170	150-230	230-320
Installed power	KW	120	150	180	260
Dimensions(L×W×H)	m	26×4.0×2.8	30×4.1×2.8	36×4.2×3	38×4.2×3.2
Total weight	T	10	12	15	18

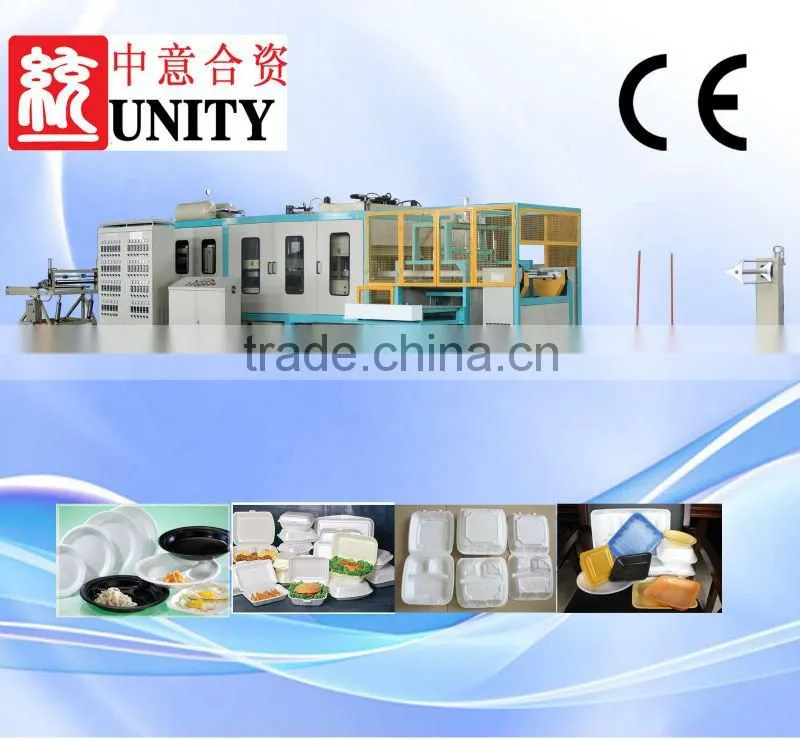

2. Fully Auto Forming and Cutting Machine (TY-1040):









Forming and cutting procedure is done in the same machine, labor saving, high efficient, low labor intensity and production cost. Production process is to put foam sheet into forming machine, end product and wastage will come out from the rear part, two workers is enough for whole production line operation. It can be used to produce PSP/EPE /HIPS/PVC/PET material. Product can be used in the food, medical, electric parts, tourism, toys, etc.

Main technical parameters

Model	Unit	TY-1040
Max. forming area	mm2	1000×1100
Max. forming depth	mm	80
Production efficiency	s/die	3 - 8
Forming pressure	T	15
Mounted power	kw	168
Total weight	T	16
Installation size	m	13×2×3.2

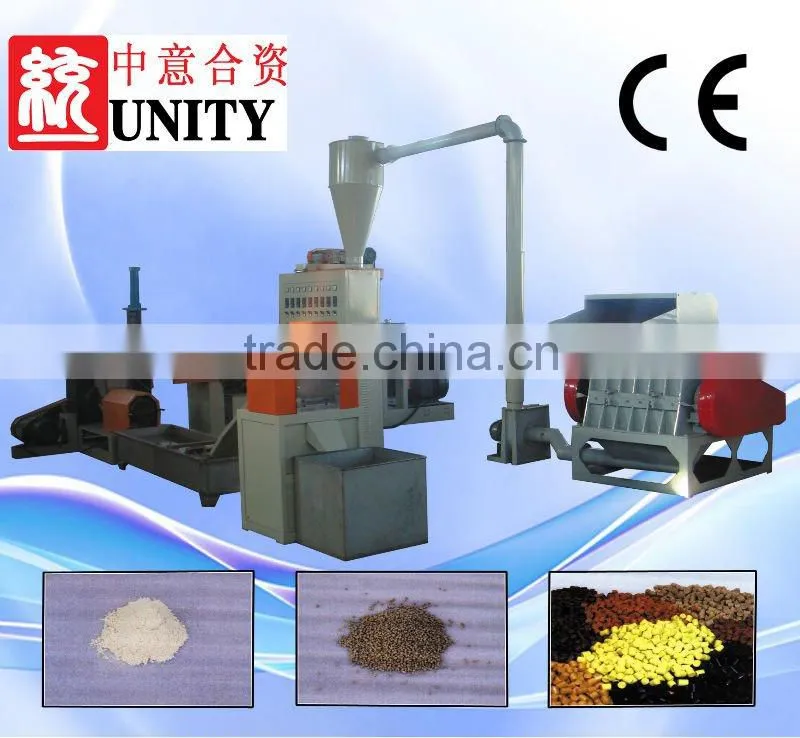

3.Plastic recycle machine





Plastic recycle and pelletizing machine is designed to reclaim the foamed polystyrene materials almost identically to new ones with its own superior filtering performance



Main technical parameters

Model	Unit	TY-180+120/100
Screw diameter	mm	180+120/100
Motor	kw	30
Heater	kw	25
Extruder capacity	kg/h	80-130
Cooling water tank	mm	1810×410×225
Granule cutting motor	kw	2.2
