Specifications
HAIG brand crawler bulldozer1.Operating wieght: 16500kg
2.C6121 CAT licence engine, 165HP
3.CAT technology
4.ROPS/FOPS

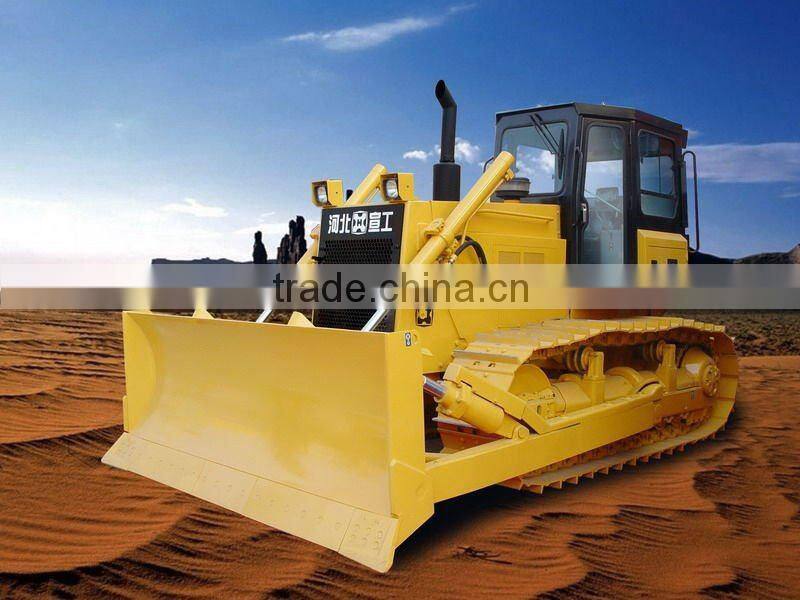

SD6G small Bulldozer for sale
Specification:
| SPECIFICATIONS SD6G BULLDOZER | ||||
Type of blade |
Tilting straight blade |
|
||
Operating weight |
16100 (kg) |
|||
Max. drawbar pull |
145(kN) |
|||
Ground pressure |
55 kpa) |
|||
Width of standard shoe |
1880(mm) |
|||
Ground clearance |
445 (mm) |
|||
Grade ability |
Straight 30° Side 25o |
|||
Capacity of blade |
4.5 m3 |
|||
Dimension of blade |
3297×1170 (mm) |
|||
Digging depth |
592(mm) |
|||
Overall dimension |
5037×3270×3077 mm |
UNDERCARRIAGE SYSTEM | ||
ENGINE |
C6121ZG05 CAT licence |
TYPE: Swing type of sprayed beam. suspended |
||
Type: Water-cooled, single-row, vertical,4-stroke-cycle, turbocharged. |
Structure of equalizer bar |
|||
manufacture |
Shang hai diesel engine company |
Number of track rollers(each side) 7 |
||
Rated RPM |
1900r/min |
Number of carrier rollers(each side) 2 |
||
Rated power |
131kW |
Pitch 203 mm |
||
Num. of cylinder-bore×stroke |
6-121mm×152mm |
Width of shoe 560 mm |
||
Fuel consumption |
215g/kw.h |
Gear Forward Reverse |
||
Max. torque |
770N.m/1400rpm |
1 st 4 km/h 4.8 km/h |
||
| IMPLEMENT HYDRAULIC SYSTEM | 2 st 6.9km/h 8.4 km/h |
|||
Max. system pressure 15.5MPa |
3 st 10.9km/h 12.9 km/h |
|||
Pump type Gear pump |
System output 178L/min |
|||
POWER TRAIN | ||||
Torque converter |
Single-stage with output torque divider combined smoothness with economy |
|||
Transmission |
Planetary, power shift transmission with three forward and three reverse |
|||
Steering clutch |
Multiple-disc oil power metallurgy disc compressed by spring hydraulic separate. |
|||
Steering brake |
Hand levers combine steering clutch disengagement and braking in one control |
|||
Final drive |
The final drive are double reduction with spur gear and segment sprocket |
|||
| BRIEF INTRODUCTIN | ||||
SD6G bulldozer is designed on the basis of CATs D6G, and the main component of undercarriage is interchangeable with D6Gs, | ||||
which is similar with D6D.We have accumulated twenty years experiences for manufacturing D6D, so the SD6Gs undercarriage | ||||
is reliable. The control valve for implement system is imported from PIRKER, a American company , which manufacture valve | ||||
for CAT, so the implement hydraulic also enjoys a high quality. | ||||
