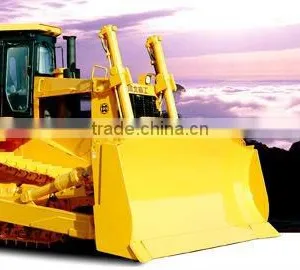

SD9 crawler Bulldozer for sale(335hp)

Specifications

HAIG brand crawler bulldozer
1.short delivery time
2.Cummins engine
3.CAT technology
4.rich after-sale service

SD8 mini crawler Bulldozer for sale(335hp)

Specification:





SD9 dozer is elevated sprocket track type bulldozer with power shift and hydraulic controlled. It boasts efficient torque divider, single lever operated planetary gear transmission and pilot boosted implement control system. The elevated sprocket and modular design promote the power system life and convenience and accurately. The electric monitored advanced ROPS is up to the international manufactured standard.
It can be equipped with Cummines electrical monitored engine from USA. Integrated the electrical controlled fuel injection system and the are-air media cooling element, which ensures the exhaustion up to the Tier3 standard, and makes the fuel consumption more lower and power out put more stronger.

Main specifitions
Operating weight(not including ripper) ------------------------------------------------------------------------------  44588Kg
Ripper weight---------------------------------------------------------------------------------------------------------------.4300Kg
Ground pressure(without ripper) -----------------------------------------------------------------------------------------102 kPa
Track contact length------------------------------------------------------------------------------------------------------2250 mm
Gradeability-------------------------------------------------------------------------------------latitude30  °    transverse 25 °
Ground clearance-----------------------------------------------------------------------------------------------------------517mm

Overall dimensions(L × W × H) ----------------------------------------------8478×4314×3970(with single shank ripper)
Diesel engine specifications
Model ---------------------------------------------------------------------------------------------------------------- KTA19-C525
speed----------------------------------------------------------------------------------------------------------------------1800r/min
Flywheel power --------------------------------------------------------------------------------------------------316kw(410HP)
Torque storage coefficient----------------------------------------------------------------------------------------------------18%

Model ---------------------------------------------------------------------------------------------------------------- QSX15
speed----------------------------------------------------------------------------------------------------------------------1800r/min
Flywheel power --------------------------------------------------------------------------------------------------316kw(410HP)
Torque storage coefficient----------------------------------------------------------------------------------------------------18%

Theory travel speed  (km/h)
1st gear forward 0-3.9              1st gear backward 0-4.8
2nd gear forward 0-6.7             2nd gear backward 0-8.5
3rd gear forward 0-12.2            3rd gear backward 15.1
Torque converter
Power separating, hydraulic-mechanic drive type.
Transmission assembly
Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering and braking clutch
The steering clutch is hydraulic pressed, usually separated clutch. The braking clutch is pressed by spring, separated by hydraulic, constant meshed type.
Final drive
Final drive is two-stage planetary reduction gear mechanism., splash lubrication.
Undercarriage system
SD8 dozer utilizes elastic-mounted undercarriage. The track is triangle shape. The sprocket is elevated. Number of track rollers each side is 8. pitch 240mm, width shoe is 610mm.
Implement hydraulic system
Rated operation system pressure 18.3MPa
Pump type double vane pump
System output 300L/min
