Tower Crane:1.With certification
2.Self-erecting and wall attached tower crane
3.Have more than 10 years experience

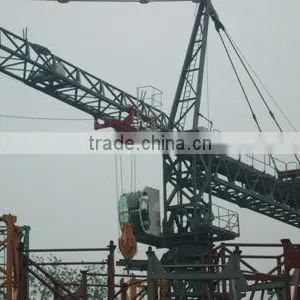

New Design Tower Crane
Q560 tower cranes Introduction :
Long boom,larger coverage,section of the standard section is large,steel is good,crane is stable during it working, little swing.

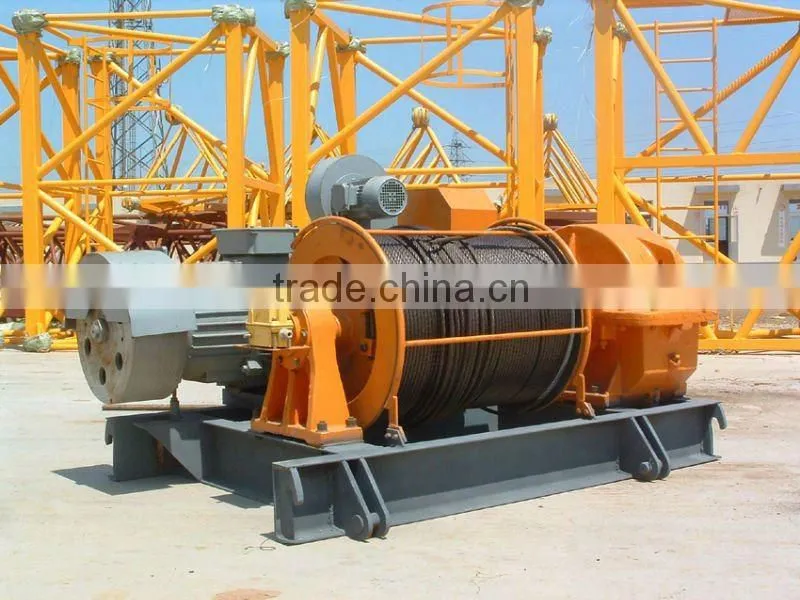

Electric system adopts domestic quality products or imported components, stable and reliable performance. The hoisting mechanism governor is performance,lifting and decline have no impact,steady.
Slip ring winding two-speed motor and eddy current brake
Model of main material of the standard section is large
Slewing mechanism use motor winding,steady work,in place quickly ,conveniently and efficient.
Q560 Tower crane Technical Sheet
ITEM |
UNIT |
Q560 |
Q570 |
|
Rated lifting moment |
KN.m |
800 |
800 |
|
Working range |
m |
3-55 |
3-56 |
|
Load |
Tip load |
t |
1.3 |
1.5 |
Max load |
6/8 |
6/8 |
||
Lifting height |
Free standing |
m |
40 |
40 |
Adhesion type |
150 |
150 |
||
|
Hoist mechanism
|
Double falls speed |
m/min |
80/40/8.5 |
80/40/8.5 |
Fourfold falls speed |
40/20/4.25 |
40/20/4.25 |
||
Motor |
/ |
/ |
/ |
|
Slewing Mechanism |
speed |
r/min |
0.62 |
0.62 |
Motor |
/ |
/ |
/ |
|
|
Trolley Mechanism |
speed |
m/min |
21/42 |
21/42 |
Motor |
/ |
/ |
/ |
|
Jacking speed |
m/min |
0.4 |
0.4 |
|

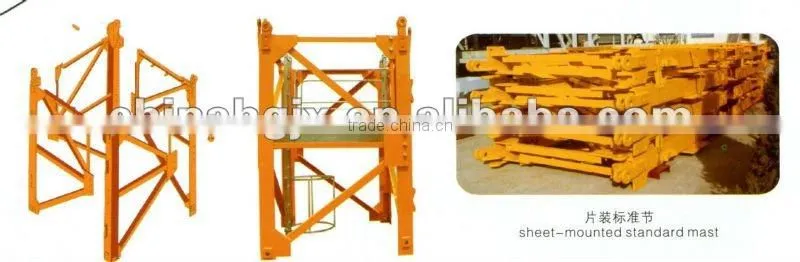

Mast section size(mm) |
1833*1833*2500 |
|||
Mast section material (Q235B) |
∠125*12 angle steel buckles party |
|||
To provide you detailed quotation, we need to confirm the following details.
1.The height of the tower crane you needed.
2.The tip load and max loading you needed.
3.The span of the tower crane
4.The voltage frequency in your country
Detailed information will be sent to you the moment we get your confirmation
