Truck-mounted Concrete pump HB37 ,1.Volvo chassis
2.imported hydraulic elements
3.EUIII engine
4.3 axles
The features of diesel engine truck mounted line concrete pump
Hydraulic System
1. The pumping loop and the reversing loop work separately and the reversing system is supplied with hydraulic oil by constant pressure pump, thus making the system simpler, and more reliable with lower oil temperature for convenient inspection and maintenance.
2.The system possesses safety relief device and over-pressure automatic shut-off device, which gives the main oil pum multi-protection.
3.The pump group and valve group equipped are world famous brand, Germany Rexroth. They are more powerful, better configured and more reliable with stepless control of concrete delivery.
4.The hydraulic rubber hose is manufactured by Italian Manuli Rubber Industries S.P.A..
5.The adoption of the imported rectangle seal with steel pad ensures the hydraulic system work without leakage.
6.The original Italian Galtech brand of manual reversing integrated relief valve is adopted for the mixing system which has simplified the system and greatly improved the reliability.
Electric Control System
1.The most electric components of enclosed electric control box, including the air switch and the AC contactor, are famous brands of Japanese Mitsubishi, French Schineider and Japanese Panasonic.
The touch screen of international manufacurers can accurately and conveniently set pumping speed and working or idling speed of the engine. The display can show the pumping capacity, speed, rotating speed and the operating state as well as fault information.
2.The double controller auto-pumping technology(self-owned patent No.:200620052392.7) achieves auto-pumping even when the proximity switch fails.
3.The non-contact control technology ensure longer service life and higher reliability than the relay control mode.
4.The PLC control is of German Siemens or Japanese Mitsubishi brand. The PLC control can conduct precise monitoring over the whole machine. To effectively avoid accidents caused by misoperation, multi automatic protection modes related to temperature, pressure, rotation speed are set in the control programmer so as to prevent misoperation.
5.By adopting American Haydon brand of linear stepping motors automatic throttle controller, the control precision, reliability and service life are much more higher than other control mode. Thus, it not only realize energy-saving, but also thoroughly eliminate harsh conditions when the motor works with idle load at high speed for a long time.
Power System
1.Diesel engines are mainly from world famous brand Swedish Volvo. It possesses blowing cooling to greatly reduce the temperature of the hydraulic system.

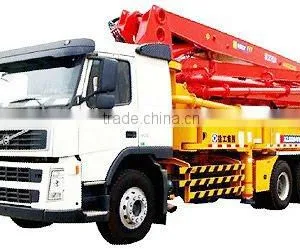

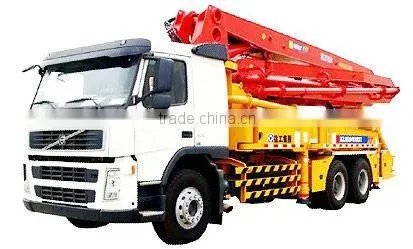

Truck-mounted Concrete pump HB37
main parameters
Travel Operation | |||||
Category |
Items |
Unit |
Parameters |
||
Chassis |
Model |
FM400 64R B |
|||
Make |
VOLVO |
||||
Max.speed |
km/h |
90.8 |
|||
Max.gradeability |
34.7% |
||||
Min.turning diameter |
m |
18.788 |
|||
Brake distance |
m |
≤7 |
|||
Axle base |
mm |
4900+1370 |
|||
Wheelbase (front/rear) |
mm |
2019/1834 |
|||
Approach/departure angle |
° |
18/10 |
|||
Min.ground clearance |
mm |
270 |
|||
Tire |
12.00R20 |
||||
Engine |
Model |
D13 |
|||
Output power |
kw/(r/min) |
294/1400-1800 |
|||
Max.torque |
N.m/(r/min) |
2000/1050-1400 |
|||
Displacement |
L |
12.8 |
|||
Emission standard |
China Ⅲ GBⅢ |
||||
Others |
Dimension (L×W×H) |
mm |
11990×2500×3900 |
||
Overall weight |
kg |
28400 |
|||
Fuel tank volume |
L |
410 |
|||
Fuel consumption (100km) |
L/100km |
40 |
|||
Working Condition | |||||
Pumping system |
Theoretical capacity(High/low pressure) |
m3/h |
90/138 |
||
Pumping pressure(High/low pressure) |
Mpa |
13/8.7 |
|||
Theoretical frequency(High/low pressure) |
Times/min |
18/27 |
|||
Max.aggregate diameter |
mm |
40 |
|||
Loading height |
mm |
1450 |
|||
Slump |
mm |
12-23 |
|||
Placing boom |
Reach height |
m |
37 |
||
Reach depth |
m |
25 |
|||
Slewing radius |
m |
32.6 |
|||
Slewing angle |
° |
370 |
|||
Stretch angle of 1st boom |
° |
94 |
|||
Stretch angle of 2nd boom |
° |
180 |
|||
Stretch angle of 3rd boom |
° |
180 |
|||
Stretch angle of 4th boom |
° |
230 |
|||
Outrigger span |
Longitudinal |
mm |
6860 |
||
Transverse span of front outrigger |
mm |
7280 |
|||
Transverse span of rear outrigger |
mm |
6600 |
|||
Others |
Batching |
S valve |
|||
Lubrication |
Automatic lubrication |
||||
Control |
Manual/remote control |
||||
Water tank volume |
L |
600 |
|||
ure of water pump |
MPa |
2 |
|||
