36m Working Radius Tower Crane TC3608 With Good Price for Sale

Name: 36m Working Radius Tower Crane TC3608 With Good Price for Sale
Brand: Silkway
SKU: 140803886
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Construction machinery

Rated Loading Capacity:

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Construction machinery

Rated Loading Capacity 3t

Max. Lifting Load 3t

Max. Lifting Height 105m

Place of Origin Jiangsu, China

Brand Name Silkway

Model Number TC3608 (QTZ30 )

Certification CE, ISO9001

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Free height: 32 m
Max height: 105 m
Jib length: 36 m
Max load: 3 t
Tip load: 0.8 t

Specialist for exporting tower crane

With Hydraulic Self-raising Mechanism

With Famous Jiangte Motors

With Various Safety Devices

High quality and competitive price, high performance.

Model	TC3608 (QTZ30 )
Version	Fixed type
Free height	32 m
Max height	105 m
Max radius	36 m
Jib end load	0.8t at 36 m
Max load	3.0t at 11.7 m

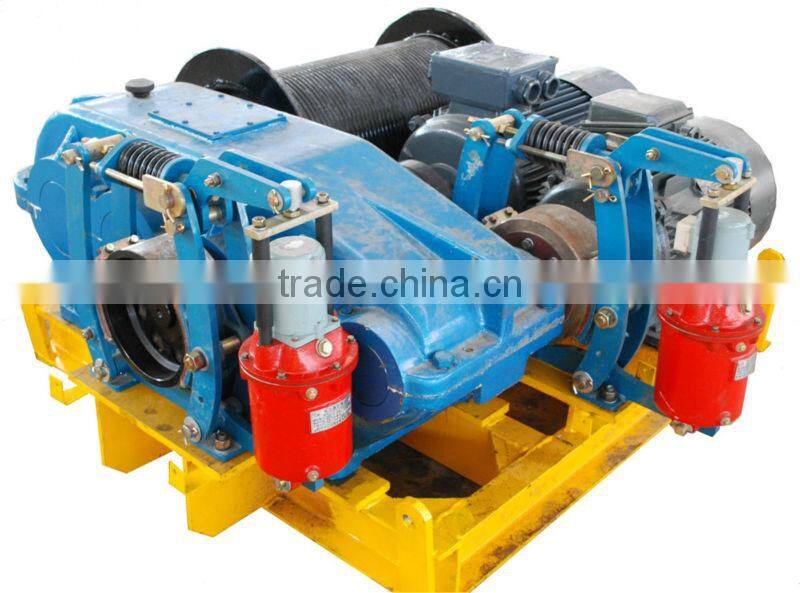

Hoisting mechanism ↑↓	JT1
Drum capacity	300 m
Lifting speed	4.6m/min~62.7m/min

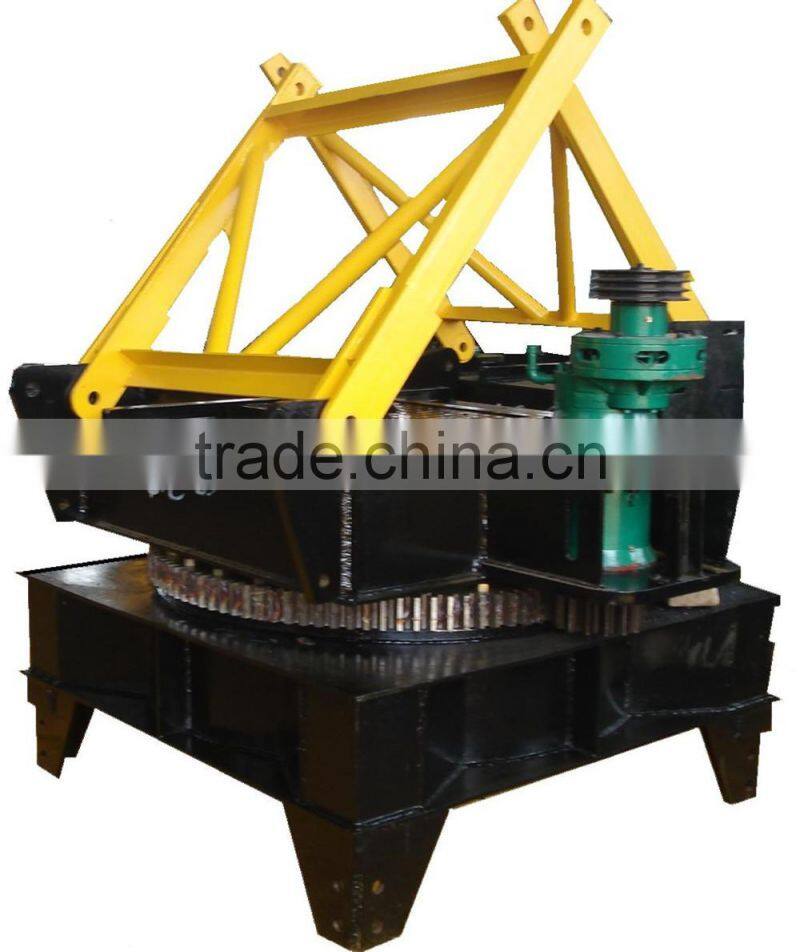

Slewing mechanism	HZ-30
Slewing speed	0.7 r/min
Trolley mechanism ←→	BF-30
Trolley speed	20 or 40 m/min
Power line voltage	380V/50Hz
Color	Yellow
Counter weight	Stell-structured frame(without concrete)

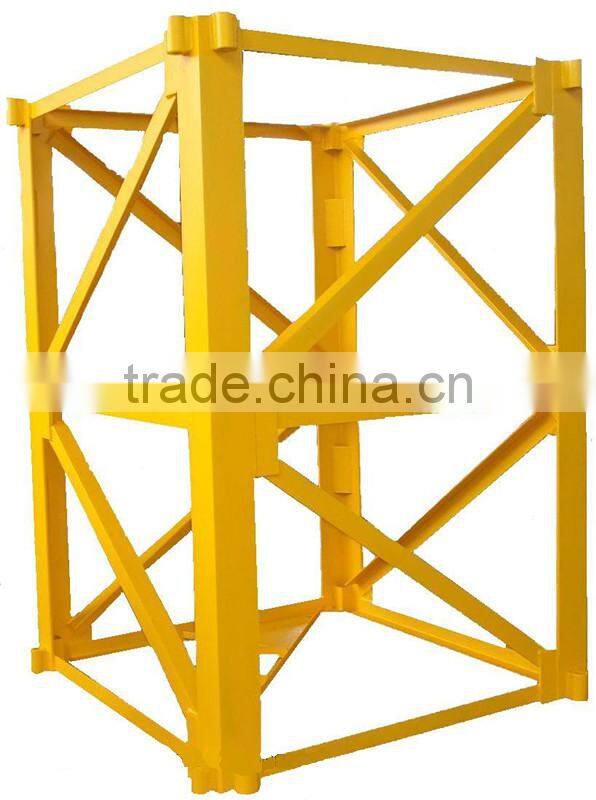

Mast section	1.6×1.6×3m
Mast section and Mast section connection	By screw
Foundation bolt	Included

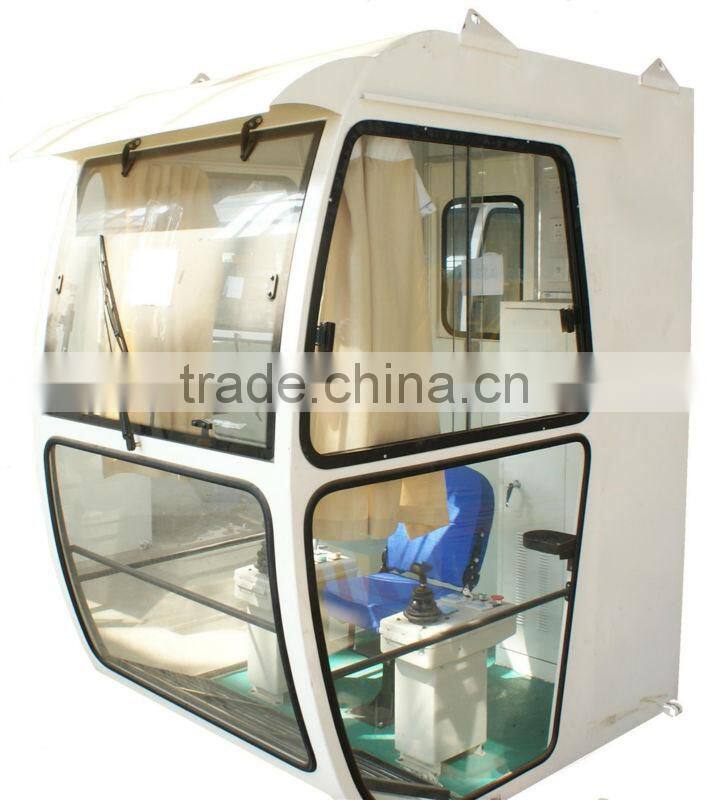

Cabin	Included
Internal framework	Included
Jacking-mechanism	Included
Main electric cable 50m	Included
Base section	Included
