KMM 01U Amper Voltage Frequency True RMS Digital Multimeter

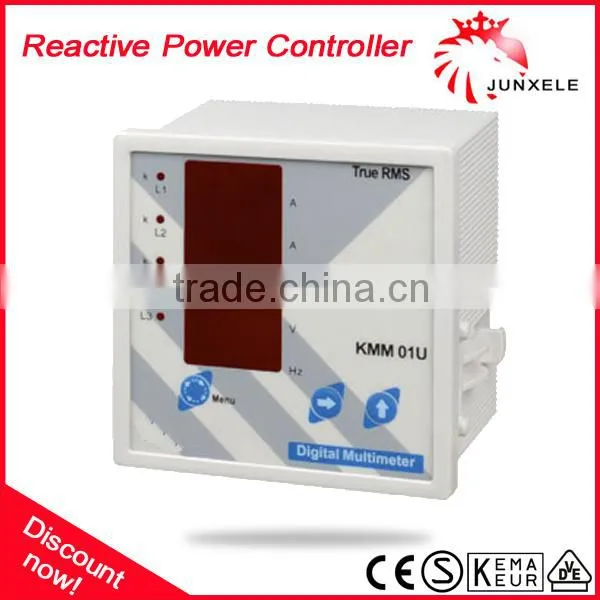

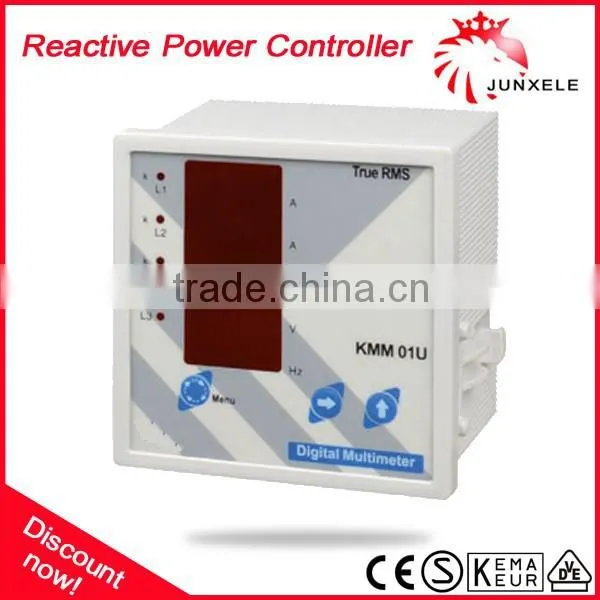

KMM 01U Amper Voltage Frequency True RMS Digital Multimeter photo-1
US$ 1 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JUNXELE
Model Number:
KMM 01U
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai for true RMS digital multimeter
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name JUNXELE
Model Number KMM 01U
Display Type Digital Only
Phase Three Phase
Measuring Energy Range 0-9999A
Accuracy Class 1
Output Voltage 230V
Operating Temperature -5~55 DEGREE
Dimensions 96*96, 96*96

true RMS digital multimeter



KMM 01U amper voltage frequency true RMS digital multimeter

Product Description



KMM 01U

      KMM 01U is very advanced multimeter which gives user precise readings in 4 digits and seperate CT ratio adjustments for
flexible systems. It is not only measures the current pulled from the L1, L2,L3 but also voltage and frequency of those lines in True RMS.
      There is 5 rows for measurement digits. Three for the currents that are showed continuously, one for the voltage that is cycling every 3 seconds (VL1,VL2,VL3,VL1-L2, VL1-L3, VL2-L3) and one for the frequency of the line voltmeter shows (between phases shows the first phase’s frequency).







Ampermeter

Measures very accurately, the current value of the line (AC+DC)in True RMS. When the reading excesses 9999A, it shows Err1
     fault message.
* Each line can be measured between 0-9999A.
  - 4 digit display gives exact values.
* Each line can have different CT ratio.
  - This gives flexibility for further modifications of the system.
* CT ratio can be between 1...2000 any value,
  - This gives the opportunity of CT calibration.







Voltmeter

      Measures very accurately, the voltage value of the line (AC+DC) in True RMS. The values measured shown every 3 seconds (VL1,VL2,VL3,VL1-L2, VL1-L3, VL2-L3)in a cycle. If user would like to observe any of the lines value, the only thing is to select the desired value, it will show selected value for 60 seconds continuously, than begins to cycling again.







Frequencymeter

     Shows the frequency of the line that voltmeter shows. When the voltmeter shows between phases values it shows first phase’s frequency. For example : If the voltmeter shows L2-L3 value frequencymeter shows L2 frequency.







CT Ratio Adjustment

      By pressing the MENU () button on the front panel, desired current can be choosed, then CT ratio of the current shown; by pressing () adjustment digit is choosed and by pressing () adjustment can be done. For saving adjusted value, just waiting for 5 seconds is enough.

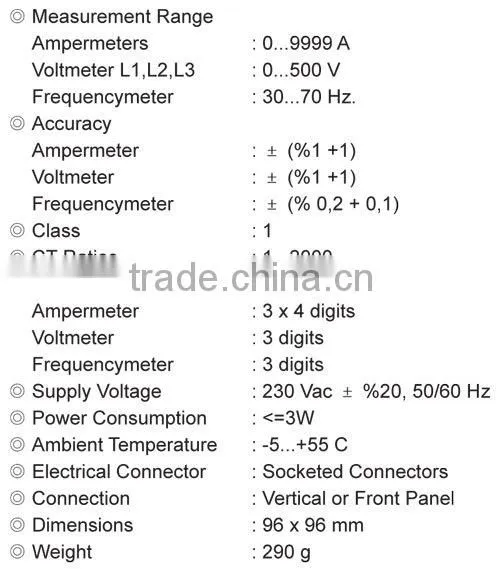

Technical Specifications

KMM 01U amper voltage frequency true RMS digital multimeter



Connection Scheme



 KMM 01U amper voltage frequency true RMS digital multimeter

Dimensions

KMM 01U amper voltage frequency true RMS digital multimeter



Packaging & Shipping





Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door; relay
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods. relay

Payment Terms
1. Payment: T/T, Western Union, B/L ; 30% deposits; 70% balance before delivery.
2.MOQ: 1pcs. digital multimeter
Our Services



1.We are Alibaba Assessed Gold Supplier. digital multimeter

2.We are a factory manufacturing circuit breaker,contactor,transformer,best production capability ,best quality control, Best Service .

3.100% QC inspection Before Shippment. digital multimeter

4. CE/SAA/SEMKO/KEMA/VDE listed,competitve price.
