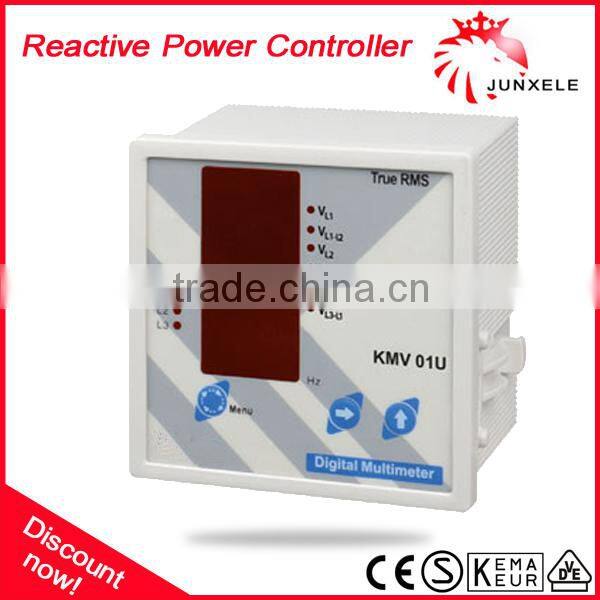

KMV 01U Voltage Frequency True RMS Digital Multimeter

KMV 01U Voltage Frequency True RMS Digital Multimeter photo-1
US$ 1 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JUNXELE
Model Number:
KMV 01U
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai for true RMS digital multimeter
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name JUNXELE
Model Number KMV 01U
Display Type Digital Only
Phase Three Phase
Accuracy Class 1
Output Voltage 230V
Operating Temperature -5~55 DEGREE
Dimensions 96*96, 96*96

KMV 01U  true RMS digital multimeter



KMV 01U voltage frequency true RMS digital multimeter

Product Description



KMM 01U

      KMM 01U is very advanced multimeter which gives user precise readings in 4 digits and seperate CT ratio adjustments for
flexible systems. It is not only measures the current pulled from the L1, L2,L3 but also voltage and frequency of those lines in True RMS.
      There is 5 rows for measurement digits. Three for the currents that are showed continuously, one for the voltage that is cycling every 3 seconds (VL1,VL2,VL3,VL1-L2, VL1-L3, VL2-L3) and one for the frequency of the line voltmeter shows (between phases shows the first phase’s frequency).







Voltmeter

      Measures very accurately, the voltage value of the line (AC+DC) in True RMS. The values measured shown every 3 seconds (VL1,VL2,VL3,VL1-L2, VL1-L3, VL2-L3)in a cycle. If user would like to observe any of the lines value, the only thing is to select the desired value, it will show selected value for 60 seconds continuously, than begins to cycling again.







Frequencymeter

     Shows the frequency of the line that voltmeter shows. When the voltmeter shows between phases values it shows first phase’s frequency. For example : If the voltmeter shows L2-L3 value frequencymeter shows L2 frequency.







CT Ratio Adjustment

      By pressing the MENU () button on the front panel, desired current can be choosed, then CT ratio of the current shown; by pressing () adjustment digit is choosed and by pressing () adjustment can be done. For saving adjusted value, just waiting for 5 seconds is enough.

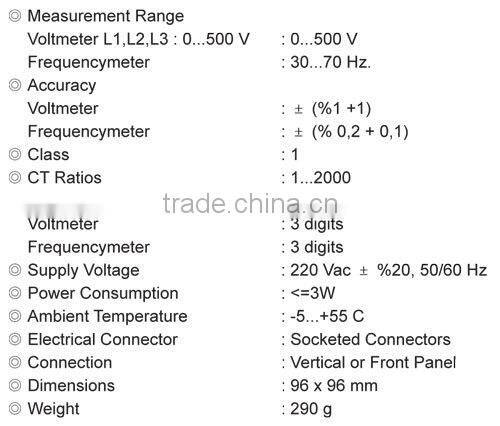

Technical Specifications

KMV 01U voltage frequency true RMS digital multimeter



Connection Scheme

 KMV 01U voltage frequency true RMS digital multimeter

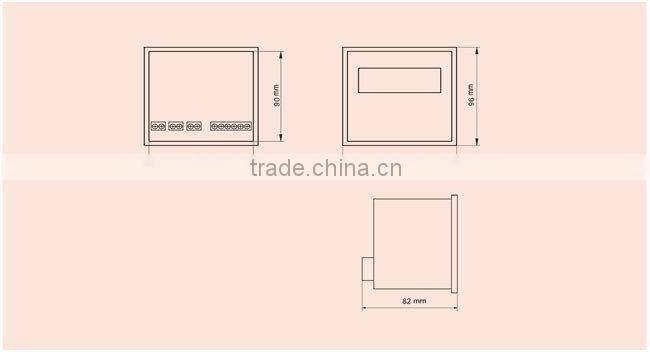

Dimensions

KMV 01U voltage frequency true RMS digital multimeter
