Home > Industrial Equipment & Components > Filtration Equipment & Parts > Machine Oil Purifier > Trailer Mounted Transformer Oil Purifier Machine

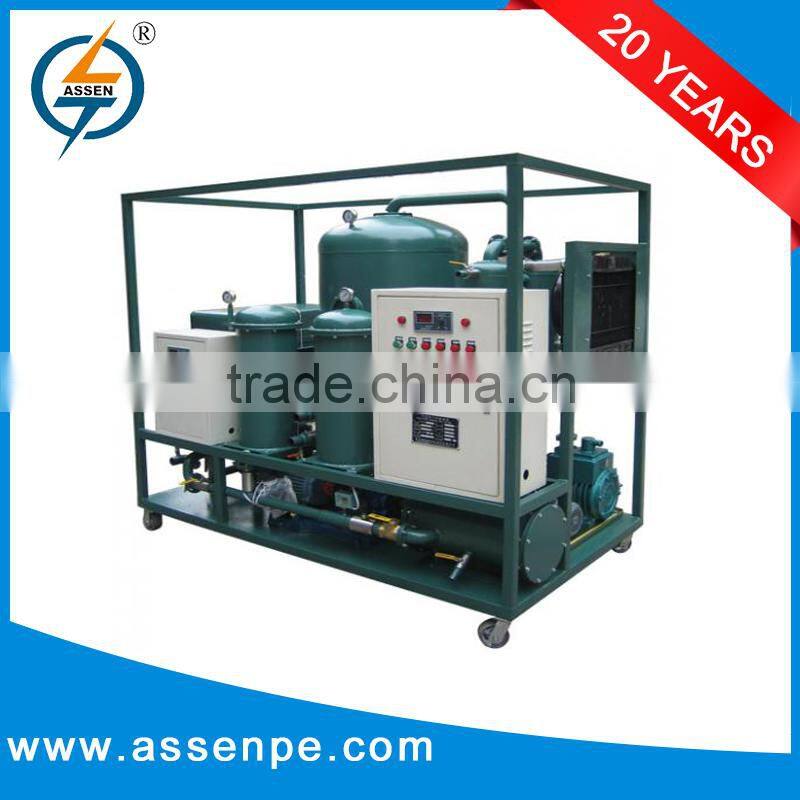

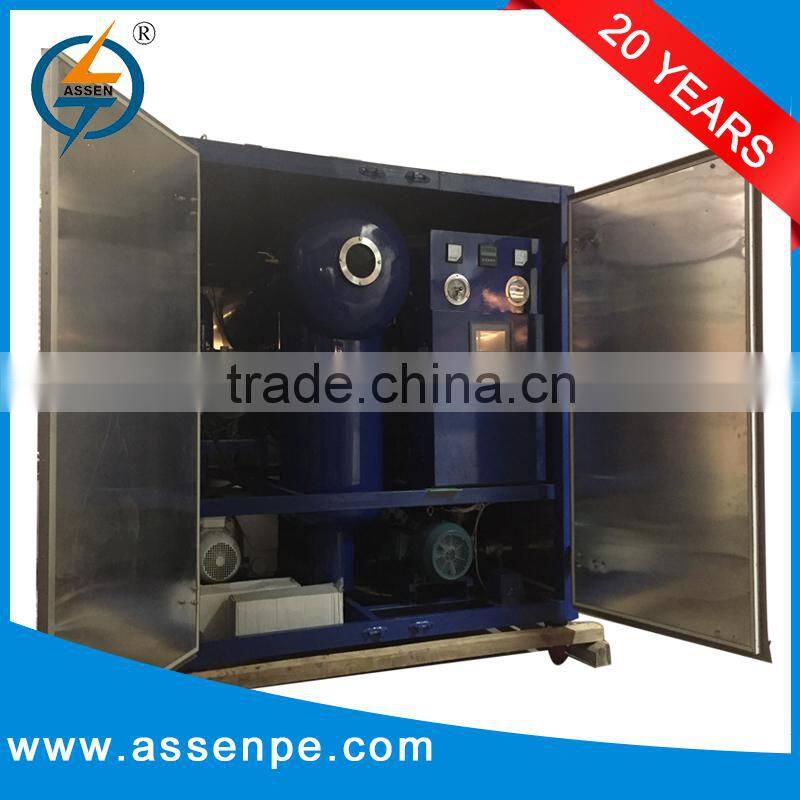

Trailer Mounted Transformer Oil Purifier Machine

Name: Trailer Mounted Transformer Oil Purifier Machine
Brand: ASSEN
SKU: 102105449
Availability: InStock

Trailer Mounted Transformer Oil Purifier Machine thumbnail-1

Trailer Mounted Transformer Oil Purifier Machine photo-1

US$ 8,500 - 15,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Flow:

6000LPH

Working Pressure:

0.4MPA

Contact Supplier Request Quote Chat Now

Chongqing Assen Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Flow 6000LPH

Working Pressure 0.4MPA

Place of Origin Chongqing, China

Brand Name ASSEN

Model Number ZYD-100

Usage Transformer Oil

Voltage 380V or as customer's needs

Power(W) 45KW

Dimension(L*W*H) 1650*1200*1500mm

Weight 850KG

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

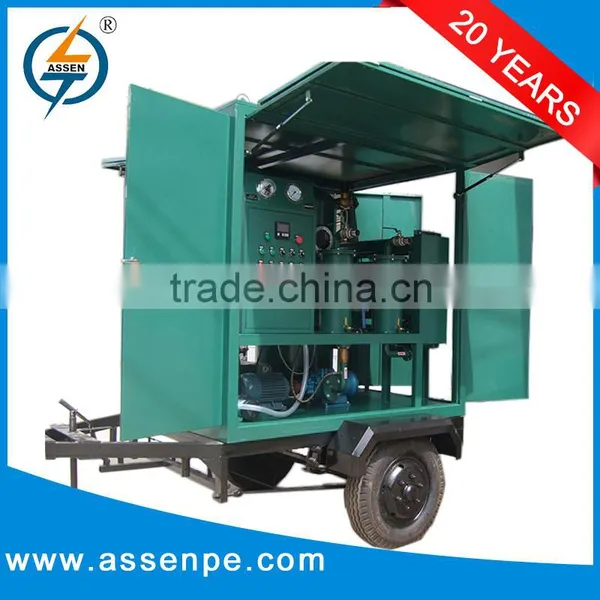

Trailer mounted Transformer Oil Purifier machine

Product Application

ASSEN ZYD-M Trailer mounted Transformer Oil Purifier machine can remove water and gas in the insulating oil under high temperature and vacuity. it use more precise filter system to filter out impurities(filtering precision: 1-3um). It is mainly used for purification of oil for transformer with voltage higher than 220kv. It can increase oil breakdown voltage by at least 40kv.They are suitable for oil treatment, vacuum oil injection, and cyclic hot-oil drying in the installation and maintenance of big transformers.

Product Features

1. Unique and highly efficient dewatering and degassing device, it adopted a large area three-dimensional flash evaporation and mature film evaporation technology to rapidly remove the free and dissolved water and gases from used and waste insulating oils.
2. Precise filtration system, high quality filter element, multi-stage filtration system levels, can effectively remove the mechanical impurities from the insulating oils.
3. Electrical heating system is the optimized pipeline design to ensure uniform heating and stable oil temperature.
4. Automatic constant temperature control device, automatic liquid level control device, automatic defoaming device, automatic pressure protection device and excellent configuration can ensure the equipments in high performance.
5. Work online and the indicators display running.
6. Unattended operation with low working noise and longtime free maintenance.
7. A complete machine safety interlock protection system, discharge oil system, vacuum system and the heating system interlock, to avoid the adverse effects of misuse.

Product Description

Oil purifier machine:

Transformer is one of the main asset in the electrical power industry which needs to be maintained for guaranteed uninterrupted power transmission in order to get assured revenue benefits.
Transformer life mainly depends on the quality of oil volume it contains.
Transformer oil conditioning may also include to some extent improving the acidity of the oil.
A good oil purification system is able to deliver filtered oil with parameters as per the standard specification.

Oil purifier machine's Technical Data:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow		L/min	30	50	100	150	200	250	300
Working vacuum		MPa	0.08 ~ 0.099
Working Pressure		MPa	≤0.3
Breakdown Voltage		KV	≥75
Water Content		PPM	≤3
Gas Content		%	≤0.01
Impurity Size		μ	≤5
Temperature Range		°C	20 ~ 80
Power			Three Phase 50HZ380V(as per the customer's requirements)
Working Noise		dB(A)	75	75	75	80	80	80	80
Heating Power		kW	30	30	45	60	75	90	120
Total Power		kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900

Structure Chart:

The oil technical data after treatment:

Gas content less than 0.1%
Impurity size less than 1μm without free carbon
Oil dielectric strength (breakdown voltage) more than 75KV
Acidity value less than 0.01 mgKOH/g
Dielectric loss factors at 90°C less than 0.001

Oil purifier machine's Advantage:
Comparing with the single-stage type, this series adopts the double-stages vacuum system, which immensely raises the machine's working vacuum degree, so it can dewater, degas and remove particulate impurities much more efficiently. It allows the transformer to be in service while impurities are effectively removed.

Packaging & Shipping

Our Services

Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
OEM is available for Anern Products.
Protection of your sales area, ideas of design and all your private information.

Our Customers

FAQ

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
