Home > Industrial Equipment & Components > Filtration Equipment & Parts > Machine Oil Purifier > High Vacuum Transformer Oil Dehydration Plant

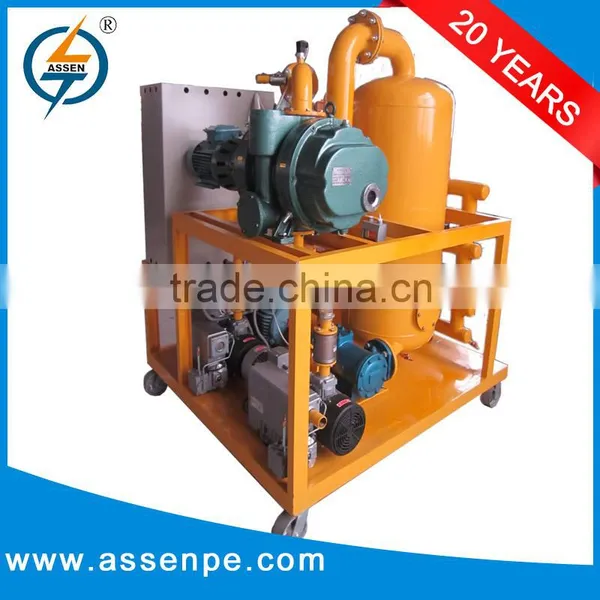

High Vacuum Transformer Oil Dehydration Plant

Name: High Vacuum Transformer Oil Dehydration Plant
Brand: ASSEN
SKU: 102105629

High Vacuum Transformer Oil Dehydration Plant thumbnail-1

High Vacuum Transformer Oil Dehydration Plant photo-1

US$ 8,000 - 16,800 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Flow:

3000LPH

Working Pressure:

0.5mpa

Contact Supplier Request Quote Chat Now

Chongqing Assen Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHONGQING

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Flow 3000LPH

Working Pressure 0.5mpa

Place of Origin Chongqing, China

Brand Name ASSEN

Model Number ZYD-50

Usage Transformer Oil

Voltage 220 380 400

Power(W) 55KW

Dimension(L*W*H) 1600*1050*1450MM

Weight 600KG

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

High vacuum Transformer Oil Dehydration Plant

Product Application

Series ZYD High vacuum Transformer Oil Dehydration plant is designed for the following applicaitions.

a. Degassing, dehydration and filtering impurities of transformer oil,insulating oil
b. Remove acidity, sludge, free carbon, other soluble oil decay products and discoloration
c. It can vacuum filling oil to transformer, vacuum dry transformer and on-line operation transformer .

d. It is mainly used for purifying the insulating oil, transformer oil, mutual oil, switch oil, dielectric oil and so on. The standard ZYD system is designed for processing oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers).

Product Features

1.Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil such as water, air and gas.
2. It can be widely used for oil filling for transformers and circuit breakers under vacuum condition.
3. Precise filtration system, high-quality filter element, multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.
4. An advanced fully automatic temperature controlling system,liquid-level controlling system,defoaming controlling system,pressure protecting system and excellent configuration can ensure operation of the equipment with high performance.
5. Online work,allowing separated operation of manual operators from machine with lamps indicating the condition for operation.
6. It is humanization design with low noise,deep purification and long time free maintenance to save cost from the running process.
7. Purifiers are equipped with a chain safety protective system,an interlocking of oil drainage system,vacuum system and heating system,which avoids any possible negative impacts caused by mal-operation.

Product Description

Oil dehydration plant:

In the transformer project, dielectric strength and dry of transformer oil is most important. For keeping transformer oil absolutely clean and drying, our company develop ZYD high vacuum transformer oil dehydration plant, it uses two stages vacuum dehydration and degasification system. We also install three stage filtering system for removing particles well. ZYD high vacuum transformer oil dehydration plant is widely used in electric power, transforming electricity industry, metallurgy, chemical engineering, traffic, railway and others project.

Oil dehydration plant's Technical Data:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow		L/min	30	50	100	150	200	250	300
Working vacuum		MPa	0.08 ~ 0.099
Working Pressure		MPa	≤0.3
Breakdown Voltage		KV	≥75
Water Content		PPM	≤3
Gas Content		%	≤0.01
Impurity Size		μ	≤5
Temperature Range		°C	20 ~ 80
Power			Three Phase 50HZ380V(as per the customer's requirements)
Working Noise		dB(A)	75	75	75	80	80	80	80
Heating Power		kW	30	30	45	60	75	90	120
Total Power		kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900

Structure Chart:

The oil technical data after treatment:

Gas content less than 0.1%
Impurity size less than 1μm without free carbon
Oil dielectric strength (breakdown voltage) more than 75KV
Acidity value less than 0.01 mgKOH/g
Dielectric loss factors at 90°C less than 0.001

Oil dehydration plant's Advantage:

Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machines working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 75 KV. It is very suitable for the large electric & insulation equipments.

Packaging & Shipping

Our Services

Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
OEM is available for Anern Products.
Protection of your sales area, ideas of design and all your private information.

Our Customers

FAQ

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
