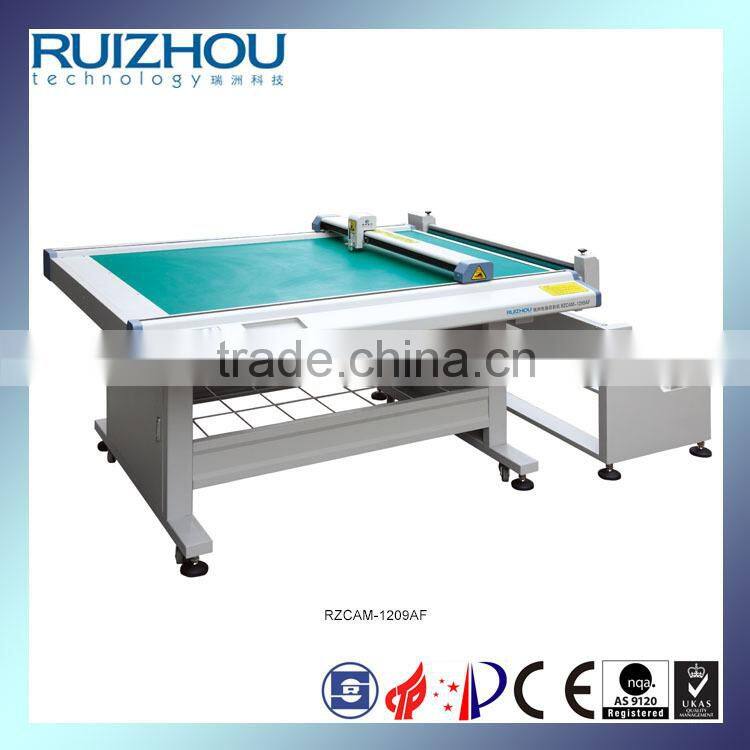

Model: RZCAM-1209AF
Cutting area: 1200mm x 900mm
Speed: 500mm/s -1200mm/s
CE, ISO
Automatic Feeding System Table for Pattern Making in Footwear
RUIZHOU RZCAM series cutting machines are mostly used for patterns or samples making. This digital cuttingmachine works with
computer, therefore, any design shape can be sent to this machine for your cutting purpose. It is widely used in footwear, garment, bag industries. It can creat accurate shoe, garment, bag patterns on standard pattern paper, cardboard, PVC, plastic, etc.
KEY FUNCTIONS
1.Multi-functional cutting tool, be able to do complete cutting, half cutting, kiss cutting, and dot cutting;
2.Drawing and marking on materials by ball pen or oil pen.
TECHNICAL PARAMETER
| Available Model | RZCAM-0906A | RZCAM-1209A | RZCAM-1509A | RZCAM-1512A | RZCAM-1812A |
| Cutting Area | 900*600mm | 1200*900mm | 1500*900mm | 1500*1200mm | 1800*1200mm |
| Cutting Speed | 600-1000mm/s | ||||
| Cutting Thickness | 0.5mm ~ 2.0mm | ||||
| Cutting Materials | Paper, Cardboard, Red Hard Paper, Plastic board, Craft Paper etc | ||||
| Cutting Tool | Pen Tool, Knife Tool | ||||
| Motor | Stepping Motor | ||||
| Accp. Pen Type | Ordinary signing pen, Oil pen, Ball-point pen, Silver pen | ||||
| Material Fixing Method | Vacuum Absorption | ||||
| Mechanical Resolution | 0.07mm | ||||
| Software Resolution | 0.025mm, 0.01mm, 0.1mm optional | ||||
| Interface | Standard parallel port or serial port | ||||
| Buffer Size | Once-and-for-all high-speed transmission | ||||
| Command System | HP-GL & GP-GL Format | ||||
| Control Panel | LCD Display, Touch Button | ||||
| Power Consumption | AC 220/380 V ±10%,50/60 HZ | ||||
MODEL
Three main standard cutting areas are available

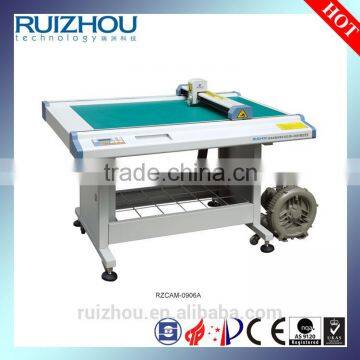

1.RZCAM-0906A, RZCAM-0906E (Cutting area: 900mm x 600mm)

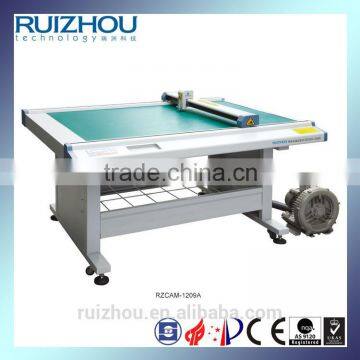

2.RZCAM-1209A, RZCAM-1209AF (Cutting area: 1200mm x 900mm)

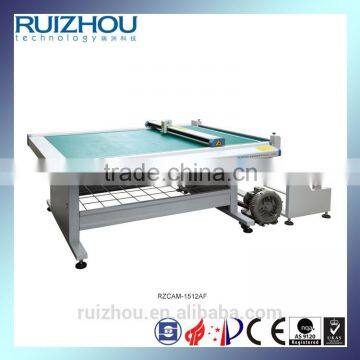

3.RZCAM-1512A, RZCAM-1512AF (Cutting area: 1500mm x 1200mm)
4.RZCAM-1509A, RZCAM-1509AF (Cutting area: 1500mm x 900mm)
5.RZCAM-1812A, RZCAM-1812AF (Cutting area: 1800mm x 1200mm)
(Please note as a manufacturer, we can also design a new model with different cutting area, if you really need.)

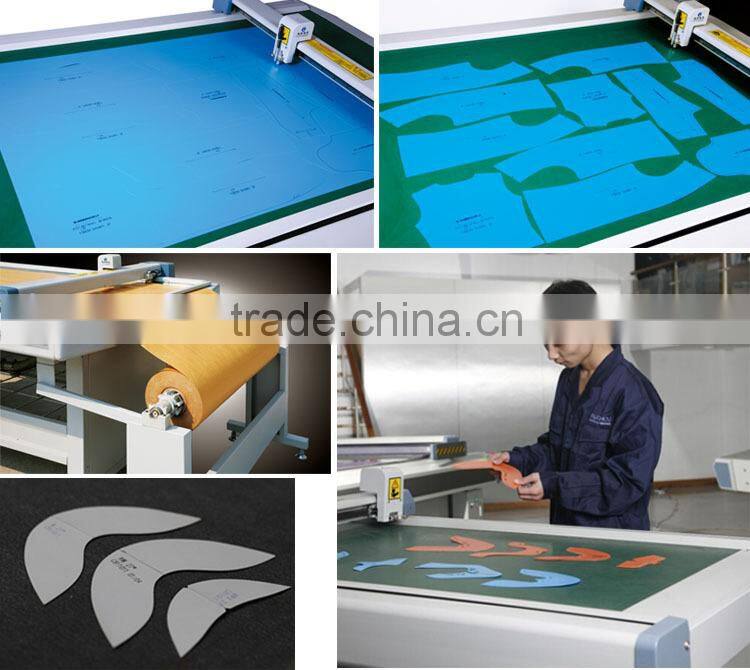

WORKING FLOW
SUPPORTED SOFTWARE
• AutoCAD
• AI
• Coreldraw
• Gerber
• Lectra
• Any CAD software with HPGL format.
APPLICATION
It is widely use in footwear, garment, gloves and bags industries.
AVAILABLE CUTTING MATERIALS
•Paper
•Cardboard
•PVC
•Kraft Paper
•Kraft Board
•Sticker

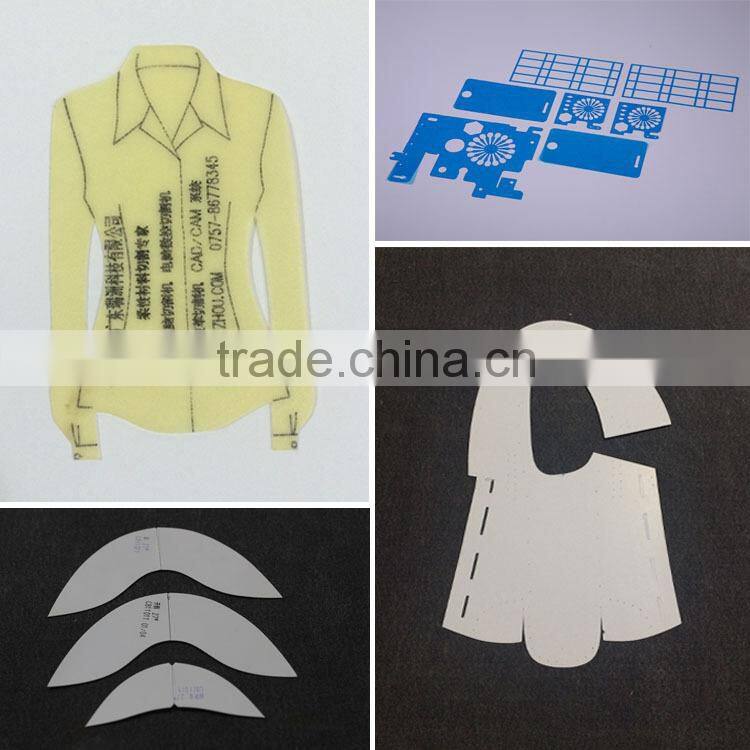

CUTTING EFFECT
1.Accurate
2.Speed and Smooth
3.Delicate
4.Multifunctional
INNOVATIVE FEATURES
1.RUIZHOU CNC cutting machines use imported American CPU and precise eletronic components, meeting world leading level in
terms of machines stability and operability.
2.Self developed built in CNC control system.
3.File format can be DXF, PLT and any CAD software with HPGL format
4.8 groups of knives and penarrangement provides cutting solution for different material with different thickness
5.RUIZHOU CNC cutting machines equipped with imported linear guiderail, famous driving motors. It is fast, accurate, smooth.
Exhibition
We take part in exhibitions both at home and abroad every year.
OUR CUSTOMERS
RUIZHOU requite her customers with sincerity. She wins the market with good services, build brand with good quality, strive for
excellence with technology. Over the past years, RUIZHOU has received trust and praise from our customers. Our product sold
to European, Korea, India, Mexico, Malaysia, Vietnam, Hong Kong and Taiwan. The clients we have severed, at home and abroad,
up to 5000 famous companies, includeing: ST&SAT, BELLE, DAPHNE, NIKE, ADIDAS, Guangzhou Honda, Guangzhou TOYOTA,
Goldlion and so on.
ABOUT US
1.20 years of experience in CNC cutting technology;
2.The first and biggest CNC cutting machine manufacturer in China;
3.We focus on the research and development of CNC knife-cutting technology and related CAD software over the
past 20 years;
4.HAAS and DMG machine tool are used to produce key components;
5.We imported Servo Motor from Panasonic and Straight-line guide rail from Germany;
6.The quality and service are regarded as the life of our corporation;
7.We will never be satisfied until you are satisfied;
8.Our engineering team never stop to improve our machine and upgrade our software;
9.Ruizhou is based in Foshan, aiming at the global market.
OUR HORNOR
GUARANTEE & AFTER SALE SERVICE
1.One year guarantee for whole machine except consumables such as knife blade, mat.
2.You are welcome to our company to have a professional trainning and observation.
3.Calling or door-to-door service.
4.24 hour online and hot line services.
5.Use friendly-English software, usual manual and detailed videos.
You are welcome to contact us for further information!
