Specifications

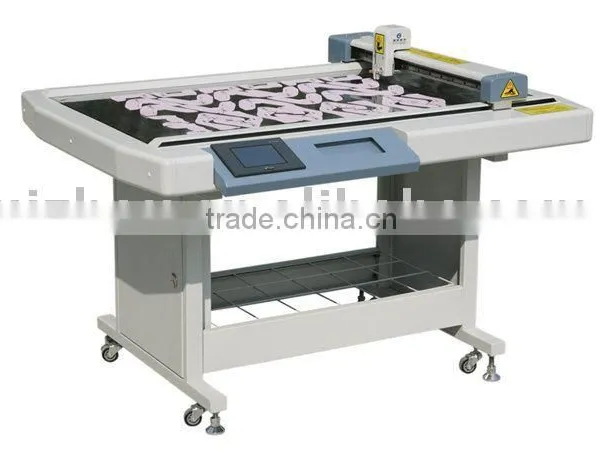

Footwear paper pattern cutting machine is specially developed for digital shoes sample production, save cost and improve qualityFootwear Paper Pattern Cutting Machine
Ruizhou high-speed pattern cutting machine is specially developed cutting solution for footwear and garment industry. Introducing electrostatic adherence technology, it is able to create accurate footwear and garment patterns on different kinds of paper materials in a low noise.
Features:
- Application of self-developed built-in digital control system, imported American CPU and precise electronic components reach the technologically leading level at home and abroad in stability and operability.
- Joint use of imported linear tracks and synchronous belt in the machine makes the cutting precision up to the zero error of shuttle origin completely.
- Touch control LCD display and digital control interface facilitate operation.
- Standard I/O interface and HP-GL and GP-GL formats; cutting speed of 80-120cm/s.
- Exceptional form-feed cutting function from the home-made cutting machine.
- Connectible to random CAD software, it is widely used in such industries as apparel, shoe-making, suitcases, bags and lamps.
Technical Parameters:
Available Model |
RZCUT-0906E |
RZCUT-1209E |
Working Area |
910mm*620mm |
1200mm*920mm |
Cutting Materials |
Paper, Cardboard, Fiber sheet (up to 2mm) |
|
Working Character |
The computer operation can be carried out at the same time with cutting, data transfer can be finished fast, and can be operated continuously. |
|
Working Performance |
Cutting Speed: 800-1200mm/s (Max.) |
|
Cutting Thickness: 0.5-2mm | ||
Mechanical Resolution: 0.1mm | ||
Blade and Pen Type |
Blade: wolfram steel; |
|
Pens: water-based fibertip, oil-based ballpoint, disposable ink pen. | ||
Material hold-down method |
Electrostatic Adherence |
|
Software Resolution |
0.025mm 0.01mm 0.1mm optional |
|
Interface |
Standard parallel or Serial port |
|
Command System |
HP-GL and GP-GL compatible mode |
|
Power Consumption |
200W AC 220±10%,50HZ |
|
Feeding Mode |
manual feeding / Auto-feeding |
|
