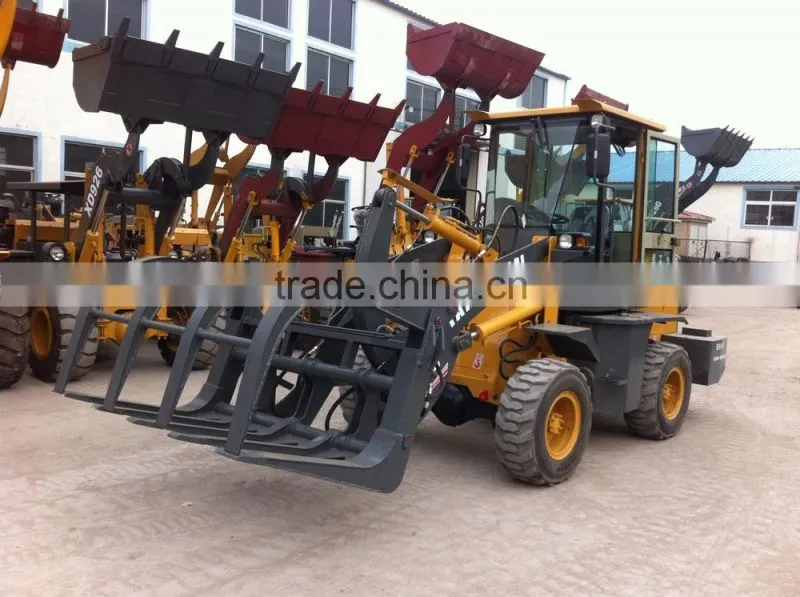

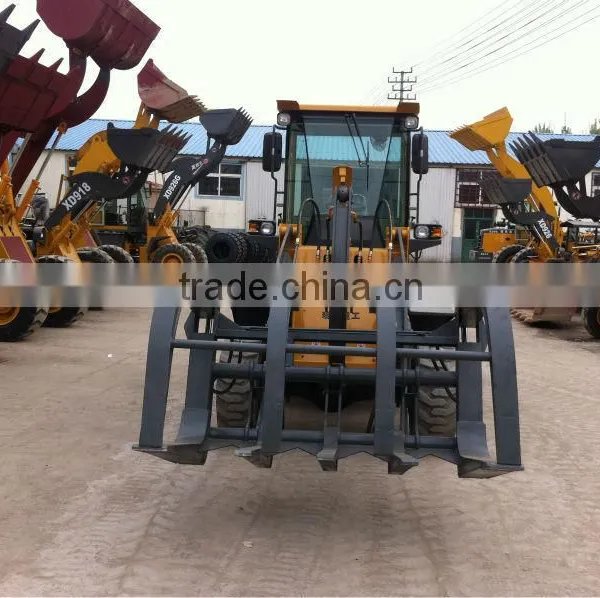

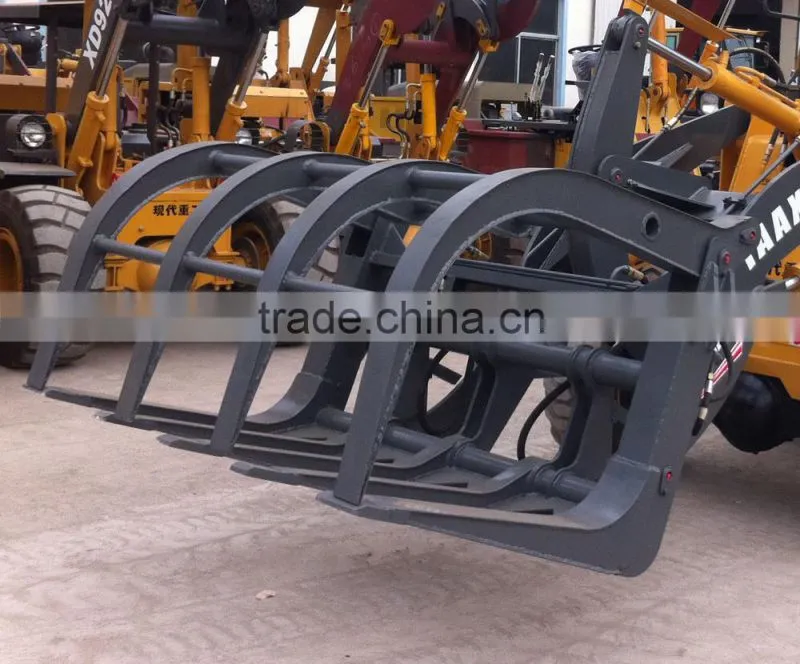

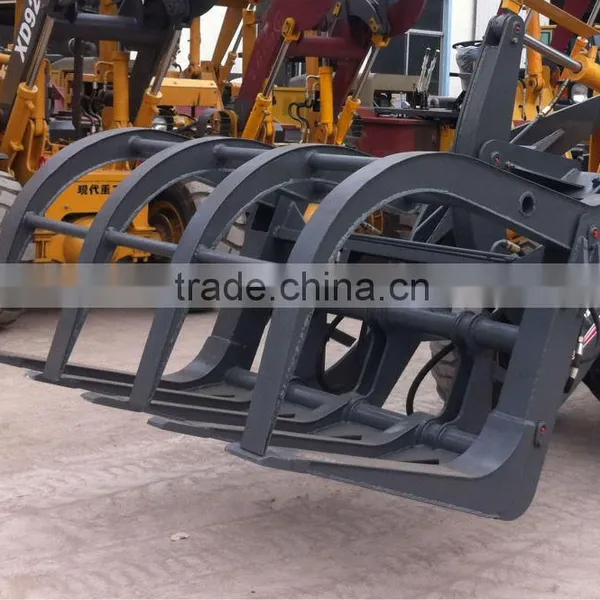

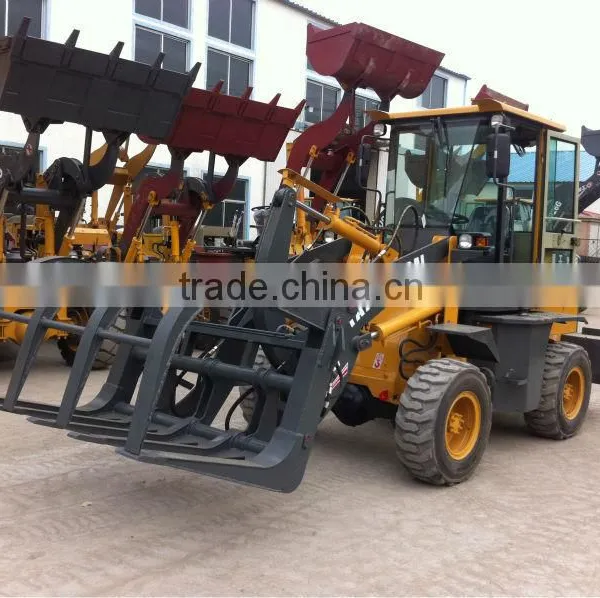

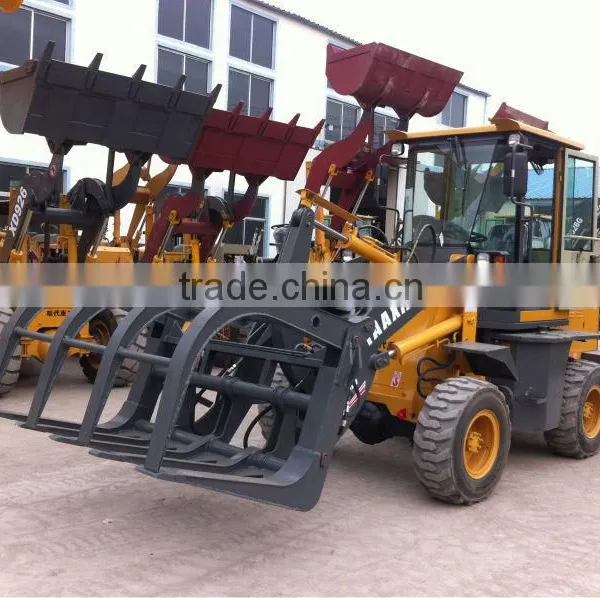

Help CenterXD912G 1.0T Farm Machinery Grass Grab Loader With CE FOR SALE Agricultural Machinery With Suger Cane Loader MADE IN CHINA
Related Products
-
XD935G 3.0T (Log Loader Wood Grab Loader )with CE FOR SALE For Forest Field and LumberyardUS$ 25,000 - 35,000MOQ: 1 Unit -
XD918F 1.6T Wood Grab Loader Log Loader( Express Forest Machine) With CE FOR SALE Made in ChinaUS$ 11,000 - 13,000MOQ: 1 Unit
-
1.0ton Grass Grabber Wheel Loader With CE Approved and Optional AttachmentsNegotiableMOQ: 1 Set
-
1.6ton Grass Grabber Wheel Loader With CE Approved and Quick CouplerNegotiableMOQ: 1 Set
-
2.0ton Grass Grabber Wheel Loader With CE Approved and Optional AttachmentsNegotiableMOQ: 1 Set
Specifications
1. High-performance engine is adopted2. Hydraulic motor driving
3. Versatile,reliable,excellent in small space.
I.Features&Benefits
1. High-performance engine is adopted for strong power, low fuel consumption and low noise.
2. Hydraulic motor driving,easy to maintain.
3. Versatile,reliable,excellent in small space.
II.Specifications
Model |
XD912G |
||
Main specifications | |||
Bucket capacity (m3 ) |
1.5 |
||
Rated load (t) |
1.0 |
||
Operation Weight (t) |
3.3 |
||
Lifting time of the arms (s) |
≤4.5 |
||
The sum of three items(s) |
≤8.5 |
||
Forward gear(km/h) |
I 0-6 II 0-20 |
||
Reverse gear(km/h) |
I 0-6 II 0-20 |
||
Max. climbing gradient (°) |
28° |
||

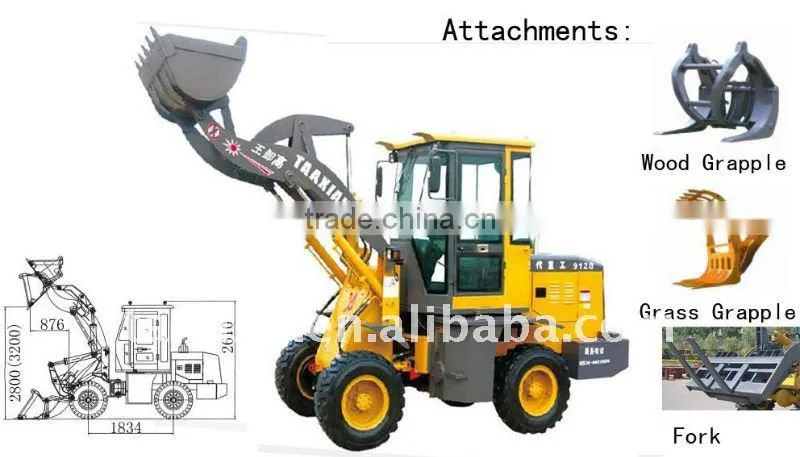

Dimensions | |||
Overall dimension (L×W×H mm) |
5100×1720×2650 |
||
Wheel base (mm) |
1834 |
||
Wheel tread(mm) |
1340 |
||
Max. dumping height(mm) |
2800/3200 |
||
Dumping reach (mm) |
876 |
||
Diesel engine | |||
Engine model |
490 |
||
Engine type |
In-line,water-cooling,4-stroke,4 cylinders,direct-injection |
||
Rated power(kw) |
33 |
||
Rated speed (r/min) |
2400 |
||
Total exhaust of cylinder(L) |
2.545 |
||
Type of starting |
Electric start |
||
Transmission system | |||
Driving motor |
|
||
Model |
2K-160 |
||
Type |
Constant displacement motor |
||
Displacement(ml/r) |
160 |
||
Gearbox |
|
||
Model |
ZL10 |
||
Type |
Mechanical |
||
Axle and tire |
|
||
Type of main reducer |
Spiral bevel gear,single stage |
||
Size of tire |
12-16.5 |
||
Working device of hydraulic system | |||
Model of working pump |
CBQ F532/F532 |
||
Nominal displacement(ml/r) |
32 |
||
Working system pressure(Mpa) |
17 |
||
Multi-way directional valve |
ZL15 |
||
Flow(L/min) |
15 |
||
Steering system | |||
Type |
Load-sensing hydraulic steering |
||
Displacement(ml/r) |
250 |
||
Max input pressure(Mpa) |
16 |
||
Brake system | |||
Type of traveling brake |
Inner expand hoof brake system |
||
Type of parking brake |
Drum brake |
||

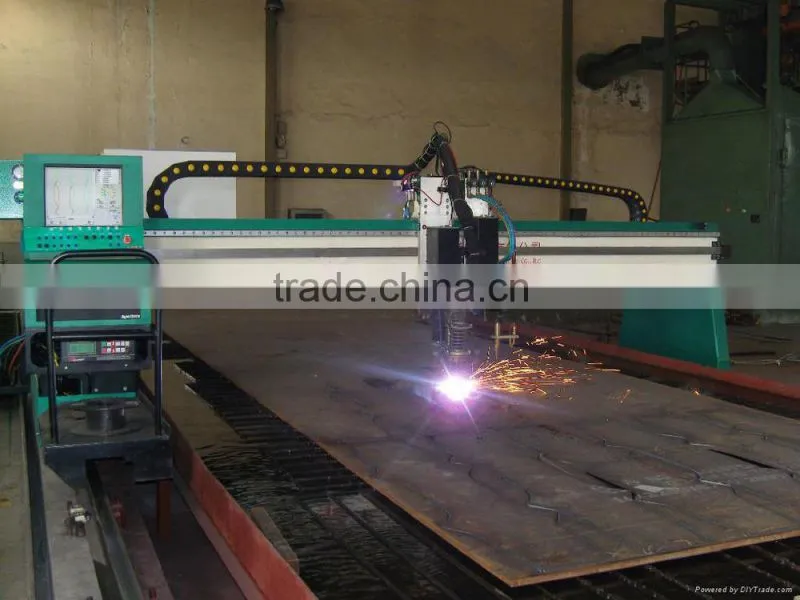

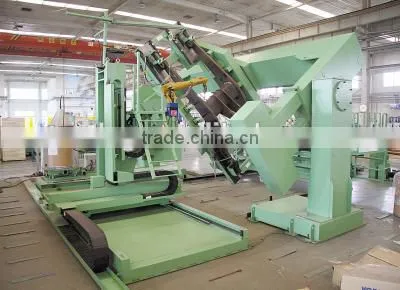

1. CNC Mechining Center

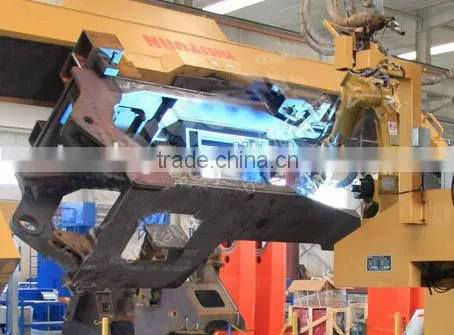

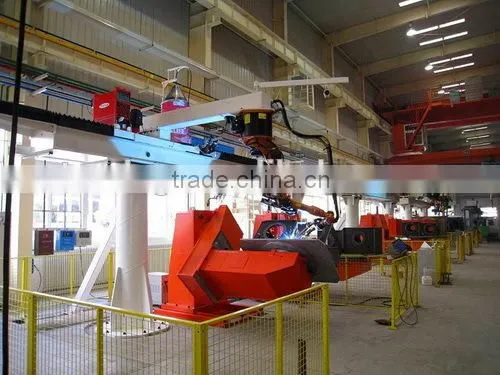

2.Robot Welding Center
3. Painting Center

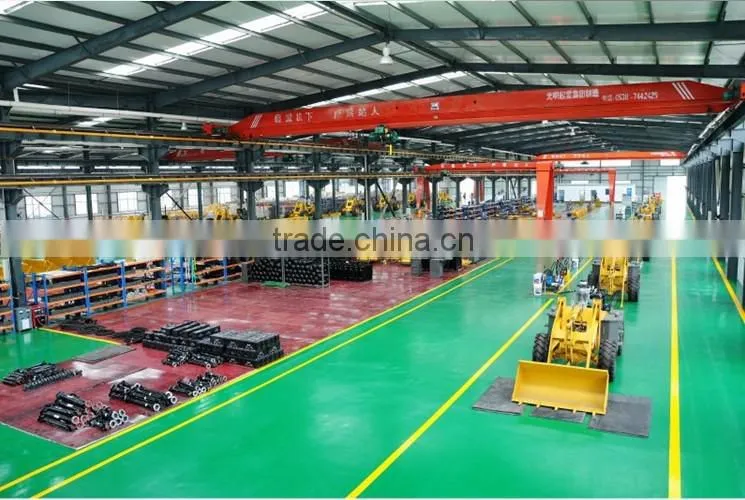

4. Assembly Center

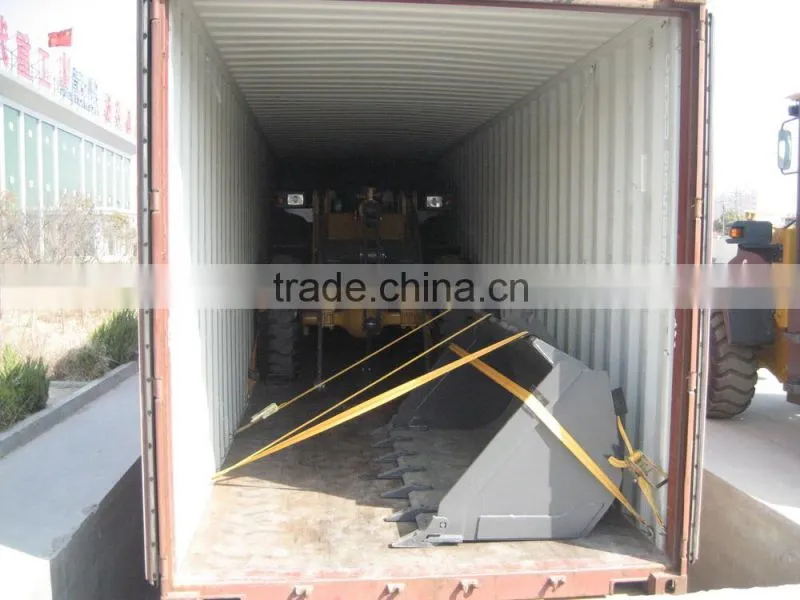

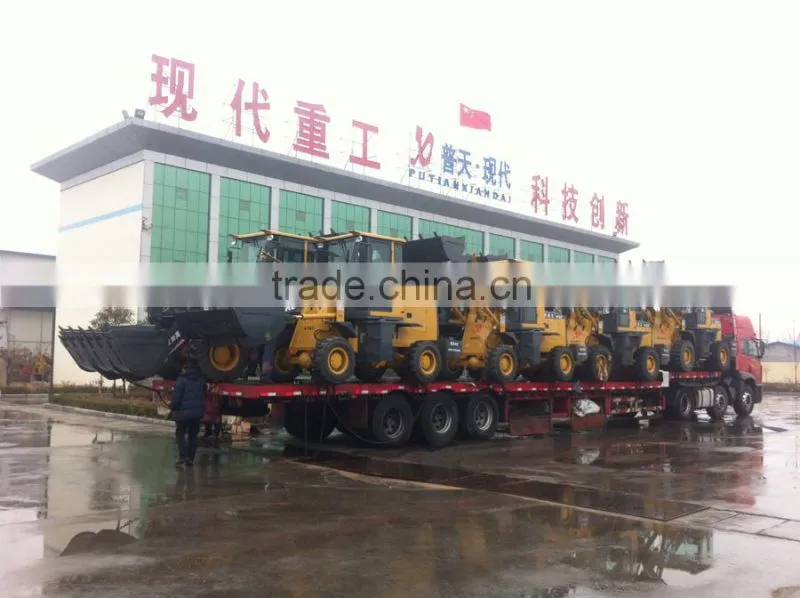

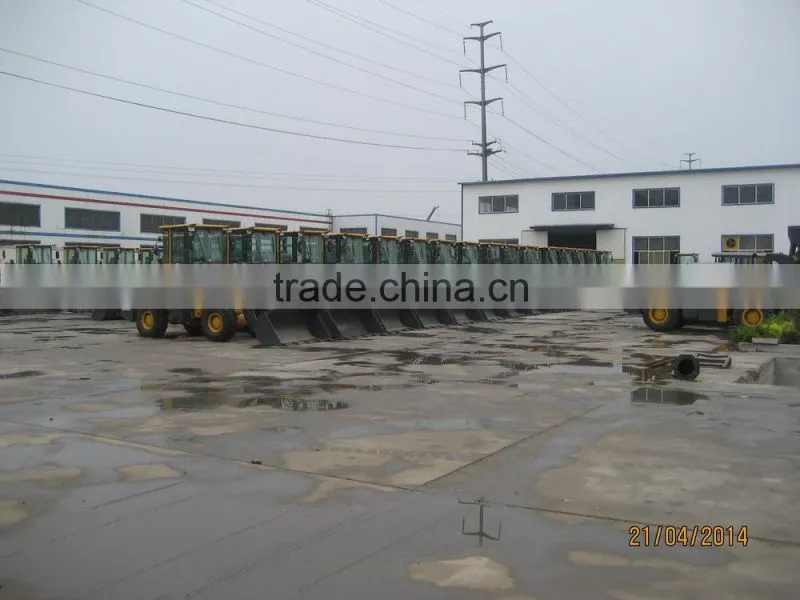

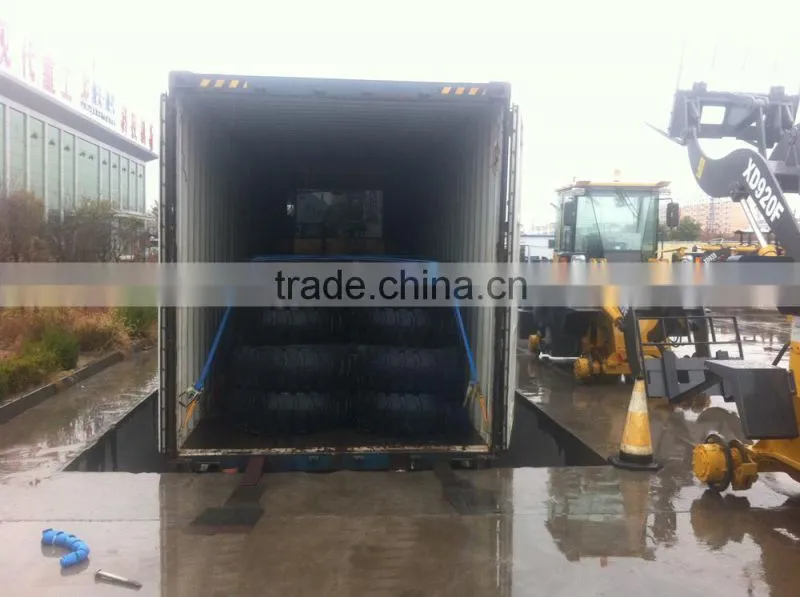

5.Transportation

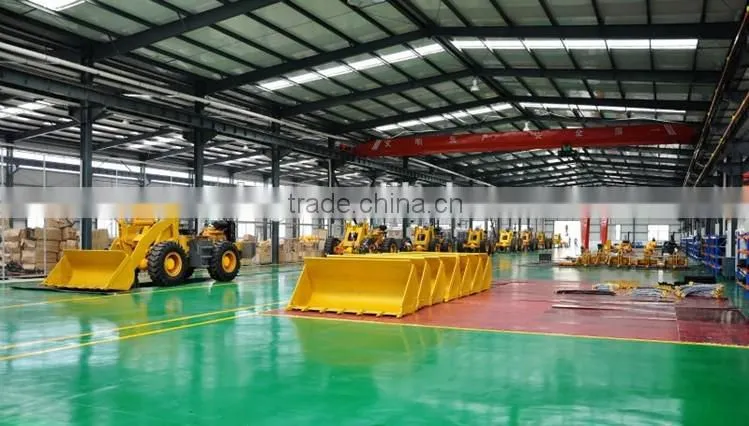

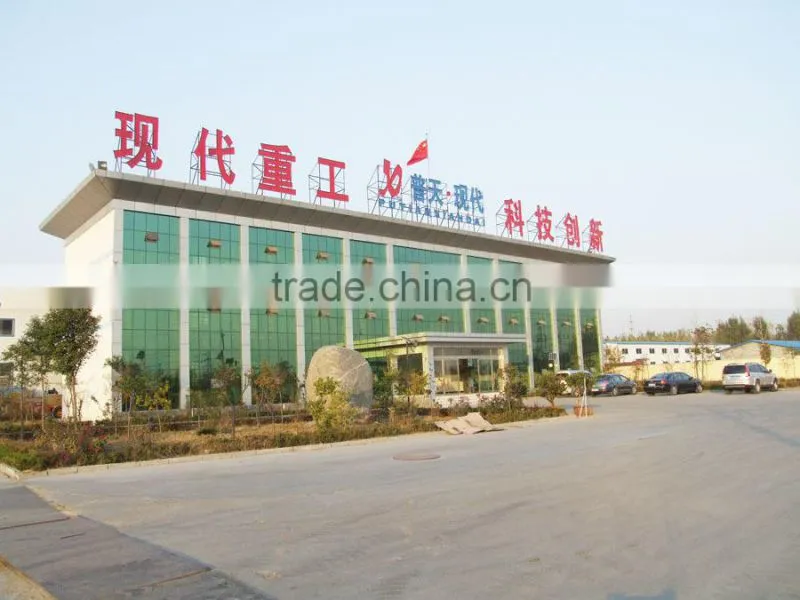

6. Factory
