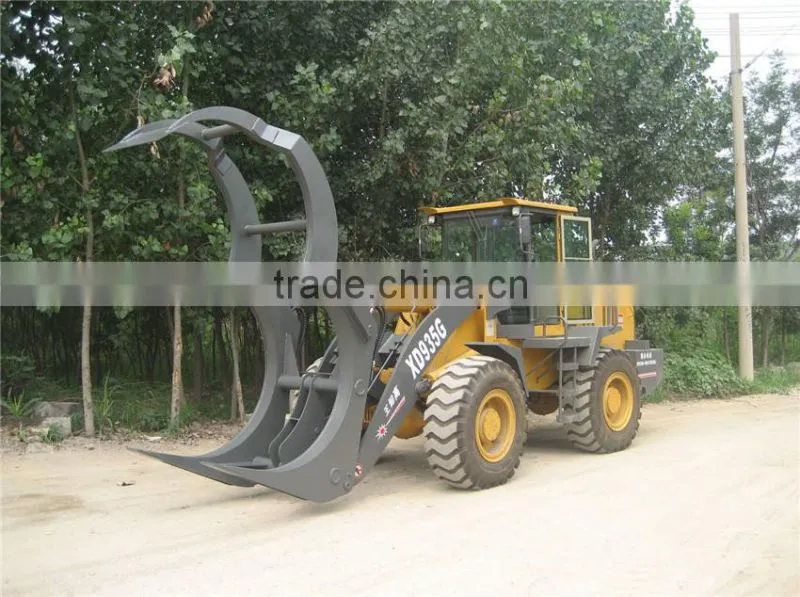

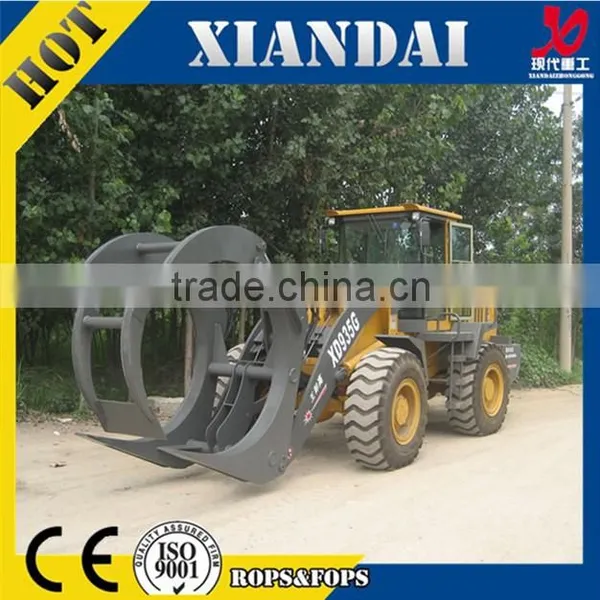

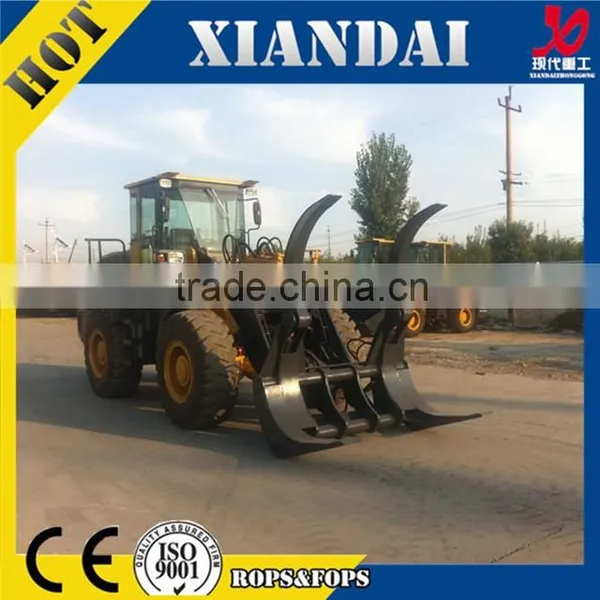

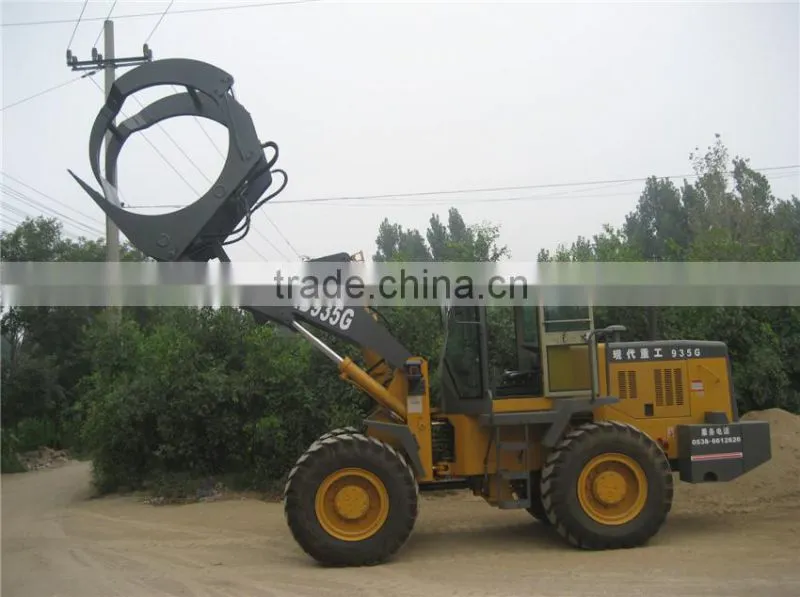

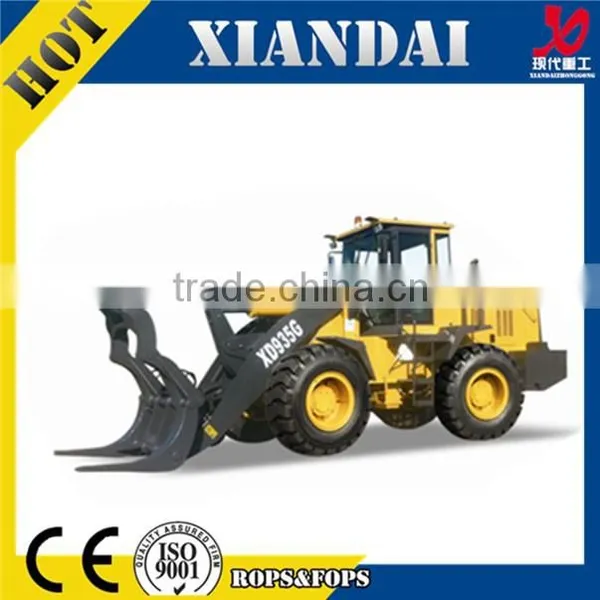

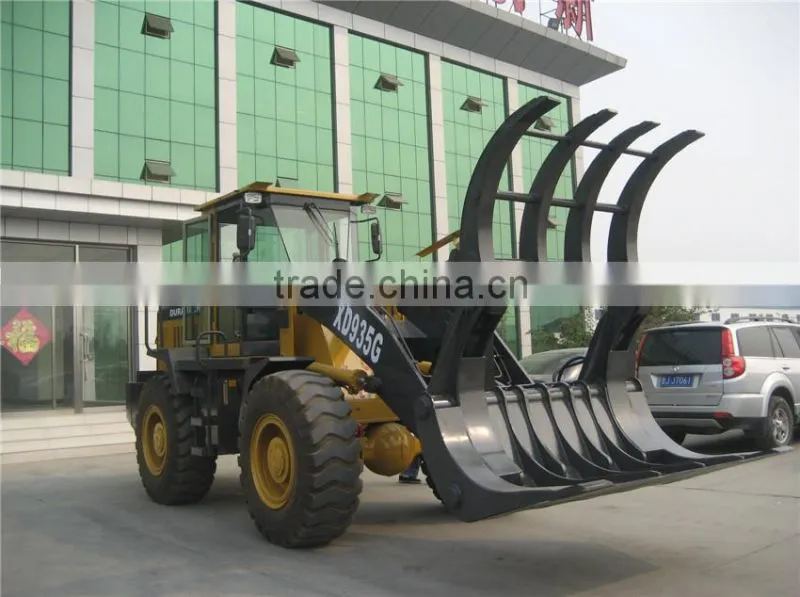

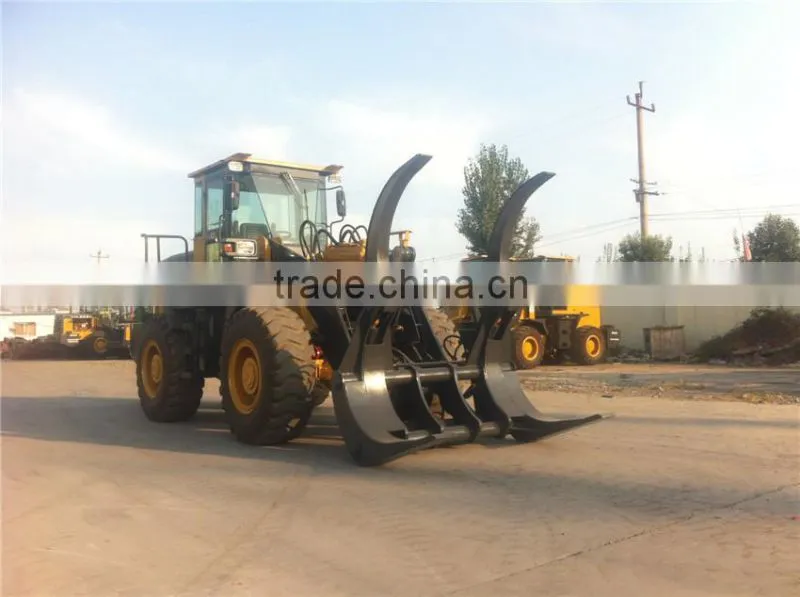

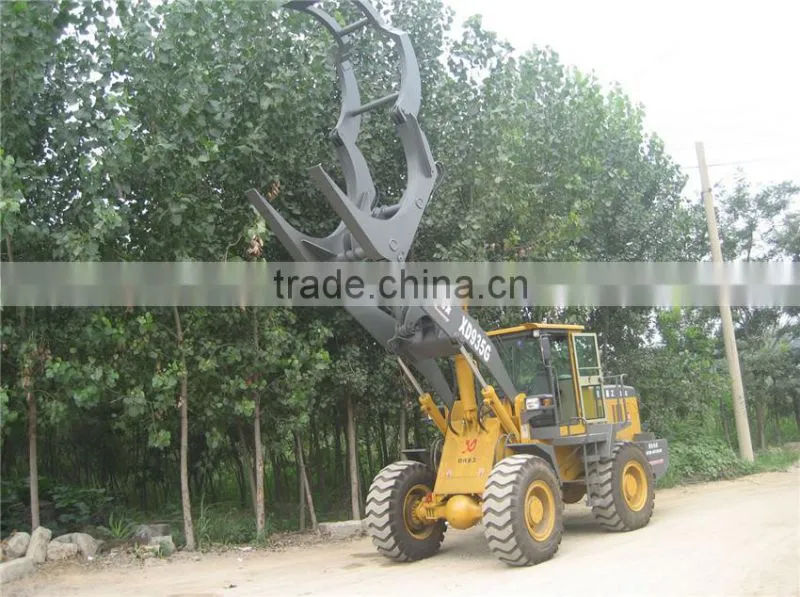

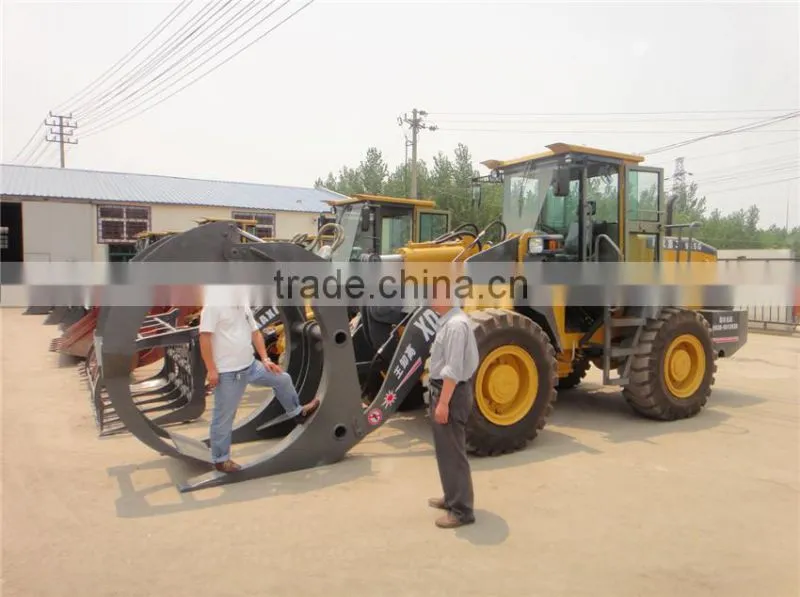

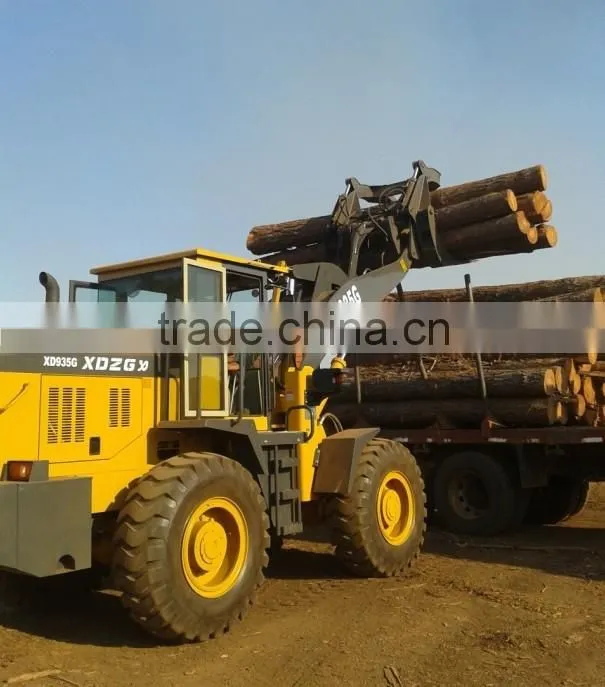

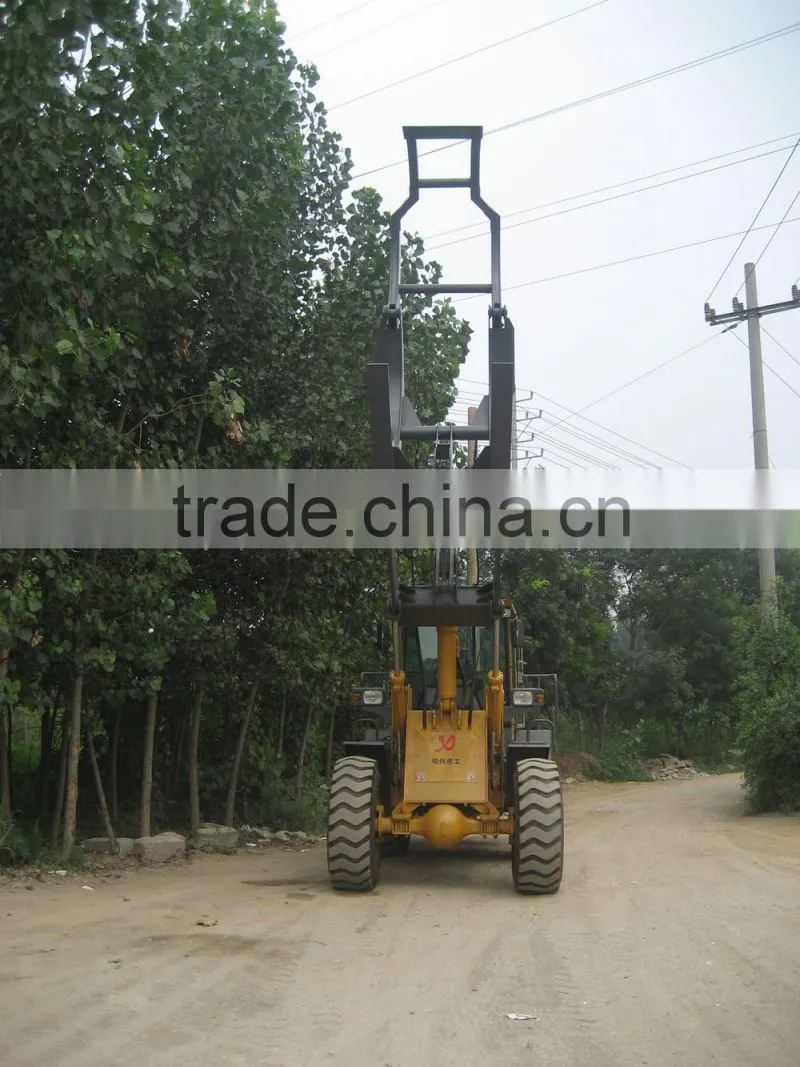

XD935G 3.0T (Log Loader Wood Grab Loader )with CE FOR SALE For Forest Field and Lumberyard

Name: XD935G 3.0T (Log Loader Wood Grab Loader )with CE FOR SALE For Forest Field and Lumberyard
Brand: XIANDAI
SKU: 102089097

US$ 25,000 - 35,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

XIANDAI

Model Number:

XD935G Timber Wheel Loader

Taian Modern Heavy Industries Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name XIANDAI

Model Number XD935G Timber Wheel Loader

Condition New

After-sales Service Provided Overseas third-party support available

Specifications

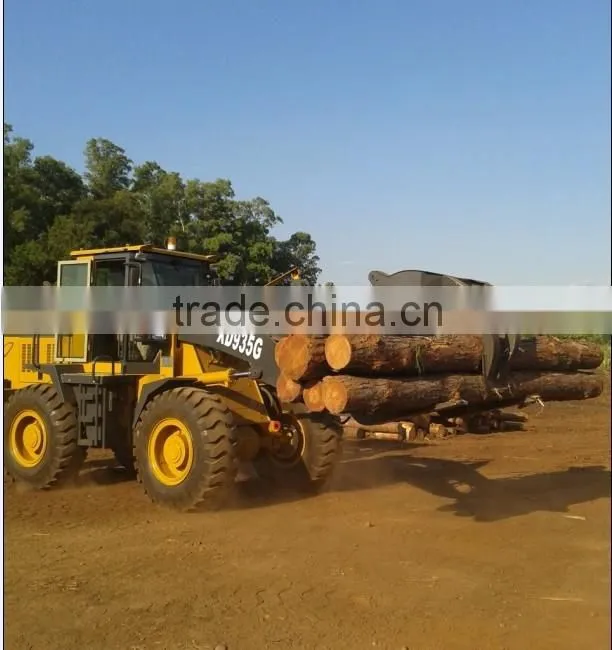

One of our famous product for Lumberyard and all kins of forest field.

Product Description

I.Features&Benefits

1. Adopting soft shaft transmission control system, make it more easy to control.

2. Adopting bumping bag spring seat to let drivers feel more comfortable.

3.Low-pressure, wide base tires have been adopted to achieve excellent off-road function.

4. With the highest dumping height 3.26m which can meet most kinds of truck’s loading.

5. DEUTZ, CUMMINS and LOVOL PERKINS(Europe IIIA) engines are optional.

II.Specifications

Model	XD935G Wood Grabber
Main specifications
Opening diameter(mm )			1320-2450
Rated load (t)			3.0
Operation Weight (t)			10.0
Lifting time of the arms (s)			≤6
The sum of three items(s)			≤11
Forward gear(km/h)			I 0-7.0 II 0-12.5 III 0-21 IV 0-35
Reverse gear(km/h)			I 0-14 II 0-25
Max. climbing gradient (°)			30°
Dimensions
Overall dimension (L×W×H mm)				7140×2400×3120
Wheel base (mm)				2600
Wheel tread(mm)				1800
Max. dumping height(mm)				3260-4500
Dumping reach (mm)				≥1180
Diesel engine
Engine model	YC6B125-T20
Engine type	In-line,water-cooling,4-stroke,6 cylinders, direct-injection
Rated power(kw)	92
Rated speed (r/min)	2200
Total exhaust of cylinder(L)	6.5
Type of starting	Electric start
Transmission system
Torque converter
Model	YJ315
Type	Single stage, three elements
Gearbox
Model	BYD4208
Type	Fixed counter-shaft, power-shift
Axle and tire
Type of main reducer	Spiral bevel gear,single stage
Type of final reducer	Single stage planetary
Size of tire	17.5-25
Working device of hydraulic system
Model of working pump		CBG2100
Nominal displacement(ml/r)		100
Working system pressure(Mpa)		20
Multi-way directional valve		DF25.2
Rated flow(L/min)		160
Steering system
Type	Load-sensing hydraulic steering
Displacement(ml/r)	55
Max input pressure(Mpa)	11
Brake system
Type of traveling brake	Air over hydraulic brake
Type of parking brake	Band brake
